5175314 D2-10C 10K Capacity 2-Post / Clearfloor / Incl. Stack Pads & Adapters

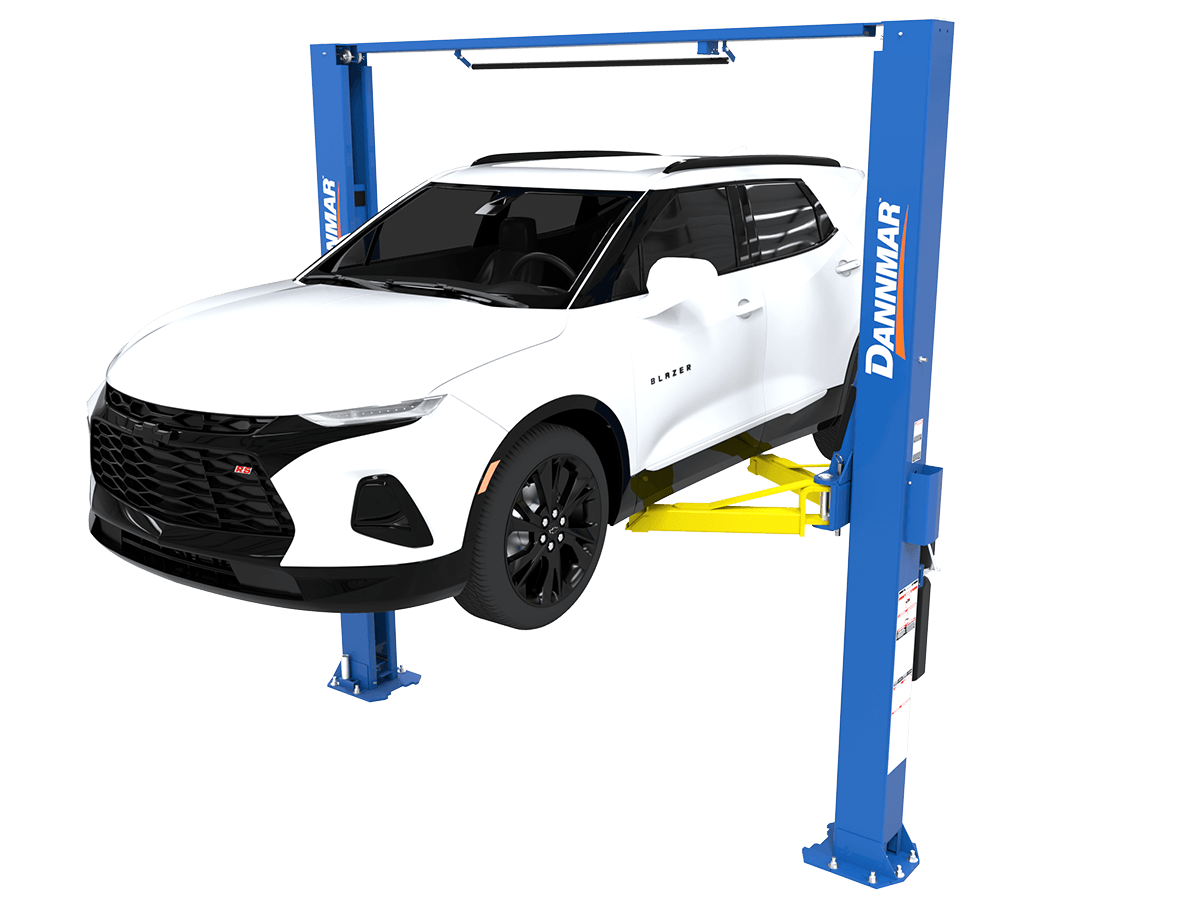

D2-10C SYMMETRIC TWO-POST LIFT
The Dannmar D2-10C two-post lift is a great choice in direct-drive lifting technology. Dannmar’s high-quality car lift utilizes the best components with the proven design to offer you a 10,000 lb. capacity lift.
Features
- Electric / hydraulic power system
- Large, 17" x 19" A36 steel base plate
- Self-lubricating dura-glide UHMW polyethylene bearings
- Safety locks in each column spaced every 3”
- Automatic arm restraints
- Heavy-duty 1/2" aircraft-quality equalizer cables
- Oversized cable sheave diameter reduces cable fatigue
- 4-piece 63 mm stackable adapter set comes standard
- Padded overhead safety shutoff bar
- Telescoping arm design for more versatile arm positioning
- Single-point safety release
- Drop-end arms provide a lower pad height
- Dual hydraulic direct-drive cylinders
- Oversized 53" tall carriage for superior strength
- Versatile drop-in contact pads with stackable adapters.
- ETL Approved
| Style | Symmetric |
| SKU# | 5175313 |
| Lifting Capacity | 10,000 lbs. (4,536 kg) |
| A - Lowered Height + Pad | 5" (127 mm) |
| B - Max. Lift Height (Top Lock) | 78.5" (1,994 mm) |
| C - Max. Rise | 69" (1,753 mm) |
| D - Height Overall | 145" (3,683 mm) |
| E - Width Overall | 145.25" (3,690 mm) |
| F - Width Outside Columns | 137.25" (3,486 mm) |
| G - Width Inside Columns | 118.25" (3,004 mm) |
| H - Drive-Thru Clearance | 106" (2,692 mm) |
| I - Floor to Top Switch | 141" (3,581 mm) |
| J - Arm Reach | 32.25" (819 mm) - 52.5” (1,334 mm) |
| Max. Load per Arm | 2,500 lbs. (1,134 kg) |
| Time to Full Rise | 45 seconds |
| Noise | 45 dB |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Shipping Weight | 1,674 lbs. (759.3 kgs) |
| Shipping Dimensions |
152" x 23" x 35" (3,860 mm x 597 mm x 889 mm)
|
