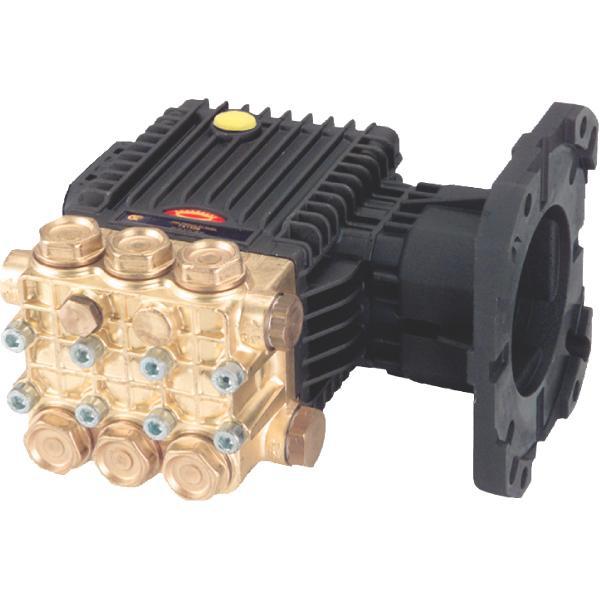

Gas fange (SAE J609) hollow shaft - 1/2” BSP-F inlet, 3/8” BSP-F outlet
- SAE J609 flange for direct couple to gasoline engines
- Set screw for key way
- Oversized bearings
- Longer life low and high pressure seals
- Forged brass manifold with exclusive lifetime warranty.
SPECIFICATIONS:
- Triplex Plunger Pump
- Maximum volume: 4.0 GPM
- Maximum Discharge Pressure: 3000 PSI
- Horsepower: 12.3 GHP
- Maximum Pump Speed: 3400 RPM
- Bore: 15mm
- Stroke: 10mm
- Crankcase Oil Capacity: 14 oz.
- Maximum Fluid Temperature: 165 F.
- Inlet Port Thread: 1/2" FPT
- Discharge Port Thread: 3/8" FPT
- Shaft Diameter: 1"
- Weight: 18 lbs
- Dimensions: 8.4"x8.4"x6.5"
