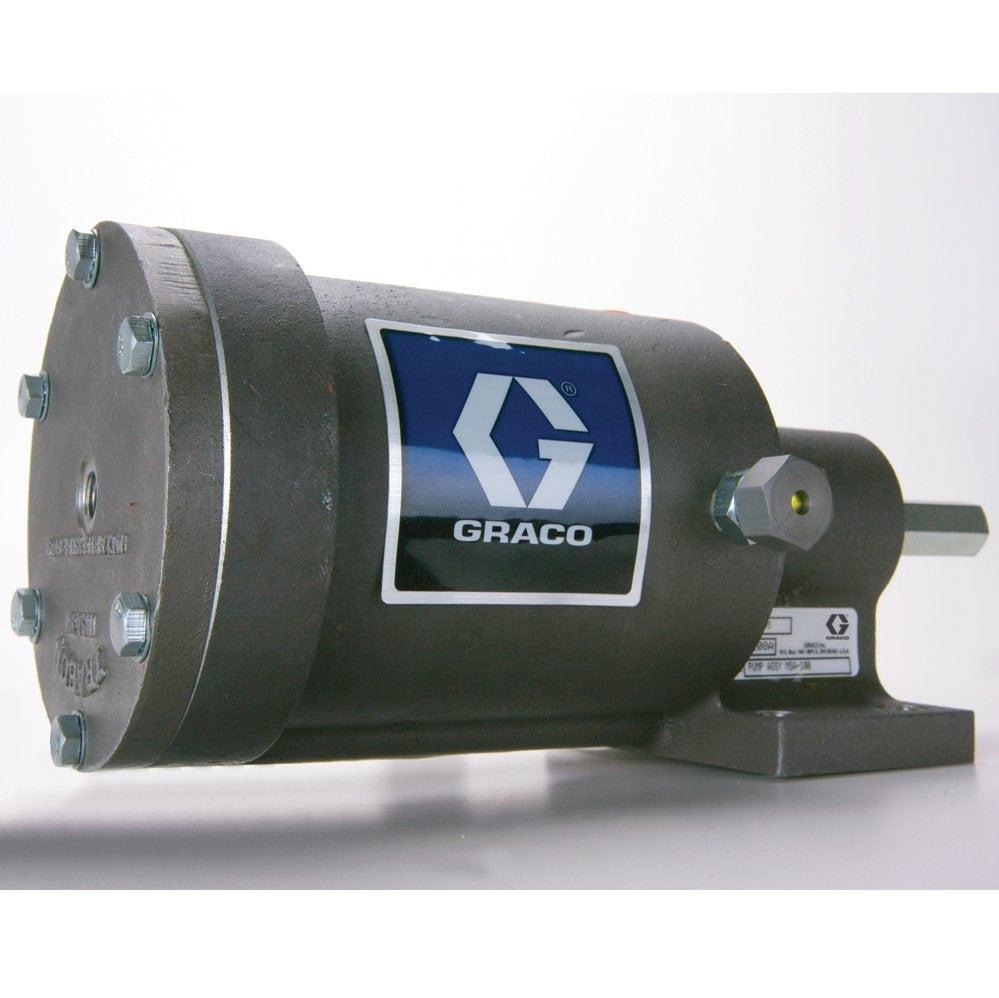

MSA Series products are used together with main lubrication supply lines where the pump is fed directly with no additional reservoir required. No reservoir makes the MSA Series ideal for locations that are difficult to reach or undesirable to enter. Use the MSA-100 when high operating pressures and larger outputs are required.
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
- Ideal for applications where space is a premium
- Handles high pressure lubricant feed of direct line intake
- Used with or without a reservoir for the ultimate flexibility
- Lubriquip part number 140-000-171
UPC Product: 00633955348745
Family Code: FAMMPM
Unit of Measure: EA
Height:
12 IN
| 30.48 CM
Length:
13.2 IN
| 33.528 CM
Width:
12 IN
| 30.48 CM
Volume:
1.1 FT3
| .031 M3
Chargeable Weight:
16 LBS
| 7.26 KG
Technical Specifications
| Type | Pneumatic Piston Pump |
|---|---|
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Type | NPSF |
| Application | In-Plant Machinery |
| Compatible Material | Oil, Grease |
| Fluid Outlet Size (in) | 0.25 |
| Fluid Outlet Size (mm) | 6.3500 |
| Fluid Outlet Thread Type | NPSF |
| Material | Aluminum |
| Maximum Air Inlet Pressure (bar) | 9.65 |
| Maximum Air Inlet Pressure (kPa) | 965 |
| Maximum Air Inlet Pressure (psi) | 140 |
| Maximum Cycle Rate (CPM) | 30 |
| Maximum Fluid Output Pressure (psi) | 3000 |
| Maximum NLGI Grade | #2 |
| Maximum Working Pressure (bar) | 206.8 |
| Maximum Working Pressure (kPa) | 20680 |
| Maximum Working Pressure (psi) | 3000 |
| Model | MSA |
| Power Type | Pneumatic |
| Series | 100 |
| Compatible Metering Device | Series Progressive |
| Maximum Fill Inlet Pressure (bar) | 34.5 |
| Maximum Fill Inlet Pressure (kPa) | 3450 |
| Maximum Fill Inlet Pressure (psi) | 500 |
| Overall Depth (cm) | 17.6 |
| Overall Depth (in) | 6.94 |
| Overall Depth (mm) | 176 |
| Overall Height (cm) | 14.5 |
| Overall Height (in) | 5.69 |
| Overall Height (mm) | 145 |
| Overall Width (cm) | 32.6 |
| Overall Width (in) | 12.83 |
| Overall Width (mm) | 326 |
| Maximum Working Pressure (MPa) | 20.7 |
| Minimum Air Inlet Pressure (psi) | 60 |
| maximum_fluid_output_pressure_bar | 207 |
