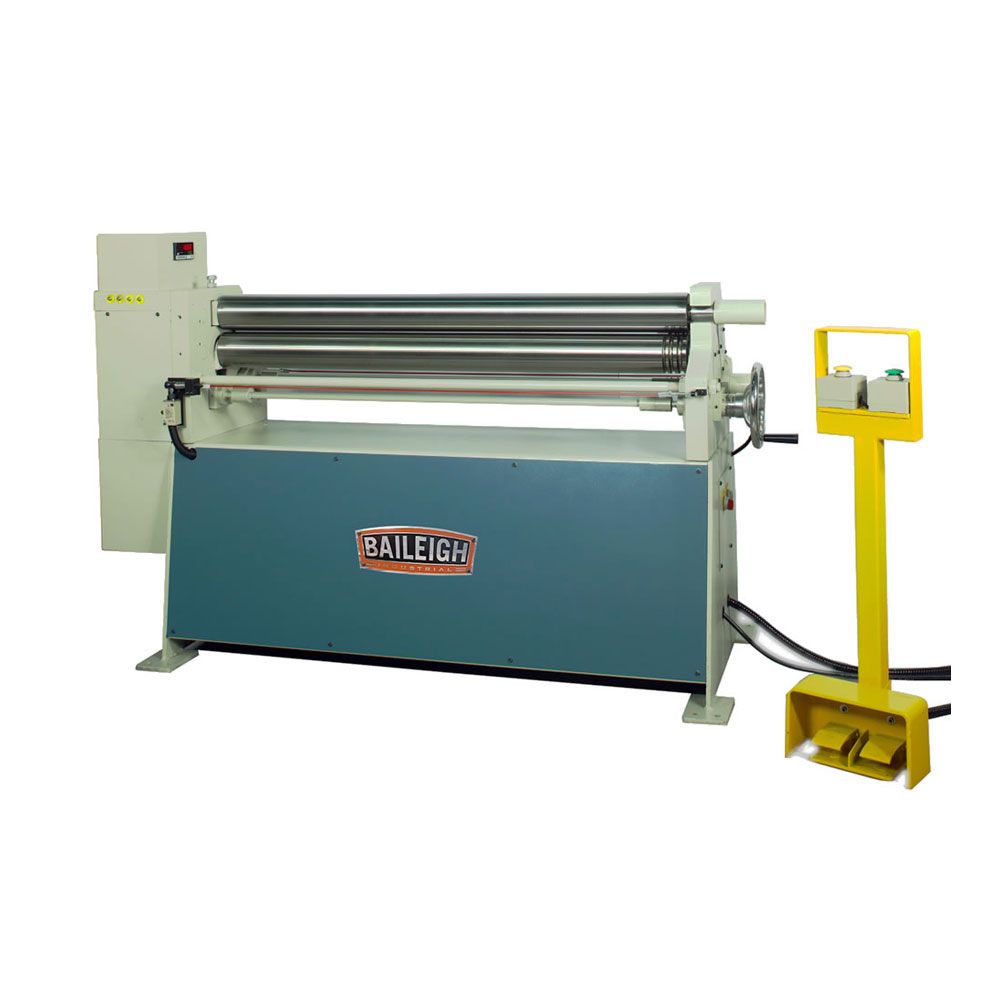

Built with a 2 hp motor, hydraulically controlled back roll, and a steel frame, this electrical plate roller lets you tackle thicker gauges without getting bogged down. It comes with a DRO.
Baileigh PR-413 Plate Roll Features:
- 4’ forming width.
- Bends 13 gauge mild steel over its whole width.
- 2 hp motor runs on 220-volt single-phase power, so you can use it almost anywhere.
- Convenient control pedestal has forward and reverse foot pedals and buttons to control the up and down movement of the back roll.
- Industrial-grade hydraulic system allows the back roll to move up and down and tilt left and right for coning.
- Digital readout gives the position of the back roll for easy repeatability.
- Full steel frame, machined to exacting tolerances, maintains accuracy for many years of use at full capacity.
- Includes 3 wire grooves for forming rings.
- Emergency stop cable on the front and back of the machine for safety.
- Covered by a 1-year parts warranty.
Baileigh PR-413 Plate Roll Specifications:
- Item Number: PR-413
- Forming Width: 48"
- Roll Speed: 6 rpm.
- Upper Roll Dia.: 3.50"
- Roll Adjustment Back: Hydraulic
- Minimum Forming Dia: 5.25"
- Motor: 2 hp
- Wire Grooves: Yes
- Capacity (Mild Steel): 13 ga. (.090")
- Power: 220V / 1-phase
- Shipping Weight: 1510lbs
- Shipping Dimensions (Inches): 84x33x54
