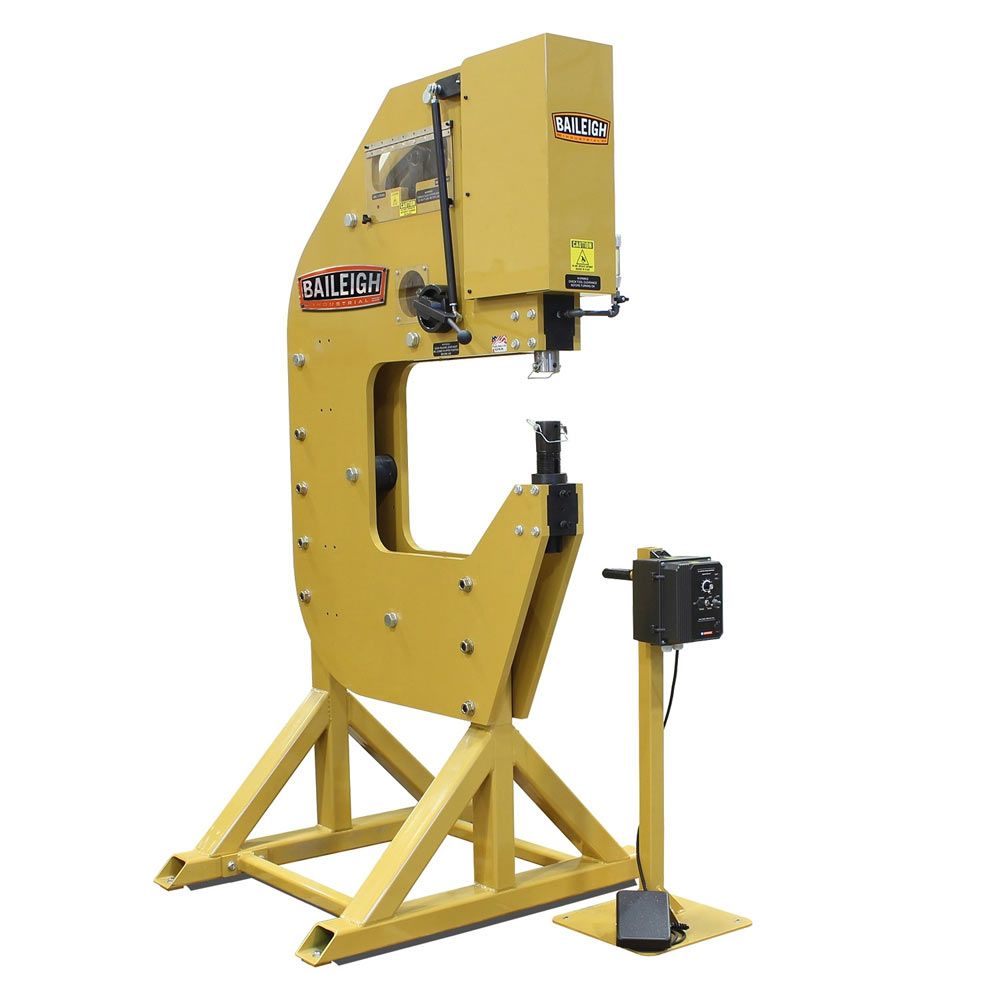

The PH-28HD-VS power hammer can hit harder and move metal faster than most hammers its size. This USA-made machine lets you shape multiple sheets at once, then planish them out.
Baileigh PH-28HD-VS Power Hammer Features:
- 28" throat with deep cutout designed for fenders
- Large 14 gauge mild steel capacity
- Variable speed from 0 to 1,000 beats per minute
- 3 hp motor runs on 220-volt single-phase power
- Developed over 20 years of research to find what’s most important to metal shapers
- Hits up to 75% harder than its predecessor, the MH-19
- Incorporates Dupont linkage (also used on our massive MH-37HD) to shape heavier gauges of steel
- Quick-release design lets you get the tooling out of the way to add or remove your panel
- Switch between 3 fixed stroke settings on the fly: ¼”, ½”, ¾”
- Adjust the lower ram up or down via a large acme thread, so you won’t need to shim if different tool thicknesses are required
- Simple, proven mechanism uses easily replaceable, off-the-shelf die springs
- Floating chain and sprocket setup eliminates the leather strap commonly found on legacy hammers
- You can add an optional planishing hammer attachment to the side of this power hammer
- Rigid 1” plate steel frame ensures high-quality, controllable shaping force and won’t buckle under the heavy hits
- Portable pedestal raises the working height and allows better visibility of the hit mark
- Covered by a 1-year parts warrant
Baileigh PH-28HD-VS Specifications:
- Item Number: PH-28HD-VS
- Country of Manufacture: United States
- Motor Hp: 3
- Speed: 0 - 1000 beats / min (Variable)
- Mild Steel Capacity: 14 ga.
- Tooling Height Adjustment: 2"
- Throat Depth: 28"
- Working Height: 62.5"
- Aluminum Capacity: 10 ga.
- Length Of Stroke Adj: 3 Fixed Lengths: 1/4", 1/2", 3/4"
- Power: 220V / 1-phase
