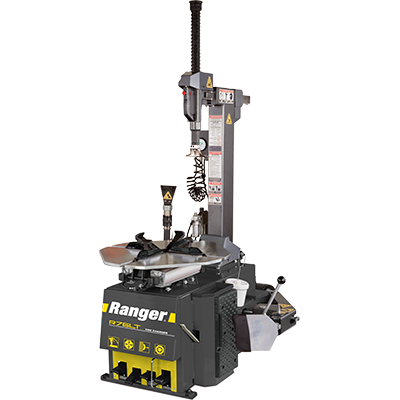

5140144 R76LT, 220V, GR-YEL RANGER Tilt Back Tire Changer / 208-240V, 1-Ph.
If you like the versatility of the Ranger R76ATR but don't need its assist-tower feature, then Ranger's R76LT is a slightly stripped-down version that still performs rapid tire changes. Commonly found in general repair shops that see a wide range of tires, such as racing and light truck tires.
Features
- 4 Clamps (Internal / External)
- Dual Pneumatic Cylinders
- Adjustable Pneumatic Blade
- Tilt-Back Tower Design
- Vertical Shaft / Tool Head Positioning
- Inflation System
- Inflation Gauge & Integrated Air Dump Valve
- Inflation Pressure Regulator/Limiter
- Water Filter
- Oiler / Lubricator
- Air Regulator
- Bead Tool/Tire Iron
- Alloy-Steel Mount-Demount Head
- Nylon Mount-Demount Head
- Large Soap Bucket
- Soap Brush
- Powerful, TurboBlast™ Bead Seating System
- Tool Tray / Bin Storage
- Motorcycle Turntable Clamps (optional)
| Style: | Tilt-Back Tower Design |
| Assist | |
| Assist Type: | Single-Tower Assist |
| Speed | |
| Speed: | Standard |
| Motor | 3 HP (220 VAC 50-60 HZ) |
| Drive System Type | Electric / Air |
| Air Requirement | 110-175 PSI (8-12 BAR) |
| Wheel Clamping Method | 4 Clamps - Internal / External |
| Table Clamping System | Dual Pneumatic Cylinders |
| Bead Breaking System | Adjustable Pneumatic Blade |
| Tower Design | Tilt-Back |
| Vertical Shaft / Tool Head | Pneumatic / Locking |
| Powerful Bead Seating System | TurboBlast™ |
| Internal Rim Clamping Capacity | 10” – 30” (254 mm - 762 mm) |
| External Rim Clamping Capacity | 9” – 28” (229 mm - 711 mm) |
| Turntable Tire Width Capacity (Mounting) | 4” – 18” (102 mm – 457 mm) |
| Bead Breaker Tire Width Capacity (Demounting) | 1.5” – 16” (38 mm – 406 mm) |
| Maximum Tire Diameter | 43” (1,092 mm) |
| Shipping Weight | 720 lbs. (326 Kg) |
| Shipping Dimensions | 52'' x 40'' x 40'' (1,320 mm x 1,016 mm x 1,016 mm) |
