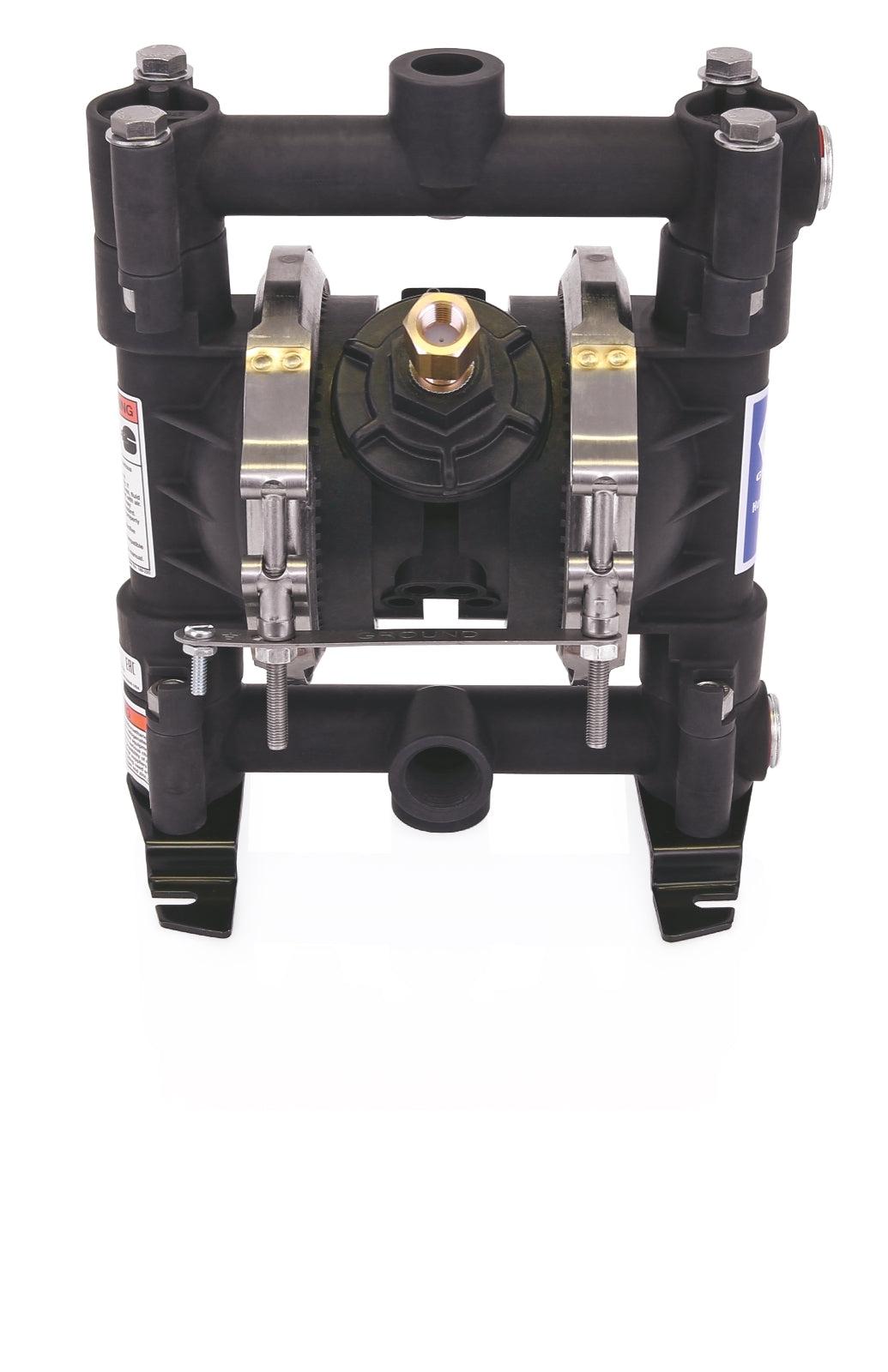

The Husky 716 air operated diaphragm pump delivers up to 60.6 lpm (16 gpm) of fluid and features centre and end porting options.
Ideal for bulk antifreeze and windshield solvent transfer.
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
- Centre- and end-porting
- No mechanical seals which causes fluid leaks or failures
- Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Easy-to-service air valve and ball checks
- 19.05 mm (3/4 in.) centre- and end-porting
- No seals to leak or fail
- Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Easy-to-service air valve and ball checks
UPC Product: 00633955648074
Family Code: FAMPDI
Unit of Measure: EA
Height:
0 IN
| 0 CM
Length:
0 IN
| 0 CM
Width:
0 IN
| 0 CM
Volume:
0 M3
| 0 FT3
Chargeable Weight:
40.28 LBS
| 18.27 KG
Technical Specifications
| Application | Industrial |
|---|---|
| Compatible Material | Antifreeze, Windshield Washer Fluid |
| Fluid Inlet Size (cm) | 1.9050 |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Size (mm) | 19.05 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (cm) | 1.905 |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Size (mm) | 19.05 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| For Use With | 防冻剂，挡风玻璃溶剂, Anti-Freeze, Windshield Solvent, Anti-Freeze, Windshield Solvent, Antigel, solvant pour pare-brise, 부동액, 윈드실드 솔벤트, Frostschutzmittel, Windschutzscheiben-Lösungsmittel, Antivries, voorruitoplosmiddel, Antigelo, solvente lavavetri |
| Includes | 716 AODD 泵, 716 AODD Pump, 716 AODD Pump, Pompe AODD 716 , 716 AODD 펌프, 716 Luftbetriebene Doppelmembran-Pumpe, Druckluftregler, Materialanschlussschlauch, Druckluftverbindungsschlauch, Druckluftabsperrventil, Wandmontagewinkel, Ansaug-Satz, 716 AODD-pomp, Pompa AODD 716, 空气调压阀, Air Regulator, Air Regulator, régulateur d’air , 에어 레귤레이터, thermischer Entlastungssatz, luchtregelaar, regolatore dell'aria, 流体连接软管, Fluid Connect Hose, Fluid Connect Hose, flexible de raccordement du fluide , 유체 연결 호스, vloeistofverbindingsslang, tubo flessibile di collegamento del fluido, 空气连接软管, Air Connect Hose, Air Connect Hose, flexible de raccordement d’air , 에어 연결 호스, luchtverbindingsslang, tubo flessibile di collegamento dell'aria, 空气截止阀, Air Shut-Off Valve, Air Shut-Off Valve, vanne d’arrêt d’air , 에어 차단 밸브, luchtafsluitklep, valvola di intercettazione dell'aria, 壁式支架, Wall Mount Bracket, Wall Mount Bracket, support pour montage mural , 벽 장착형 브래킷, wandmontagebeugel, staffa di montaggio a parete, 吸料配件包, Suction Kit, Suction Kit, kit d’aspiration , 흡입 키트, aanzuigset, kit di aspirazione, 散热盘配件包, Thermal Relief Kit, Thermal Relief Kit, kits de décompression thermique, 열 부하 경감 키트, thermische ontlastingsset, kit di scarico termico |
| Inlet Thread Gender | Female |
| Inlet Thread Type | NPT |
| Material | Aluminum, Buna-N |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (kPa) | 70 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 400 |
| Maximum Flow Rate (GPM) | 16 |
| Maximum Fluid Pressure (bar) | 7 |
| Maximum Fluid Pressure (kPa) | 70 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (cm) | 0.2381 |
| Maximum Solid Size (in) | 0.09375 |
| Maximum Solid Size (mm) | 2.3813 |
| Series | 716 |
| Type | Diaphragm Pump Package |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Model | Husky |
