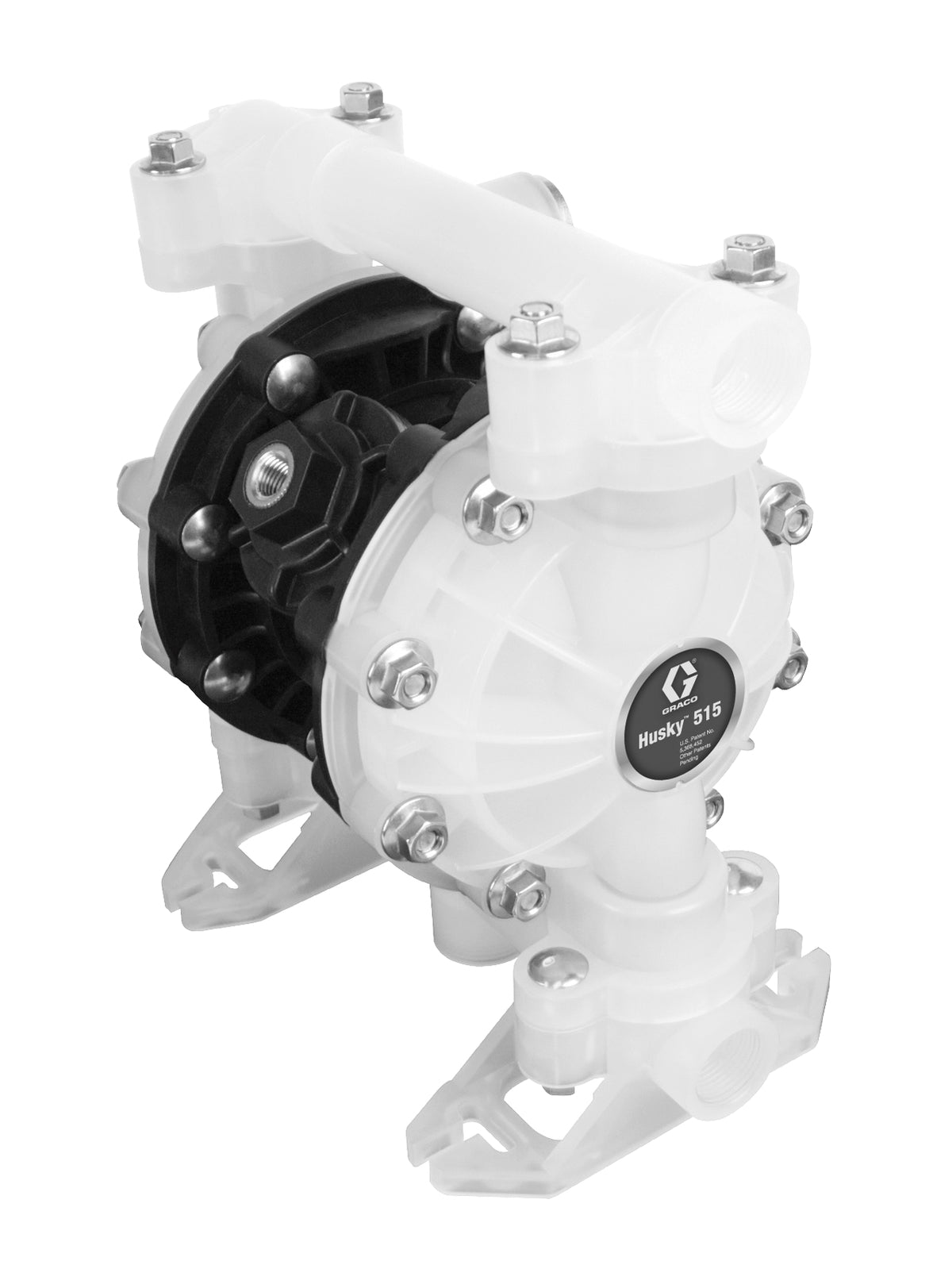

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
- Center and end porting options.
- No mechanical seals to cause fluid leaks or failures
- Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Easy-to-service air valve and ball checks
- Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
- Split manifold option to pump multiple fluids without mixing
- Delivery up to 15 gpm (56.7 lpm)
- Easy-to-service air valve and ball checks
- Reliable air valve for years of dependable performance
UPC Product: 00633955933514
Family Code: FAMAOD
Unit of Measure: EA
Height:
0 IN
| 0 CM
Length:
0 IN
| 0 CM
Width:
0 IN
| 0 CM
Volume:
0 FT3
| 0 M3
Chargeable Weight:
18 LBS
| 8.16 KG
Technical Specifications
| Application | Industrial |
|---|---|
| Compatible Material | Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink |
| Fluid Inlet Size (cm) | 1.9050 |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Size (mm) | 19.05 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Includes | 塞子底座, バングベース, Bung Base, 마개 베이스, 不锈钢管, ステンレス鋼チューブ, Stainless Steel Tube, 스테인리스강 튜브 |
| Inlet Size (cm) | 0.635 |
| Inlet Size (in) | 1/4 |
| Inlet Size (mm) | 6.35 |
| Inlet Thread Gender | Female |
| Inlet Thread Type | NPT |
| Material | Acetal |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (kPa) | 70 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 400 |
| Maximum Flow Rate (GPM) | 12 |
| Maximum Fluid Pressure (bar) | 7 |
| Maximum Fluid Pressure (kPa) | 70 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Solid Size (cm) | 0.2388 |
| Maximum Solid Size (in) | 0.094 |
| Maximum Solid Size (mm) | 2.3876 |
| Motor Type | Pneumatic |
| Number of Pieces | 2 |
| Series | 515 |
| Type | Pneumatic Diaphragm Pump Package |
| Manifold Configuration | Split Port |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Diaphragm Material | PTFE |
| Ball Material | PTFE |
| Model | Husky |
