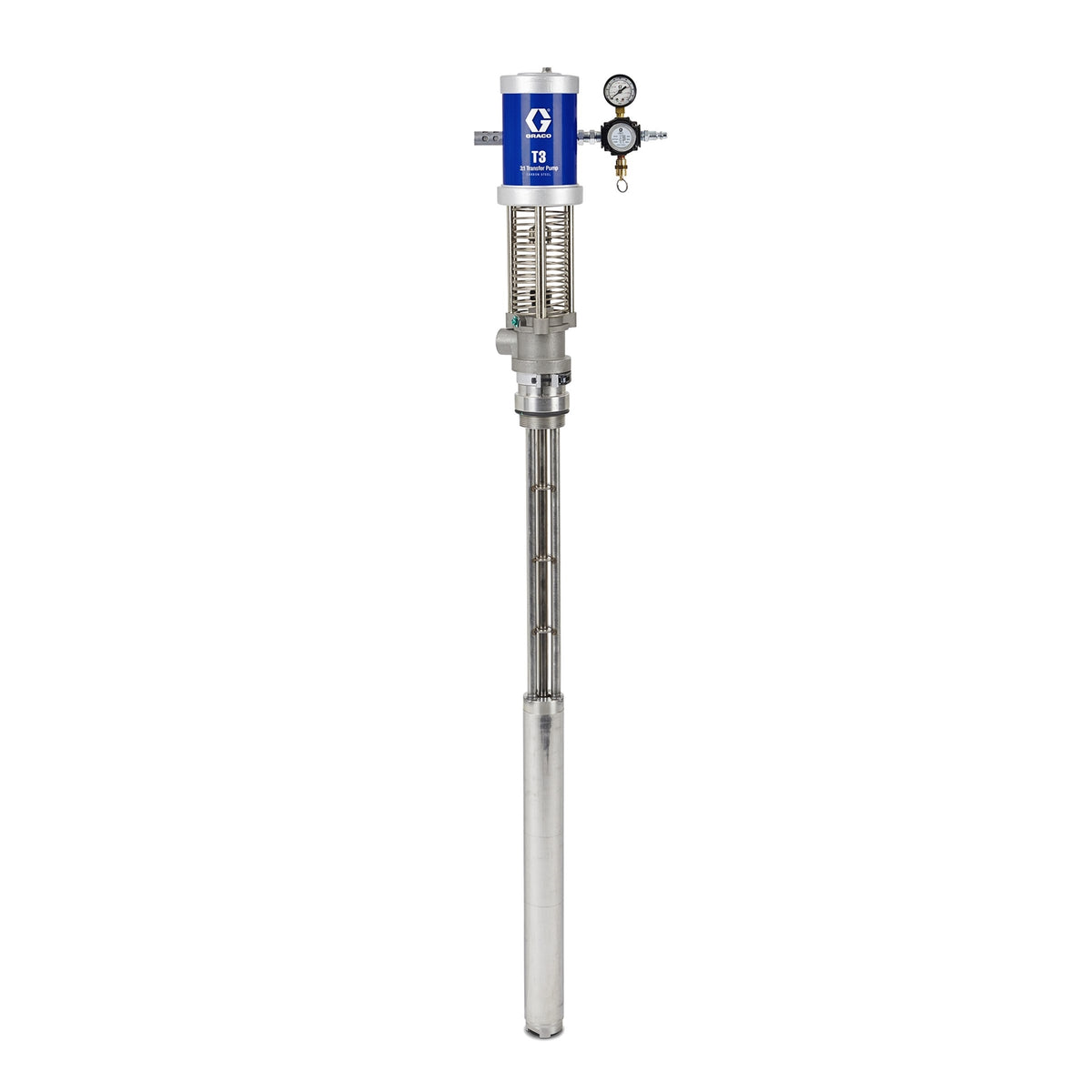

Transfer Pumps are required to move A and B materials to the Reactor Spray Systems. The T3 Transfer Pump combines Graco’s proven Merkur air-motor and popular T2 stainless steel lower. The T3 is a 3:1 ratio pump – using less air pressure to provide the same fluid pressure required.
UPC Product: 00755652409694
Family Code: FAMRSP
Unit of Measure: EA
Height:
7 IN
| 17.78 CM
Length:
59 IN
| 149.86 CM
Width:
8.5 IN
| 21.59 CM
Volume:
2.032 FT3
| .058 M3
Chargeable Weight:
12.7 KG
| 28 LBS
Technical Specifications
| Type | Pneumatic Piston Pump |
|---|---|
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Compatible Material | Polyurethane Foam, Polyurea |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Includes | 流体供应配件包, 液体供給キット, Fluid Supply Kit, Juego de suministro de fluido, 유체 공급 키트, 空气软管配件包, エアホースキット, Air Hose Kit, juego de manguera de aire, 에어 호스 키트 |
| Material | Stainless Steel |
| Maximum Air Inlet Pressure (bar) | 6.9 |
| Maximum Air Inlet Pressure (kPa) | 690 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Working Pressure (bar) | 21.7 |
| Maximum Working Pressure (kPa) | 2170 |
| Maximum Working Pressure (psi) | 315 |
| Model | T3 |
| Pump Ratio | 3:1 |
| Series | Stainless Steel |
| Weight (lb) | 22 |
| Wetted Material | Stainless Steel |
| Weight (kg) | 10 |
| Maximum Working Pressure (MPa) | 2.2 |
| Maximum Air Inlet Pressure (MPa) | 0.69 |
| Package Options | Bare |
