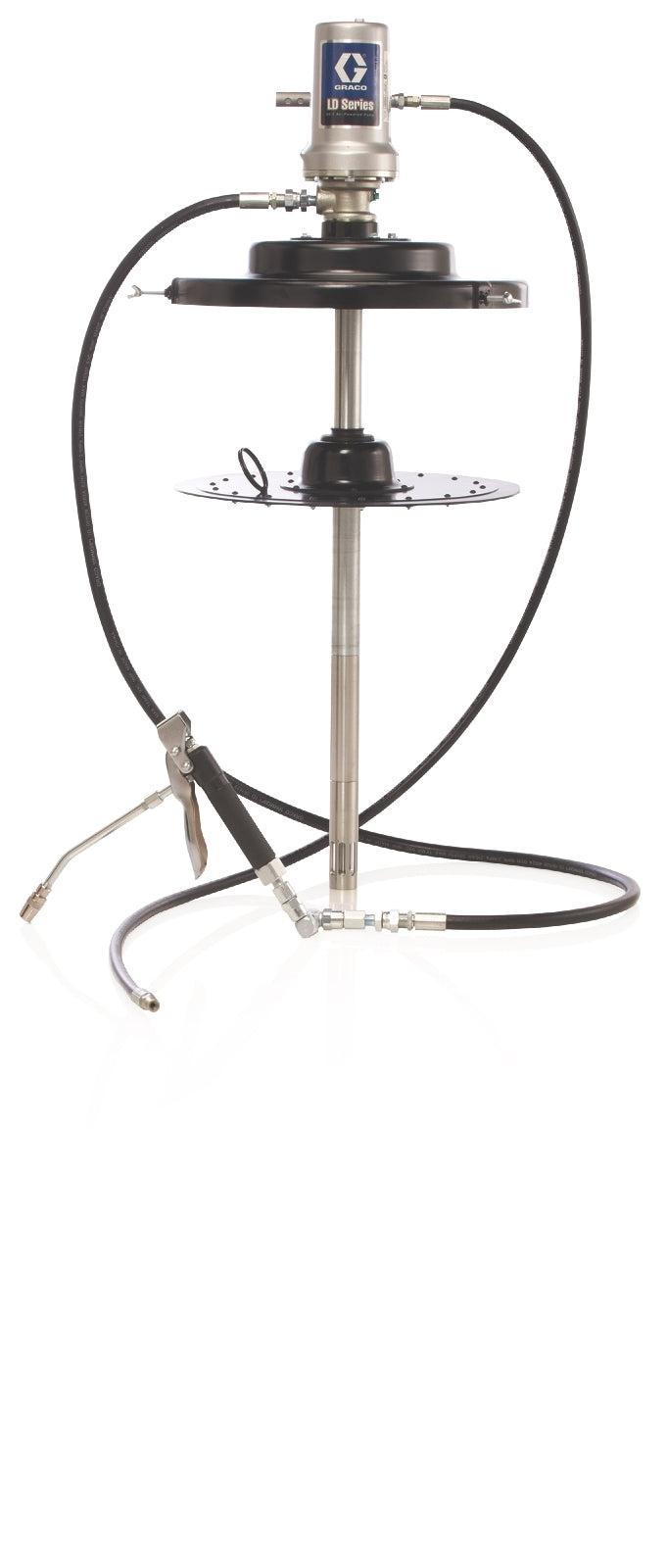

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume up to 7,000 lb./year (3175 kg./year) applications. LD pumps are fine-tuned for a compact, flexible and durable solution.
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
Three Inch Air Motor -Provides more power to create better flow.
Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
Pilot Valves -Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
UPC Product: 00633955618312
Family Code: FAMPPL
Unit of Measure: EA
Height:
0 CM
| 0 IN
Length:
0 IN
| 0 CM
Width:
0 IN
| 0 CM
Volume:
0 FT3
| 0 M3
Chargeable Weight:
0 LBS
| 0 KG
Technical Specifications
| Application | Grease |
|---|---|
| Compatible Material | Grease |
| Fluid Outlet Size (cm) | 0.635 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6.35 |
| Maximum Working Pressure (bar) | 345 |
| Maximum Working Pressure (kPa) | 34500 |
| Maximum Working Pressure (psi) | 5000 |
| Pump Ratio | 50:1 |
| Air Inlet Size (in) | 0.25 |
| Wetted Material | Steel, Brass, Nitrile Rubber, Polyurethane, UHMWPE, Acetal |
| Type | Piston Pump Package |
| Power Type | Pneumatic |
| Maximum Working Pressure (MPa) | 35 |
| Model | LD |
| Container Size (lb) | 110-240 |
