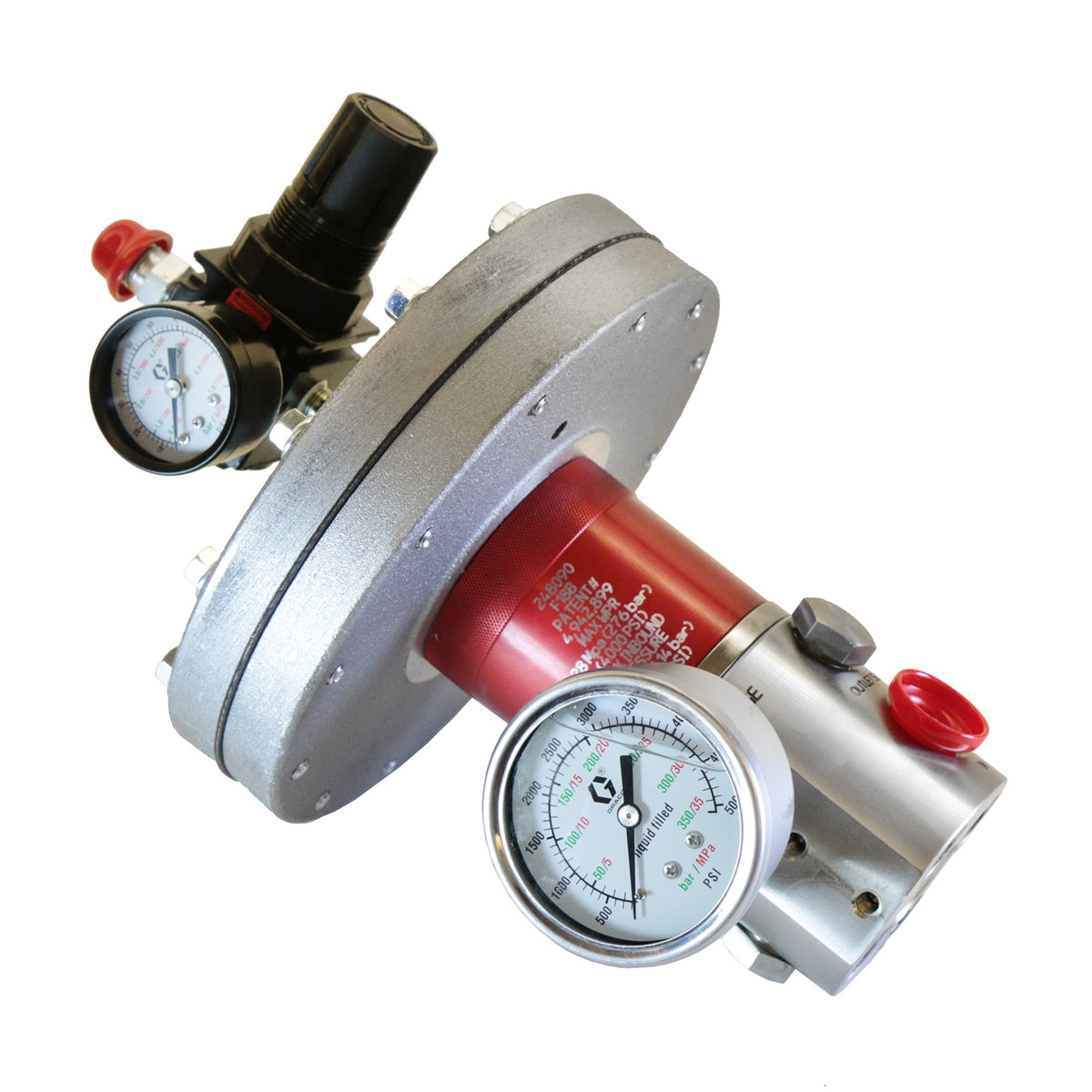

For a balanced fluid system, pressure control is essential. Graco provides a wide selection of fluid pressure regulators to keep your system functioning more productively by providing rugged, precise pressure regulation.
Feel free to call or chat with us for recommendations.
📦
Ships in 6-10 days, shipping times may vary
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
- Compatible with catalyst and waterborne materials
- Manual or air-operated
- Tungsten and carbide materials to resist wear
- Valve cartridge for quick cleaning and replacement
- Compact and lightweight – perfect for spray packages
UPC Product: 00633955038332
Family Code: FAMAPA
Unit of Measure: EA
Height:
18 IN
| 45.72 CM
Length:
10.8 IN
| 27.432 CM
Width:
8.4 IN
| 21.336 CM
Volume:
.95 FT3
| .027 M3
Chargeable Weight:
15.1 LBS
| 6.85 KG
Technical Specifications
| Actuation Type | Air |
|---|---|
| Compatible Material | Waterborne |
| Gauge Port Size (cm) | 0.635 |
| Gauge Port Size (in) | 1/4 |
| Gauge Port Size (mm) | 6.35 |
| Gauge Port Type | NPT |
| Inlet Size (cm) | 1.27 |
| Inlet Size (in) | 1/2 |
| Inlet Size (mm) | 12.7 |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 2 |
| Maximum Flow Rate (L/min) | 7.57 |
| Maximum Regulated Pressure (bar) | 276 |
| Maximum Regulated Pressure (kPa) | 27600 |
| Maximum Regulated Pressure (psi) | 4000 |
| Maximum Viscosity (cP) | 15000 |
| Maximum Working Pressure (bar) | 414 |
| Maximum Working Pressure (kPa) | 41400 |
| Maximum Working Pressure (psi) | 6000 |
| Minimum Regulated Pressure (bar) | 34 |
| Minimum Regulated Pressure (kPa) | 3400 |
| Minimum Regulated Pressure (psi) | 500 |
| Outlet Size (cm) | 1.27 |
| Outlet Size (in) | 1/2 |
| Outlet Size (mm) | 12.7 |
| Outlet Thread Type | NPT |
| Wetted Material | Stainless Steel, Passivated Stainless Steel, Nickel, Cobalt, Tungsten Carbide, PTFE |
| Application | Bonding, Sealing, Gasketing, Encapsulation, Thermal Management, Molding, Spray, Fluid Transfer, Unloading, Underfill, Infusion, Metering, Regulating |
| Type | Fluid Regulator |
| Flow Control Type | Regulation |
| Maximum Regulated Pressure (MPa) | 28 |
| Maximum Working Pressure (MPa) | 41 |
| Minimum Regulated Pressure (MPa) | 3.4 |
