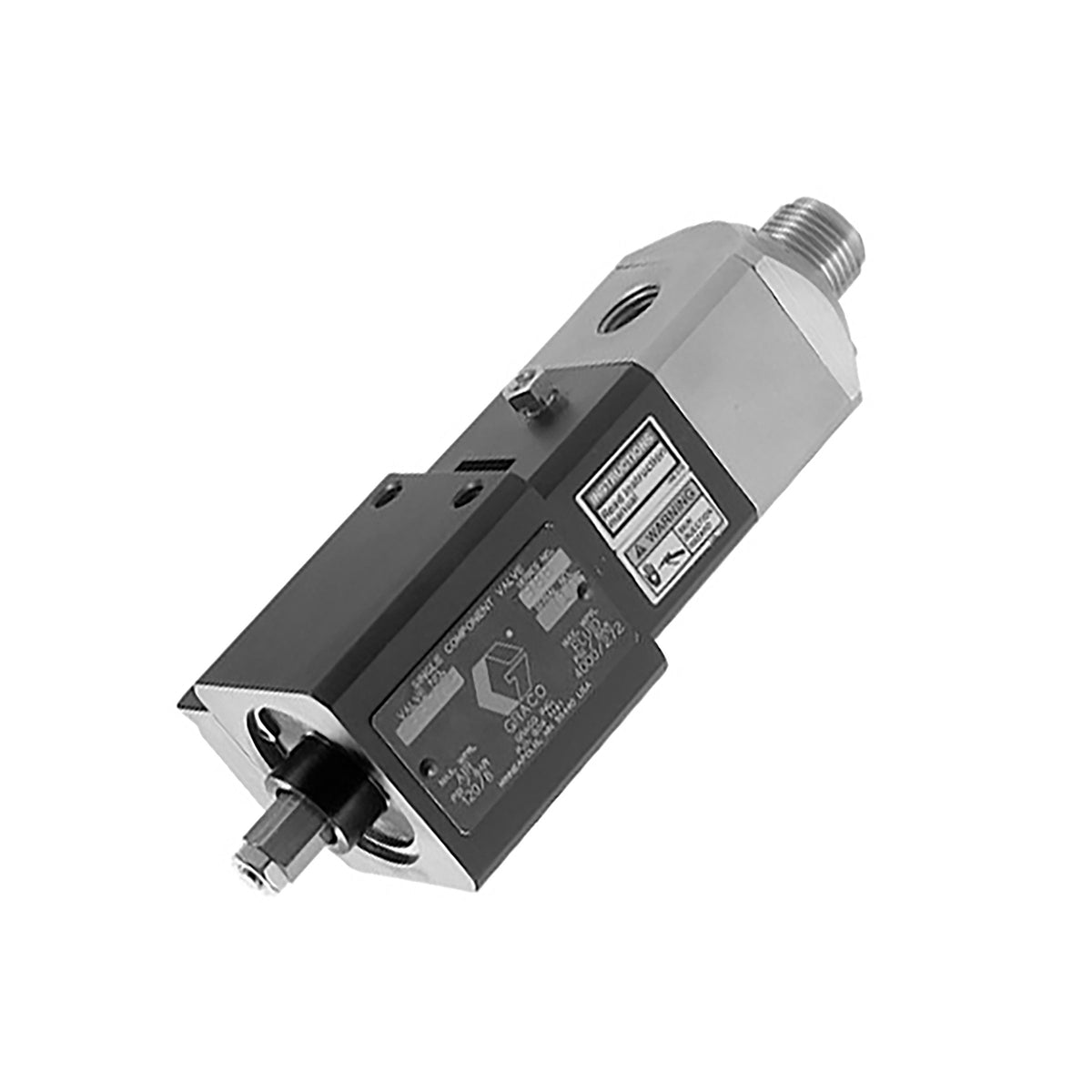

Precision Dispense Valve for Quality Bead Dispensing
Feel free to call or chat with us for recommendations.
📦
Ships in 6-10 days, shipping times may vary
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
Lightweight and compact
Designed for long service
SST wetted parts
UPC Product: 00633955836341
Family Code: FAMAPA
Unit of Measure: EA
Height:
8 IN
| 20.32 CM
Length:
9.7 IN
| 24.638 CM
Width:
4.9 IN
| 12.446 CM
Volume:
.22 FT3
| .006 M3
Chargeable Weight:
2.33 LBS
| 1.06 KG
Technical Specifications
| Air Inlet Size (in) | 1/8 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Compatible Material | Sealants, Adhesives |
| Fluid Inlet Size (cm) | 0.635 |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Maximum Viscosity (cP) | 1000000 |
| Maximum Working Pressure (bar) | 276 |
| Maximum Working Pressure (kg/cm²) | 281.2 |
| Maximum Working Pressure (kPa) | 27600 |
| Maximum Working Pressure (psi) | 4000 |
| Mount Hole Thread Gender | Female |
| Mount Hole Thread Type | Standard |
| Type | Dispense Valve |
| Gun Activation | Automatic |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation |
| Maximum Working Pressure (MPa) | 28 |
| Model | Ultra-Lite |
| Series | 1K |
