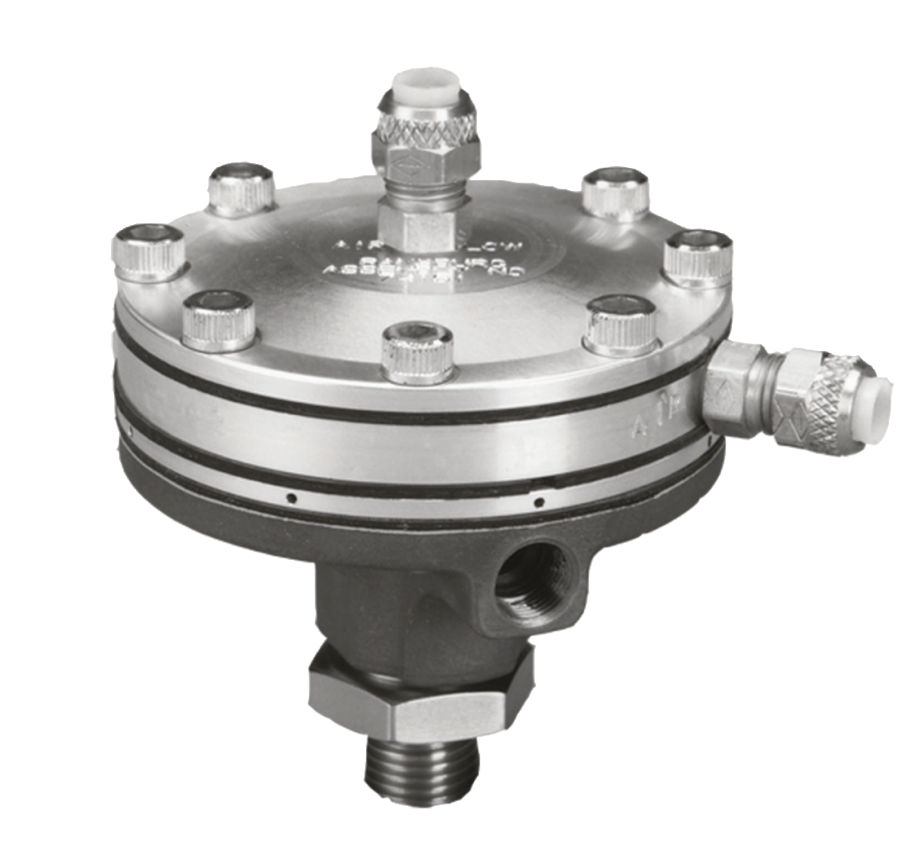

RANSBURG 74151-11 DR-1 Fluid Regulator

RANSBURG 74151-11 DR-1 Fluid Regulator

Regular price
$2,059.00
Sale price
$2,059.00
Quantity must be 1 or more


RANSBURG 74151-11 REGULATOR,DR1,2 STAGE,1:1

Features

  • Two independently controlled flow pressure ranges.
  • High flow range port for higher fluid deliveries.
  • Low flow range for more precise control over lower fluid deliveries.
  • Interchangeable low flow ratios (1:1, 1:2, 1:3, 1:4, 1:6, 1:8, 1:10) for precise control.
  • Stainless steel and coated wetted parts for decreased color change time.
Ratio: 1:1
Stage 2
Air Pressures: Variable by Control (Manual or Automatic) 100 psi
Fluid Input: 300 psi (10 psi minimum above output pressure)
Fluid Output: Variable by Ratio
Air Pilot: #10-32 Thread (Low & High)
Fluid In: 1/4-inch NPSM Thread
 Fluid Out: 1/8-inch NPSM Thread
Volume of Paint Held w/in Regulator: 5cc
Height: 1-7/8-inch
Height w/ Fittings: 2-1/8-inch
Diameter: 2-3/4-inch
Diameter w/ Fittings: 3-3/8-inch

;
