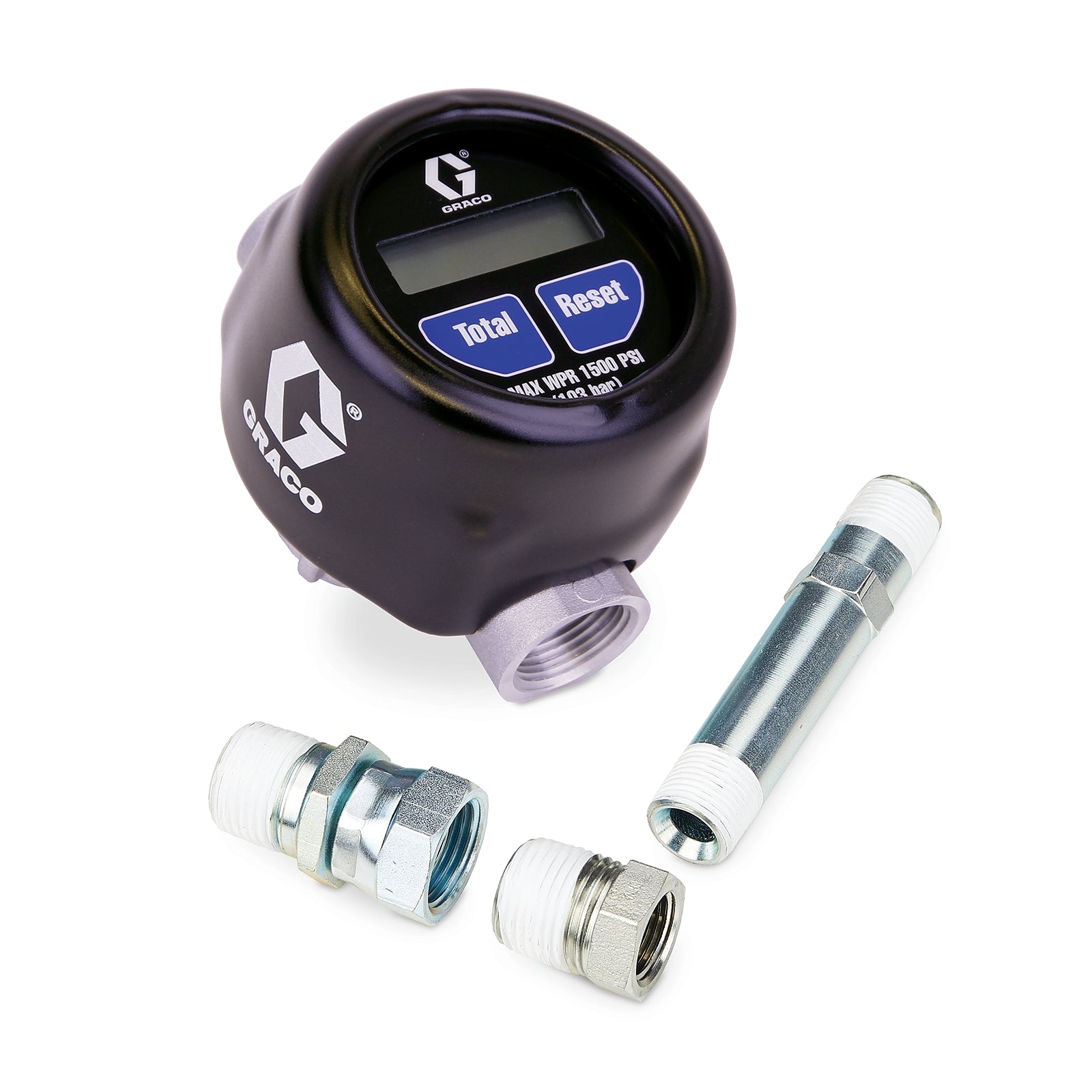

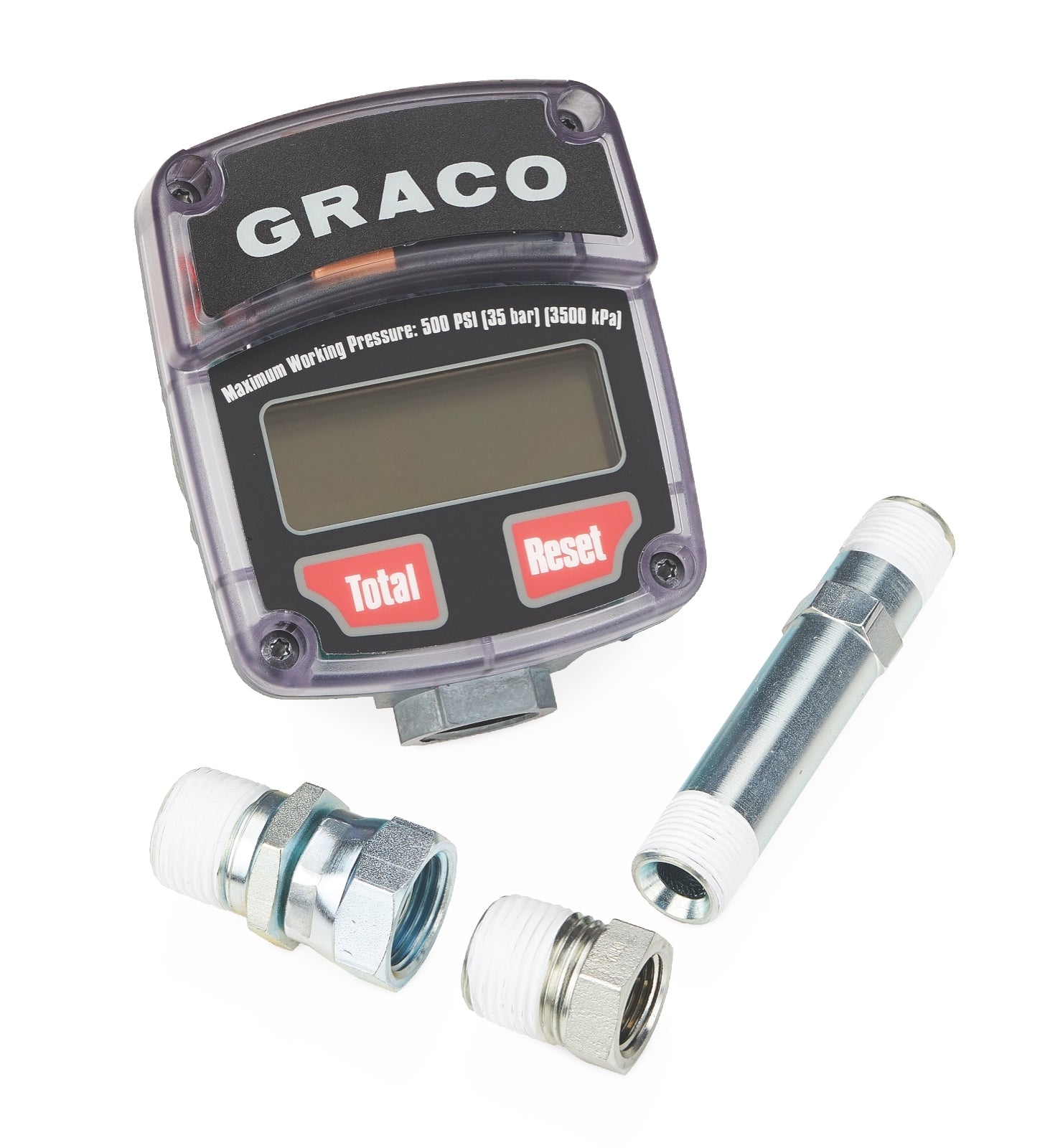

Meter Kit for Adding IM5 Electronic Totalizing Meter to Dispense Valve. Reads in Gallons, Quarts, Pints and Liters.
Meter Kit for Adding IM5 Electronic Totalizing Meter to Dispense Valve. Reads in Gallons, Quarts, Pints and Liters.

Meter Kit for Adding IM5 Electronic Totalizing Meter to Dispense Valve. Reads in Gallons, Quarts, Pints and Liters.

Regular price
$1,105.00
Sale price
$1,105.00
Quantity must be 1 or more


Feel free to call or chat with us for recommendations.

📦 Shipping times may vary contact us for more information
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

Add electronic meter to dispense points for dispense bar.

Typical applications include automotive and heavy-duty dealerships, mining, service and fast lube centers, fleet service facilities, in-plant, and mining.

UPC Product: 00633955781160
Family Code: FAMMLD
Unit of Measure: EA
Height: 6 IN   |  15.24 CM
Length: 12 IN   |  30.48 CM
Width: 6 IN   |  15.24 CM
Volume: .245 FT3   |  .007 M3
Chargeable Weight: 2.75 LBS  | 1.25 KG

Technical Specifications

Battery Chemistry Alkaline
Battery Size 9 V
For Use With 非合成油和合成油(用于马达、齿轮和变速箱), 石油および合成油 (モーター、ギア、 ATF), Petroleum- and synthetic-based oils (motor, gear and ATF), Aceites minerales y sintéticos (motor, engranajes y ATF)
Inlet Size (cm) 1.27
Inlet Size (in) 0.5
Inlet Size (mm) 12.7
Inlet Thread Type NPT
Maximum Working Pressure (bar) 34
Maximum Working Pressure (kPa) 3400
Maximum Working Pressure (psi) 500
Meter Accuracy (%) ±0.5
Unit of Measure Quart, Pint, Gallon, Liter
Weight (kg) 0.82
Weight (lb) 1.8
Wetted Material Nickel, Zinc, LCP, Nitrile Rubber
Type In-Line Meter Dispense Kit
Compatible Material Petroleum-Based Oil, Synthetic-Based Oil
Display Type Electronic
Valve Type Metered
Recommended Environment Indoor, Outdoor
Maximum Working Pressure (MPa) 3.4
Model LD
