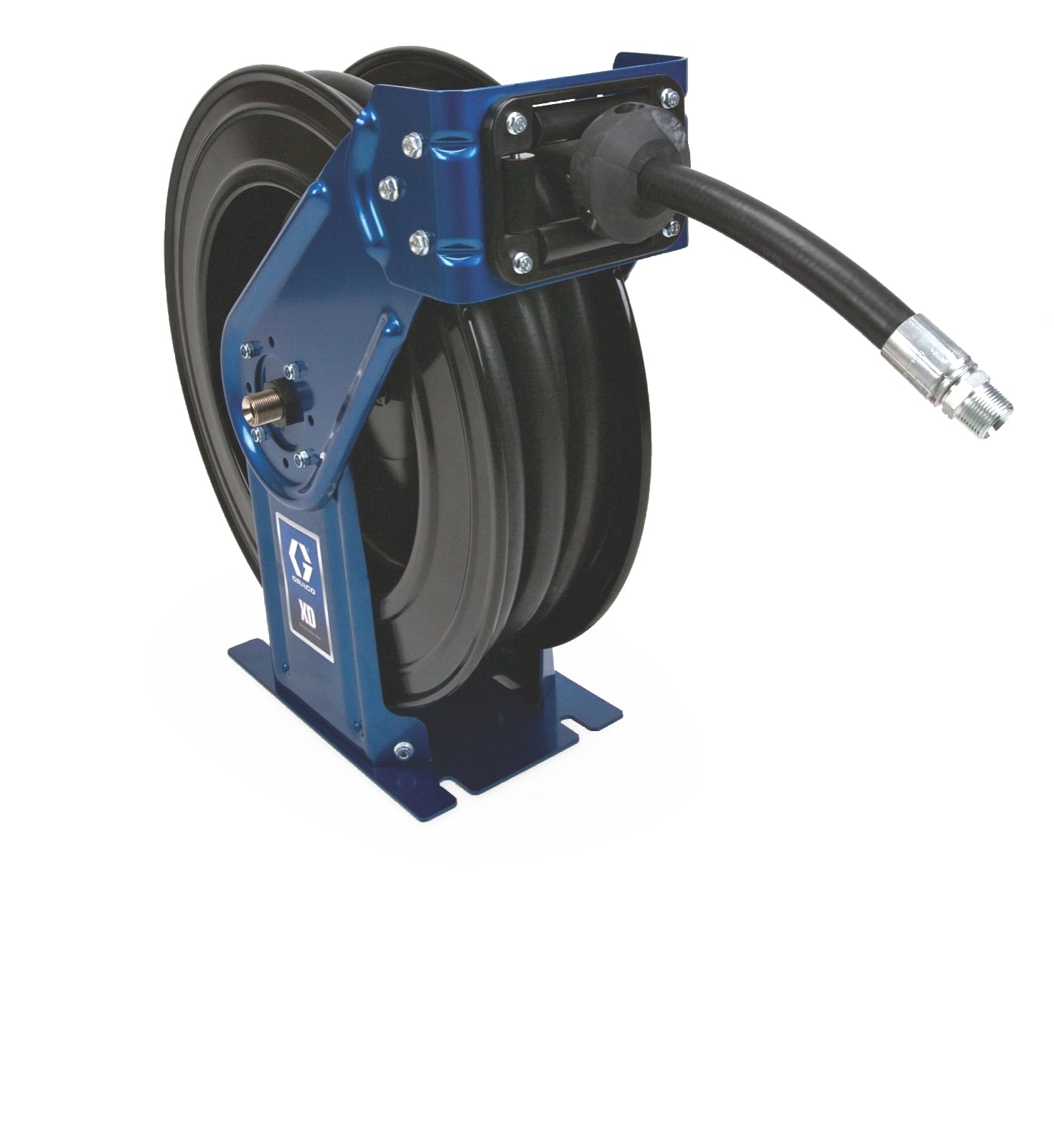

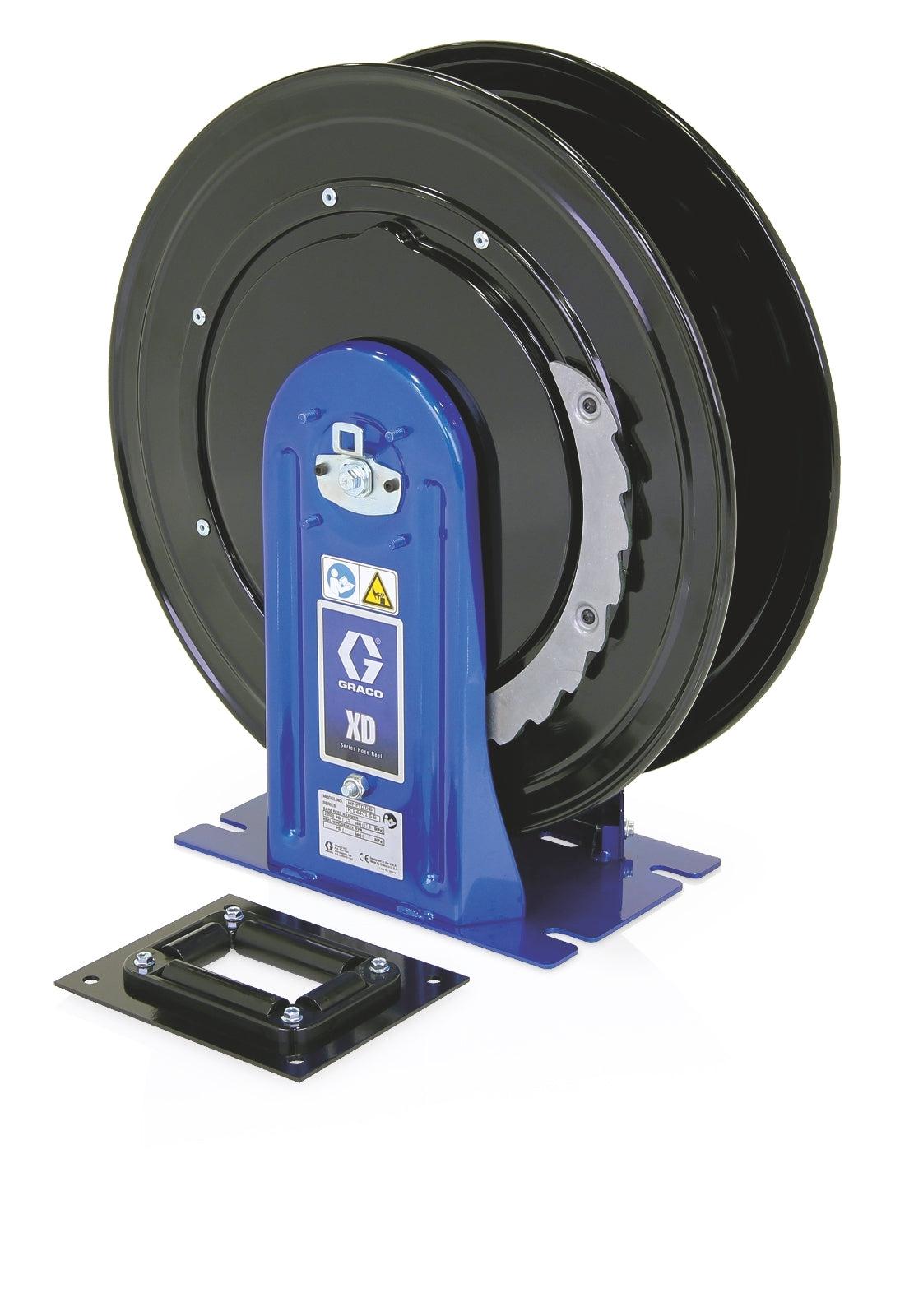

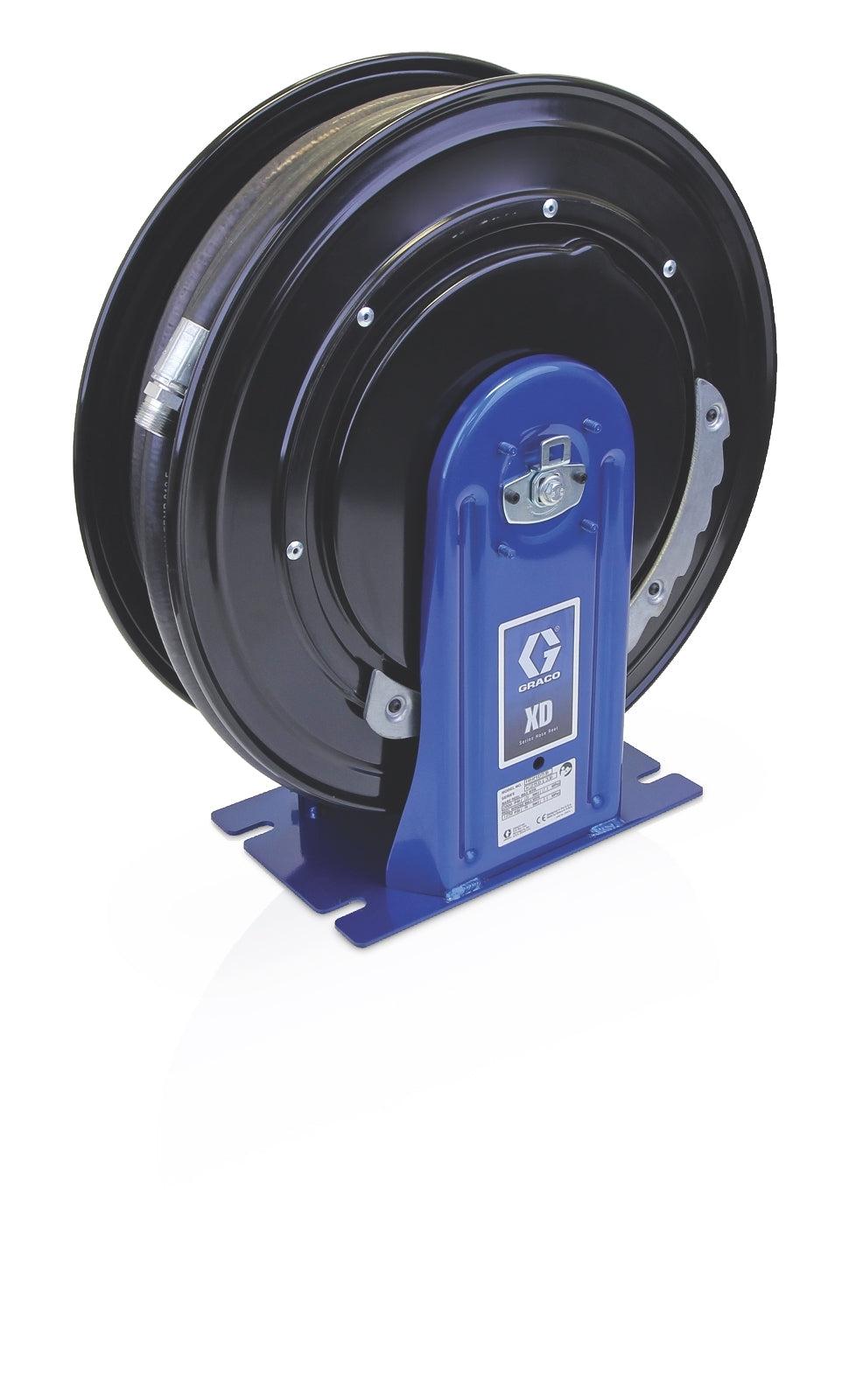

Graco XD30™, Fuel/Evac, 19 mm (3/4 in.) Inlet, 25 mm X 9 m (1 in. X 30 ft) Hose, NPT, Truck/Bench Mount, Yellow
Graco XD30™, Fuel/Evac, 19 mm (3/4 in.) Inlet, 25 mm X 9 m (1 in. X 30 ft) Hose, NPT, Truck/Bench Mount, Yellow
Graco XD30™, Fuel/Evac, 19 mm (3/4 in.) Inlet, 25 mm X 9 m (1 in. X 30 ft) Hose, NPT, Truck/Bench Mount, Yellow

Graco XD30™, Fuel/Evac, 19 mm (3/4 in.) Inlet, 25 mm X 9 m (1 in. X 30 ft) Hose, NPT, Truck/Bench Mount, Yellow

Regular price
$2,220.00
Sale price
$2,220.00
Quantity must be 1 or more


Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 9.1-22.8 m (30-75 ft) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF).

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

  • Spring Adjustment - Increase or decrease spring tension while reel is pressurised with fluid
  • Full-Flow Swivel - Maximise material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models)
  • Durable Finish - Baked-on enamel finish protects reel from corrosion
  • Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 91-228 m (30-75 ft) hose capacity for a wide variety of applications
UPC Product: 00633955547179
Family Code: FAMXD3
Unit of Measure: EA
Height: 25.2 IN   |  64.008 CM
Length: 25.2 IN   |  64.008 CM
Width: 10.8 IN   |  27.432 CM
Volume: 3.969 FT3   |  .112 M3
Chargeable Weight: 100 LBS  | 45.36 KG

Technical Specifications

Color Yellow
Dry Weight (lb) 98
Hose Inside Diameter (in) 1
Hose Inside Diameter (mm) 25.4
Hose Length (ft) 30
Hose Length (m) 9
Inlet Size (in) 3/4
Inlet Size (mm) 19.05
Inlet Thread Type NPSM
Maximum Working Pressure (psi) 125
Mount Location Truck Mount, Bench Mount
Outlet Size (in) 1
Outlet Size (mm) 25.4
Overall Height (in) 27.6
Overall Height (mm) 701
Overall Length (in) 25.96
Overall Length (mm) 659
Overall Width (in) 9
Overall Width (mm) 229
Series 30
Application Diesel Fuel
Type Spring-Rewind Reel
Recommended Environment Indoor, Outdoor
Frame Type Dual Pedestal
Reel Thread Type NPT
Recommended Fluid Type 燃料;废油排空, Fuel, Fuel, Carburant, dépotage, Combustible, Kraftstoff, Brandstof, Carburante, Evac, Evac, Evac, Entleeren, afvoer, Evac
Hose Reel Type Reel with Hose
Model XD
includes_hose Yes
