Graco Trabon® MXP Divider Valve - Intermediate Base Plate - SAE
Graco Trabon® MXP Divider Valve - Intermediate Base Plate - SAE
Graco Trabon® MXP Divider Valve - Intermediate Base Plate - SAE

Graco Trabon® MXP Divider Valve - Intermediate Base Plate - SAE

Regular price
$269.00
Sale price
$269.00
Quantity must be 1 or more

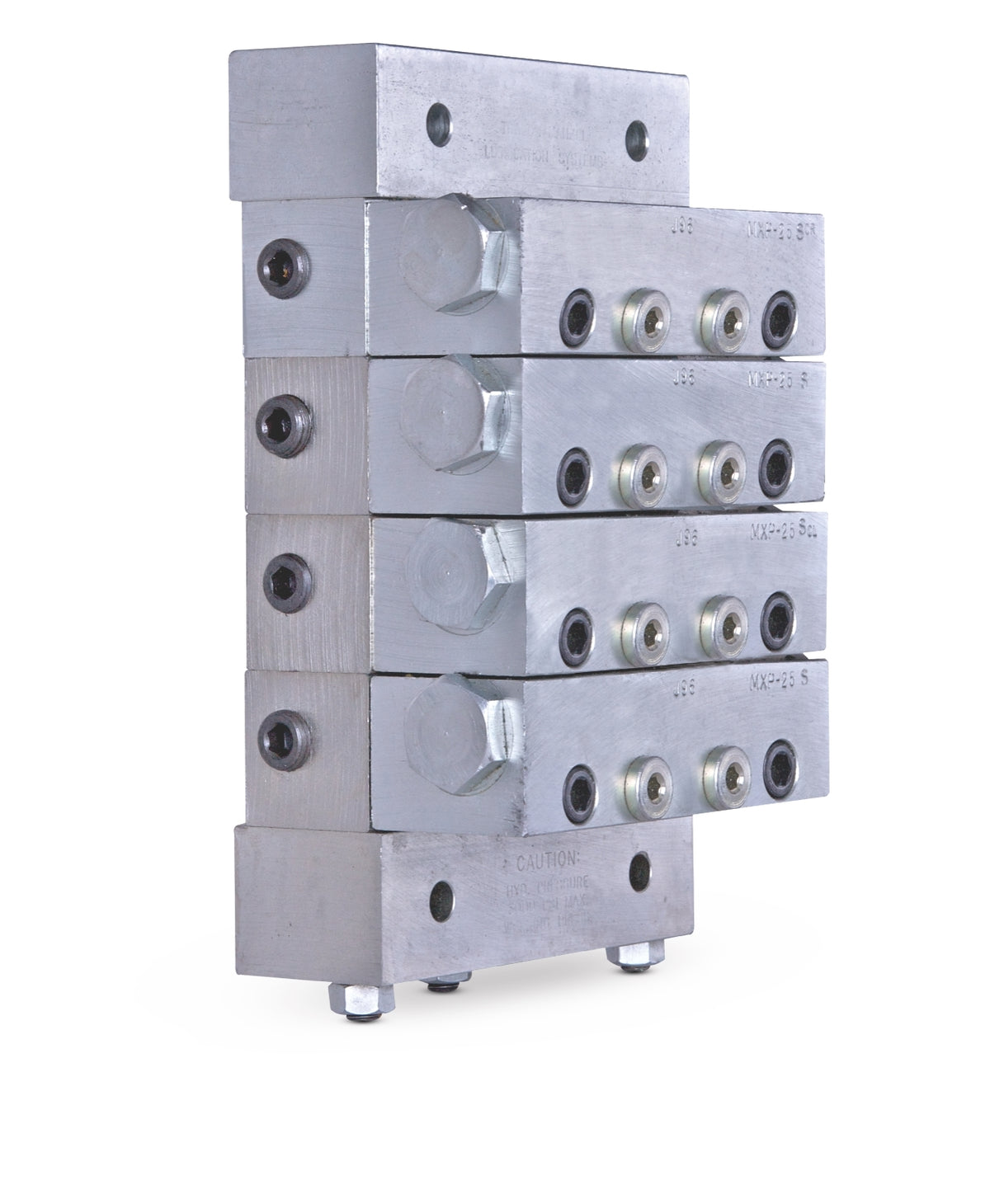

For use with Trabon® MXP Divider Valves.

  • Intermediate Base
  • Must be ordered in multiples of two
  • 9/16-18 SAE O-ring
  • Lubriquip part number 527-300-710
UPC Product: 00633955351691
Family Code: FAMMPM
Unit of Measure: EA
Height: 1.2 IN   |  3.048 CM
Length: 4.8 IN   |  12.192 CM
Width: 1.2 IN   |  3.048 CM
Volume: .006 FT3   |  0 M3
Chargeable Weight: 2 LBS  | .91 KG

Technical Specifications

Type Base Block
Outlet Size (cm) 1.4288
Outlet Size (in) 9/16
Outlet Size (mm) 14.2875
Outlet Thread Type SAE
Inlet Size (cm) 1.4288
Inlet Size (in) 9/16
Inlet Size (mm) 14.2875
Inlet Thread Type SAE
Series MXP
Application In-Plant Machinery
Model Trabon
