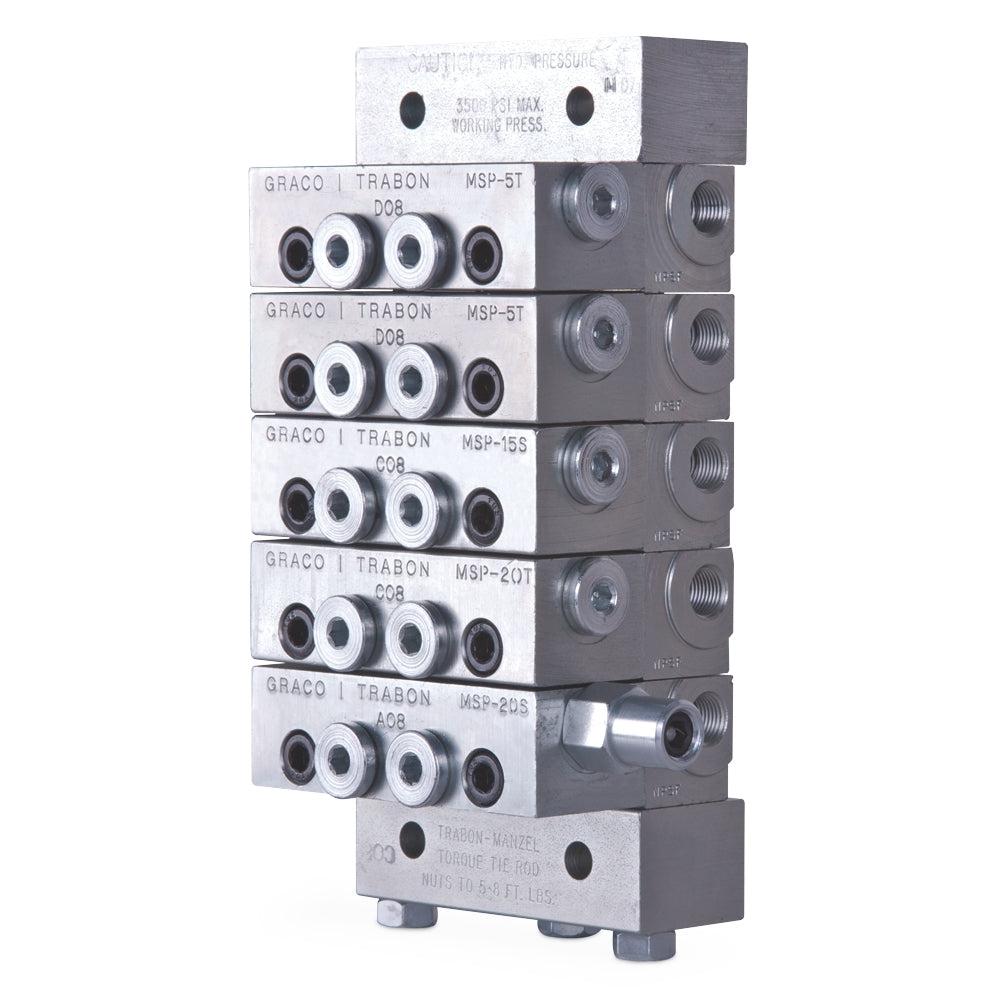

Graco Trabon® MSP Divider Valve - 4 Section Base Plate Assemblies - BSPP
Graco Trabon® MSP Divider Valve - 4 Section Base Plate Assemblies - BSPP
Graco Trabon® MSP Divider Valve - 4 Section Base Plate Assemblies - BSPP

Graco Trabon® MSP Divider Valve - 4 Section Base Plate Assemblies - BSPP

Regular price
$278.00
Sale price
$278.00
Quantity must be 1 or more


The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve–and is still the best!

For use with mobile, industrial, food and beverage, wind, and many more applications.

  • Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimising labour cost and maximising your machine uptime.
  • Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event.
  • Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting.
  • Built-in outlet check valves ensure accurate lube delivery every time
UPC Product: 00633955260856
Family Code: FAMMPM
Unit of Measure: EA
Height: 1.2 IN   |  3.048 CM
Length: 3.25 IN   |  8.255 CM
Width: 5.95 IN   |  15.113 CM
Volume: .013 FT3   |  0 M3
Chargeable Weight: 4.11 LBS  | 1.86 KG

Technical Specifications

Maximum Working Pressure (psi) 3500
Outlet Size (mm) 3.175
Inlet Thread Type BSPP
Inlet Size (in) 1/4
Outlet Size (cm) 0.3175
Number of Outlets 8
Maximum Working Pressure (bar) 241
Maximum Operating Temperature (°F) 350
Inlet Thread Gender Female
Cycle Indicator None
Outlet Thread Type BSPP
Outlet Thread Gender Female
Outlet Size (in) 1/8
Maximum Working Pressure (kPa) 24100
Maximum NLGI Grade #2
Material Carbon Steel
Compatible Material Oil, Grease
Maximum Operating Temperature (°C) 176
Type Divider Valve
Divider Valve Series MSP
Application On-Road Vehicles, Off-Road Equipment, In-Plant Machinery
Model Trabon
Series MSP
Discharge Per Piston Stroke (in³) N/A
