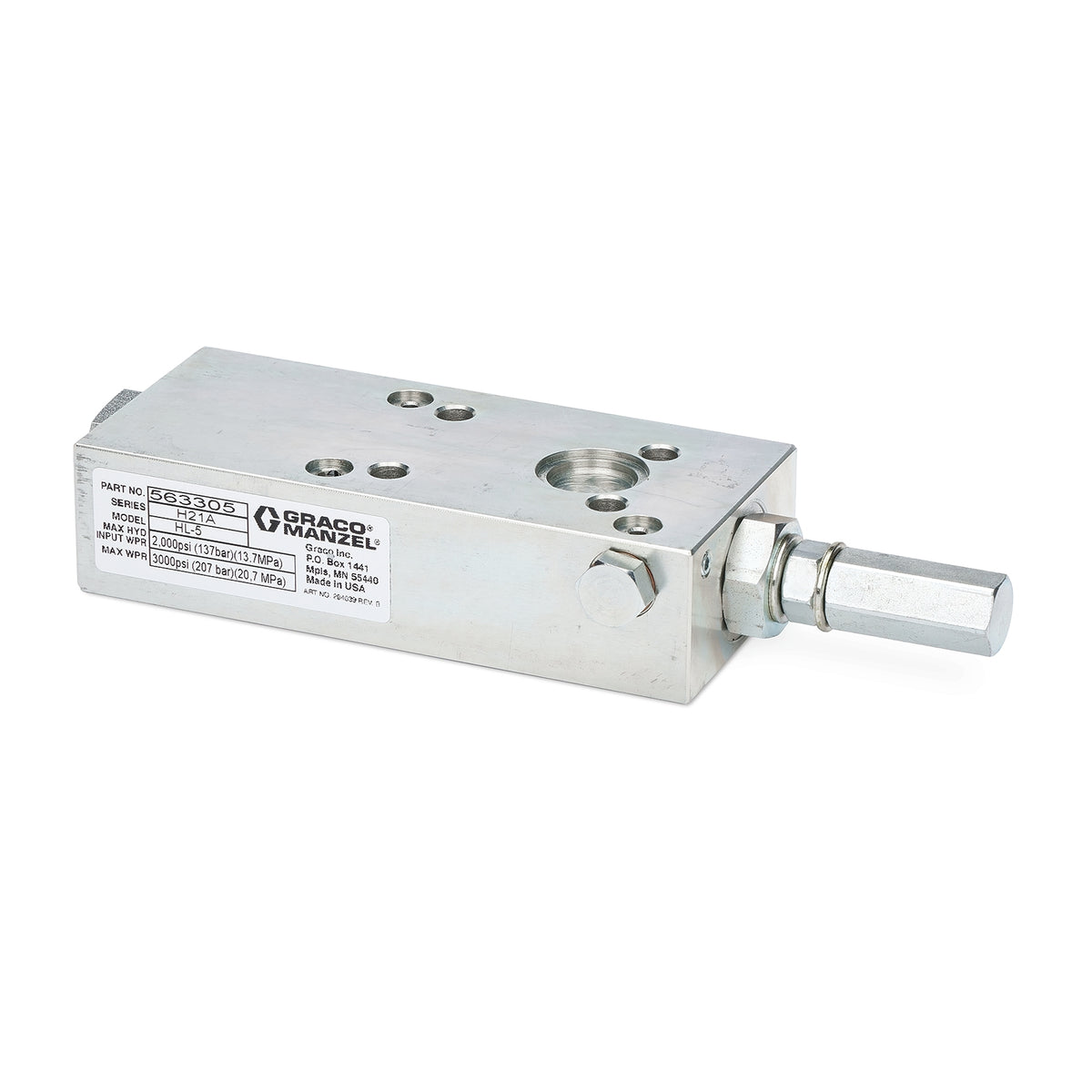

The Modu-Flo system is ideal for applications where minimizing downtime is critical. Customizing is easy–just mix and match pumps, reservoir and manifolds in any configuration to meet any application. Replace the pump or reservoir without disconnecting lubrication lines.
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
- Modular system design allows configurations to work in all applications
- Easy to standardize on components and reduce inventory
- Adjustable pump output for fast, convenient customization
- Lubriquip part number 521-000-011
UPC Product: 633955351066
Family Code: FAMMPM
Unit of Measure: EA
Height:
3.1 IN
| 7.874 CM
Length:
11.5 IN
| 29.21 CM
Width:
3.1 IN
| 7.874 CM
Volume:
.064 FT3
| .002 M3
Chargeable Weight:
4.34 LBS
| 1.97 KG
Technical Specifications
| Type | Hydraulic Piston Pump |
|---|---|
| Application | In-Plant Machinery |
| Compatible Material | Oil, Grease |
| Maximum Cycle Rate (CPM) | 60 |
| Maximum Fluid Output Pressure (psi) | 2000 |
| Maximum NLGI Grade | #2 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 20680 |
| Maximum Working Pressure (psi) | 3000 |
| Model | Modu-Flo |
| Power Type | Hydraulic |
| Series | HLJ-5 |
| Compatible Metering Device | Series Progressive |
| Maximum Working Pressure (MPa) | 45.5 |
| maximum_fluid_output_pressure_bar | 138 |
