Mix and match pumps, reservoir and manifolds in any configuration to meet any application. Replace the pump or reservoir without disconnecting lubrication lines.
Feel free to call or chat with us for recommendations.
📦
Ships in 6-10 days, shipping times may vary
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
- Easy to standardize on components and reduce inventory
- Adjustable pump output for fast, convenient customizing

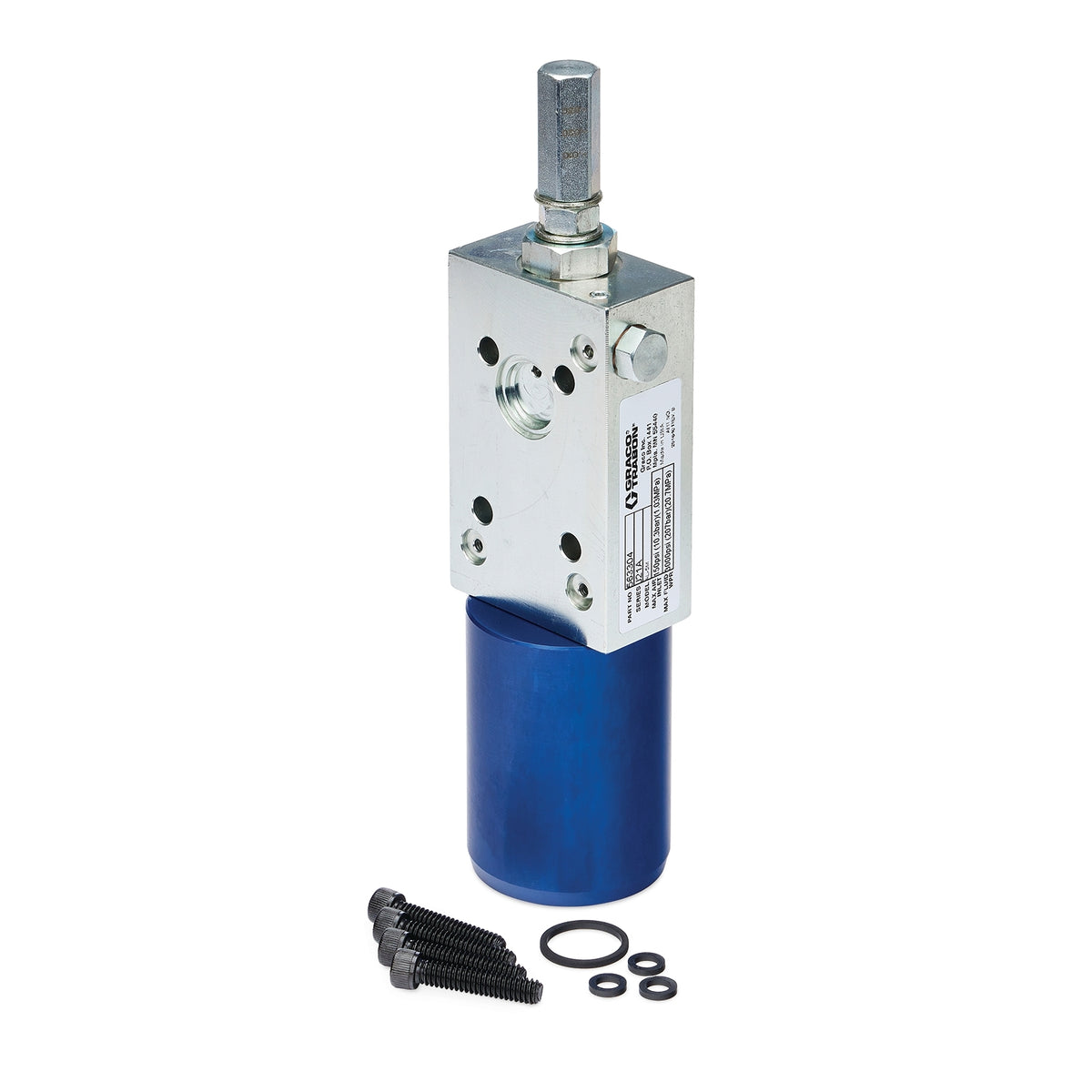

- Lubriquip part number 521-000-001
UPC Product: 00633955351059
Family Code: FAMMPM
Unit of Measure: EA
Height:
3 IN
| 7.62 CM
Length:
11.6 IN
| 29.464 CM
Width:
3 IN
| 7.62 CM
Volume:
.06 FT3
| .002 M3
Chargeable Weight:
3.93 LBS
| 1.78 KG
Technical Specifications
| Type | Pneumatic Piston Pump |
|---|---|
| Application | In-Plant Machinery |
| Compatible Material | Oil, Grease |
| Maximum Air Inlet Pressure (bar) | 10.34 |
| Maximum Air Inlet Pressure (kPa) | 1034 |
| Maximum Air Inlet Pressure (psi) | 150 |
| Maximum Cycle Rate (CPM) | 30 |
| Maximum Fluid Output Pressure (psi) | 3500 |
| Maximum NLGI Grade | #2 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 20680 |
| Maximum Working Pressure (psi) | 3000 |
| Model | Modu-Flo |
| Power Type | Pneumatic |
| Series | AL-5M |
| Compatible Metering Device | Series Progressive |
| Overall Depth (cm) | 5.4 |
| Overall Depth (in) | 2.125 |
| Overall Depth (mm) | 54 |
| Overall Height (cm) | 6.7 |
| Overall Height (in) | 2.26 |
| Overall Height (mm) | 58 |
| Overall Width (cm) | 21 |
| Overall Width (in) | 8.281 |
| Overall Width (mm) | 210 |
| Maximum Working Pressure (MPa) | 31 |
| maximum_fluid_output_pressure_bar | 241 |
