Graco Meter-Flo® Electric Pump, 245 cu in/min (4015 cc/min) @ 1,725 rpm, NPT Ports, CW
Graco Meter-Flo® Electric Pump, 245 cu in/min (4015 cc/min) @ 1,725 rpm, NPT Ports, CW

Graco Meter-Flo® Electric Pump, 245 cu in/min (4015 cc/min) @ 1,725 rpm, NPT Ports, CW

Regular price
$1,545.00
Sale price
$1,545.00
Quantity must be 1 or more


Feel free to call or chat with us for recommendations.

📦 Shipping times may vary contact us for more information
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

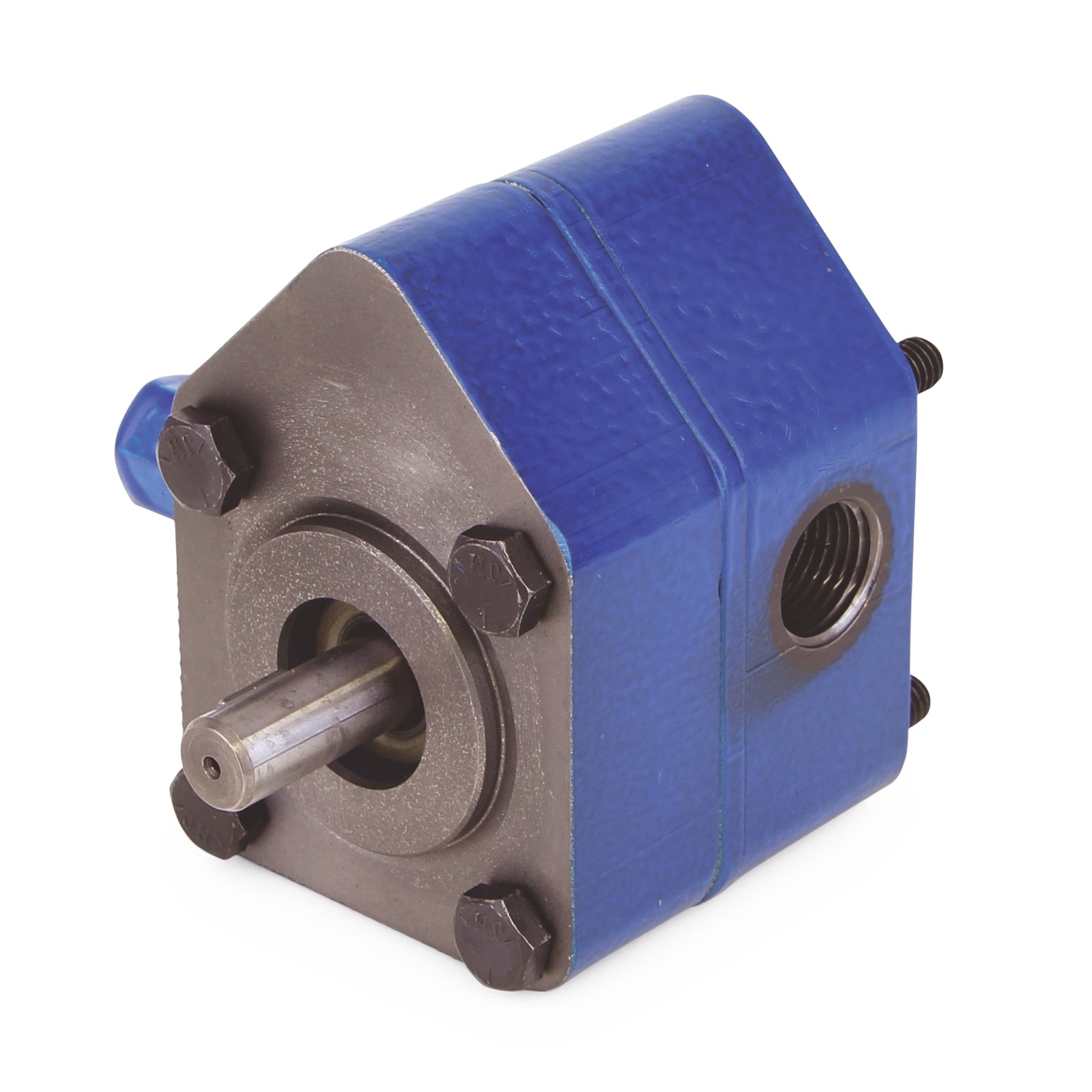

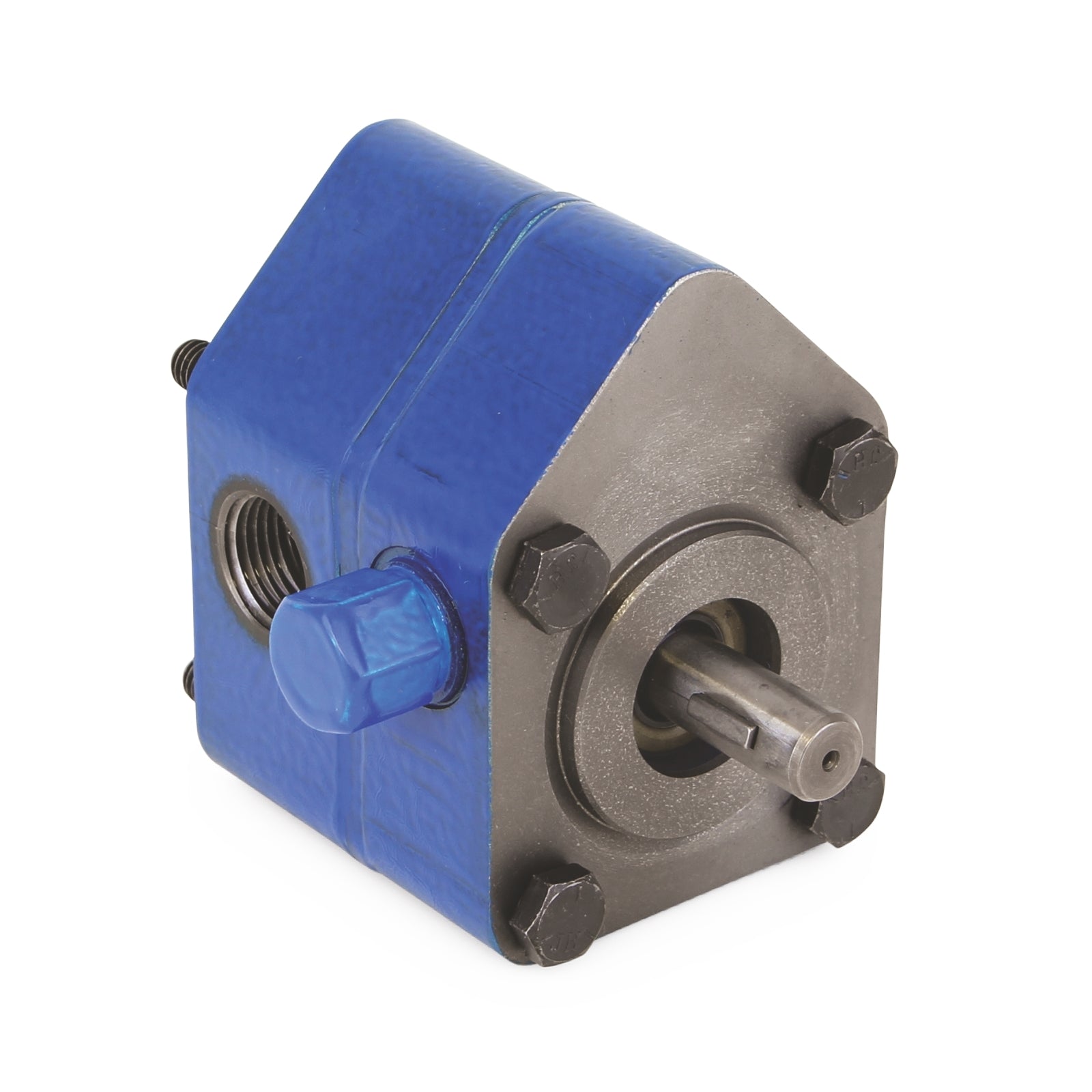

With its solid pump housing, these rugged gear pumps are designed for dependable operation in high demand applications. The gear pump is available with a direct-coupled 1/2 horsepower motor capable of 1,725 rpm’s with output volumes of 245 cubic inches per minute (4015 cc/min).

Direct-drive, smoothly operating pumps ideal for applications requiring continuous delivery of hydraulic or lube oils.

  • Ideal for applications requiring continuous oil delivery up to 1,000 lubrication points
  • Positive displacement helps assure constant delivery of proper volume.
  • Match-ground heat-treated steel gears are enclosed in a rigid, cast-iron housing to assure dependability and long life.
  • Standard SAE 4-bolt mounting simplifies installation.
  • Adjustable pressure relief valve protects pump against overload conditions.
  • Meter-flo pumps are available with a special coupling that allows easy replacement of older Meter-Flo pumps.
  • Lubriquip part number 540-800-940
UPC Product: 00633955344426
Family Code: FAMLPM
Unit of Measure: EA
Height: 12.192 CM   |  4.8 IN
Length: 6 IN   |  15.24 CM
Width: 6 IN   |  15.24 CM
Volume: .1 FT3   |  .003 M3
Chargeable Weight: 6.3 LBS  | 2.86 KG

Technical Specifications

Type Electric Piston Pump
Application In-Plant Machinery
Compatible Material Oil
Fluid Outlet Size (in) 0.5
Fluid Outlet Size (mm) 12.7000
Fluid Outlet Thread Type NPT
Maximum Fluid Output Pressure (psi) 1500
Maximum Operating Temperature (°C) 66
Maximum Operating Temperature (°F) 150
Maximum Working Pressure (bar) 103.4
Maximum Working Pressure (kPa) 10340
Maximum Working Pressure (psi) 1500
Minimum Operating Temperature (°C) 10
Minimum Operating Temperature (°F) 50
Model Meter-Flo
Power Type Electric
Compatible Metering Device Series Progressive
Maximum Flow Rate (ci/min) 245
Maximum SUS Grade (SUS) 3000
Minimum SUS Grade (SUS) 300
Maximum Working Pressure (MPa) 10.3
maximum_fluid_output_pressure_bar 103
