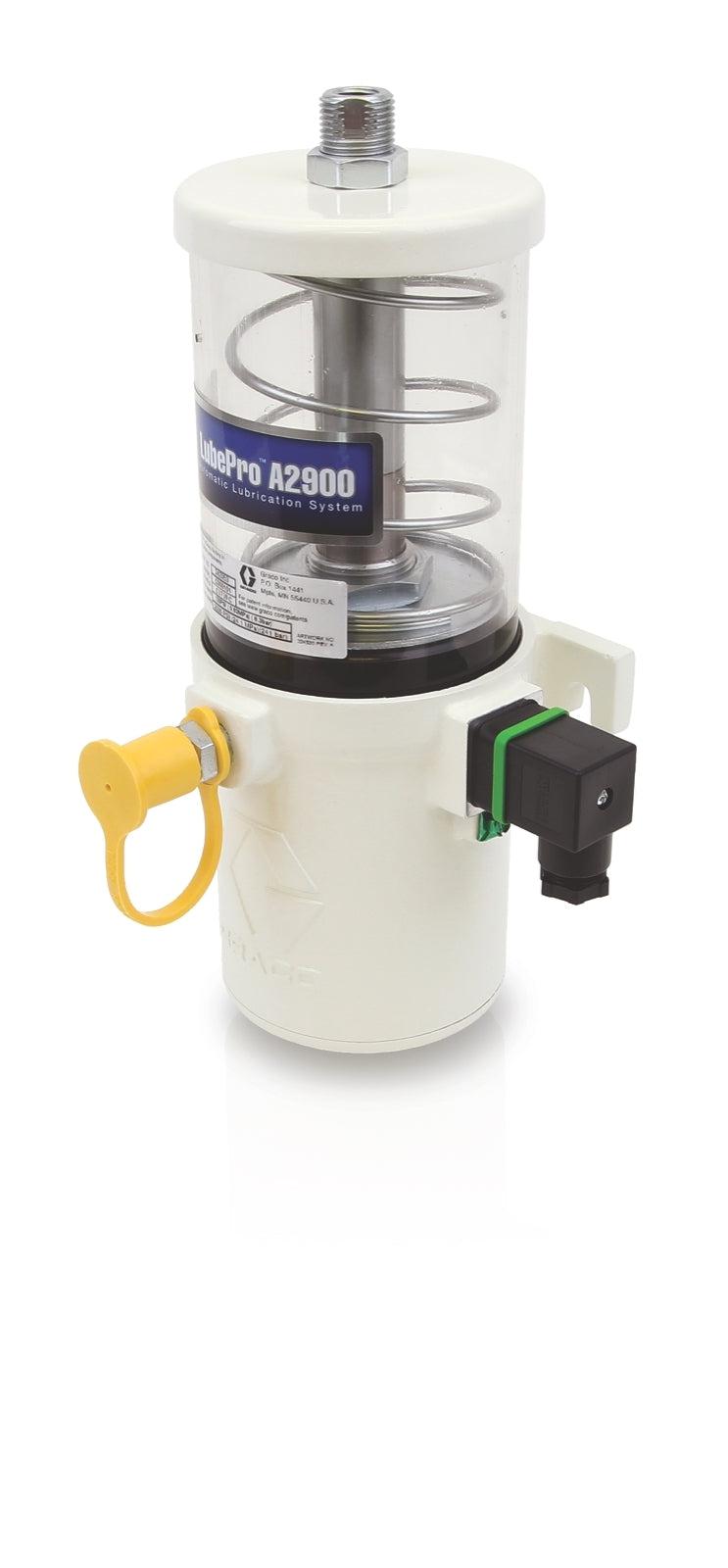

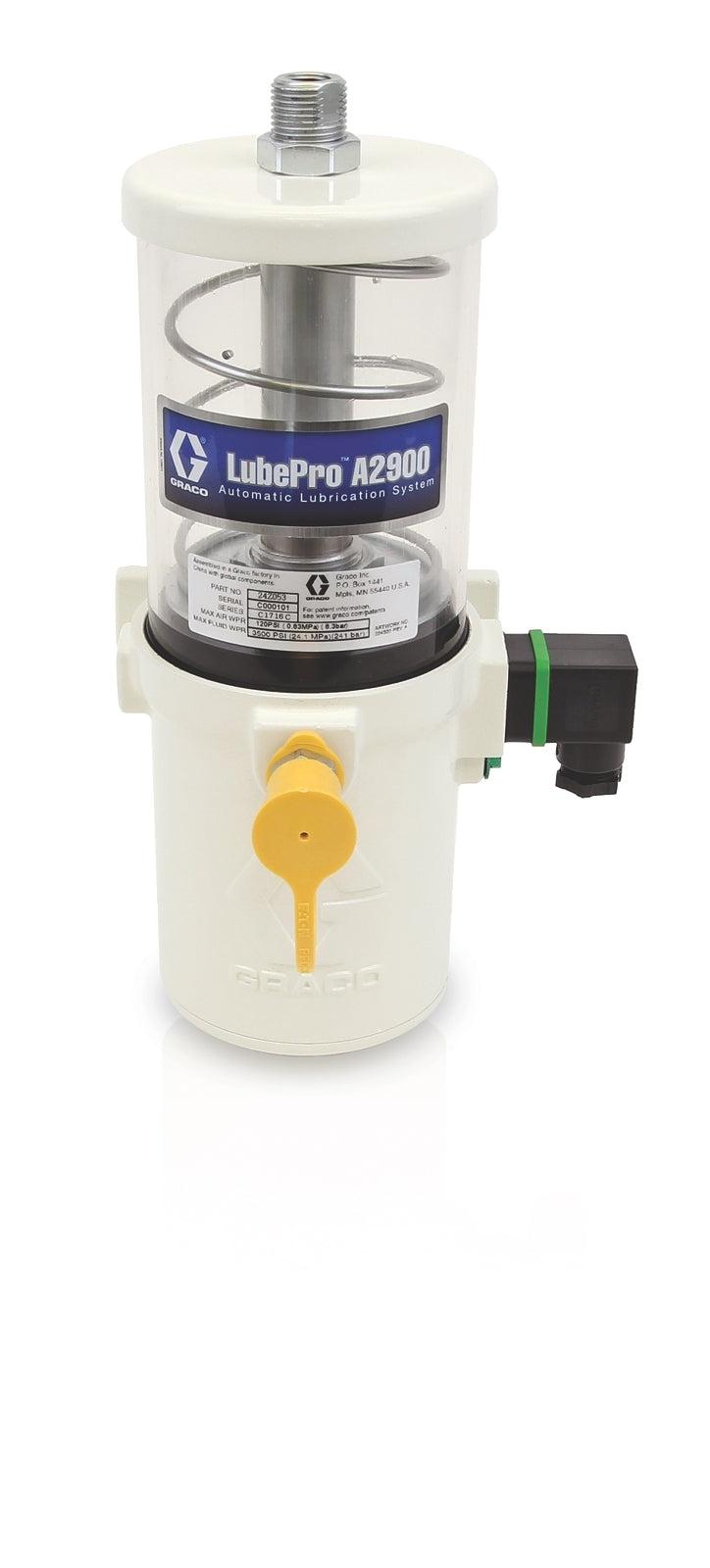

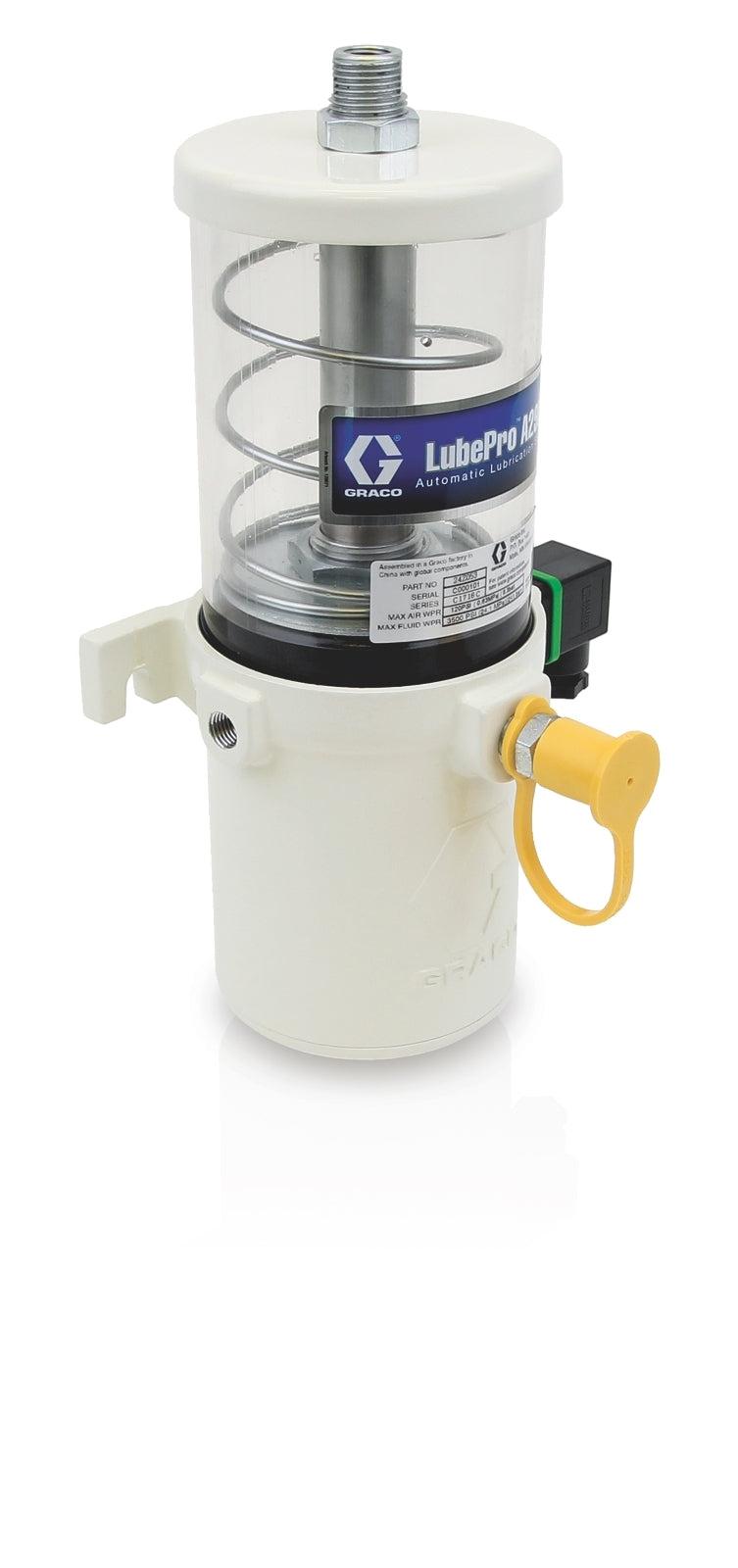

Graco 24Z052 LubeProâ„¢ A2900 Vertical Grease Pumps, 1 lb. (0.45 kg) Reservoir, Normally Open, Low Level - NPT
Graco 24Z052 LubeProâ„¢ A2900 Vertical Grease Pumps, 1 lb. (0.45 kg) Reservoir, Normally Open, Low Level - NPT
Graco 24Z052 LubeProâ„¢ A2900 Vertical Grease Pumps, 1 lb. (0.45 kg) Reservoir, Normally Open, Low Level - NPT

Graco 24Z052 LubeProâ„¢ A2900 Vertical Grease Pumps, 1 lb. (0.45 kg) Reservoir, Normally Open, Low Level - NPT

Regular price
$1,005.00
Sale price
$1,005.00
Quantity must be 1 or more


Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over 50 years.

Single Stroke Grease Pump for Automatic Lubrication

  • LubePro A2900 is compatible with GL-1, GL-32 and GL-33 injectors
  • Pressure Ratio of 29:1
  • A2900 delivers a greater output than competitive models at 0.58 in³ (9.5 cm³) per stroke
  • Pneumatic power makes it easy to install into existing air line
  • Factory installed Low Level Detection available
  • Integrated vent automatically and reliably relieves pressure on return stroke, no pressure switch or wiring required
  • Built with high-quality seals tested to outperform the competition
  • High-strength, shatter resistant, 1 lb (0.45 kg) reservoir
  • Optimally lubricates while your machines are running
  • Provides accurate, reliable lubrication for every lube point
UPC Product: 00755652364870
Family Code: FAMMPM
Unit of Measure: EA
Height: 0 CM   |  0 IN
Length: 0 IN   |  0 CM
Width: 0 CM   |  0 IN
Volume: 0 FT3   |  0 M3
Chargeable Weight: 0 LBS  | 0 KG

Technical Specifications

Type Pneumatic Piston Pump
Air Inlet Size (in) 1/4
Air Inlet Size (mm) 6.35
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application In-Plant Machinery
Compatible Material Grease
Fluid Outlet Size (in) 0.25
Fluid Outlet Size (mm) 6.3500
Fluid Outlet Thread Type NPT
Includes 低液位, 低レベル, Low Level, Bajo nivel
Maximum Air Inlet Pressure (bar) 12.07
Maximum Air Inlet Pressure (kPa) 1207
Maximum Air Inlet Pressure (psi) 175
Maximum NLGI Grade #2
Maximum Working Pressure (bar) 241
Maximum Working Pressure (kPa) 24100
Maximum Working Pressure (psi) 3500
Model LubePro
Power Type Pneumatic
Reservoir Size (lb) 1
Series A2900
Weight (lb) 11
Wetted Material Zinc-Plated Steel, Casting Aluminum ZL101, Magnet, Plastic POM, Polycarbonate, Buna-N, PTFE, PEEK
Compatible Metering Device Series Progressive, Single Line Parallel
Overall Depth (cm) 16.5
Overall Depth (in) 6.5
Overall Depth (mm) 165
Overall Height (cm) 31.8
Overall Height (in) 12.53
Overall Height (mm) 318
Overall Width (cm) 17.5
Overall Width (in) 6.9
Overall Width (mm) 175
Weight (kg) 5
Maximum Working Pressure (MPa) 24.1
