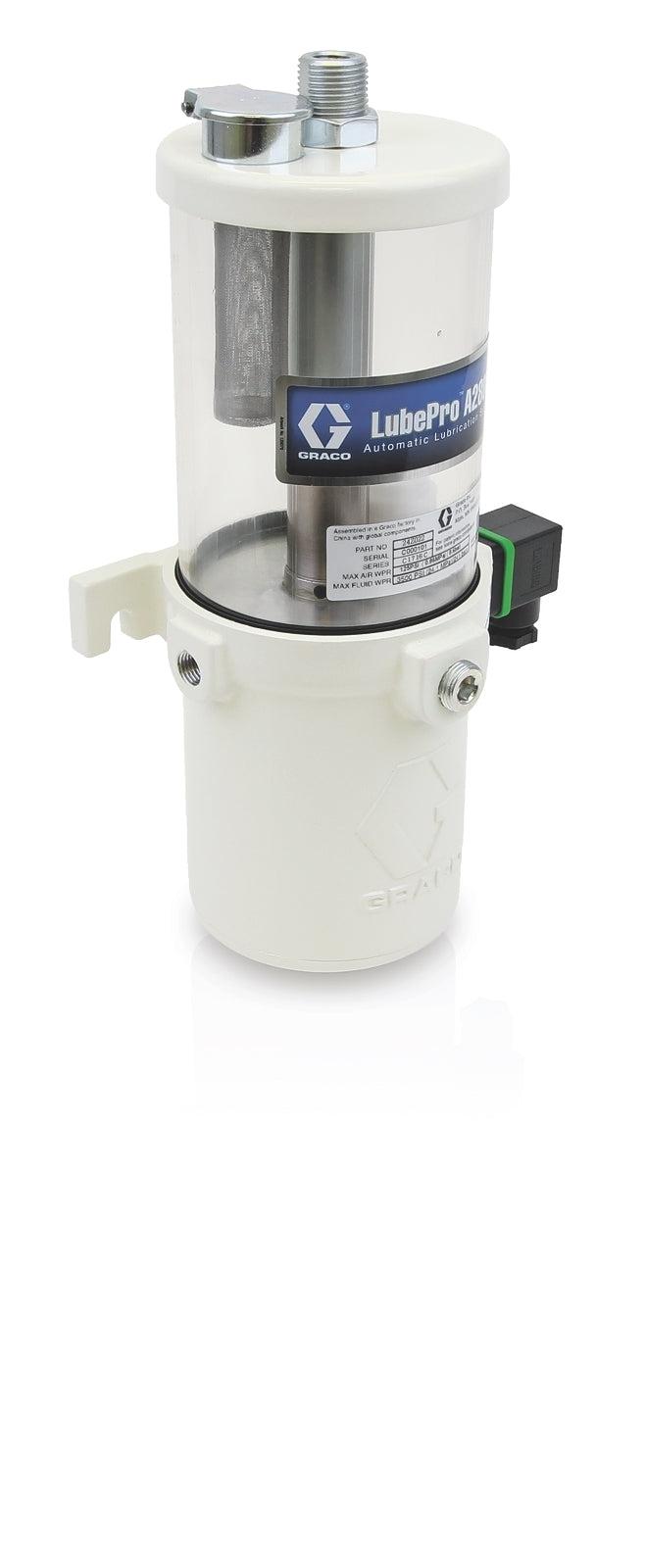

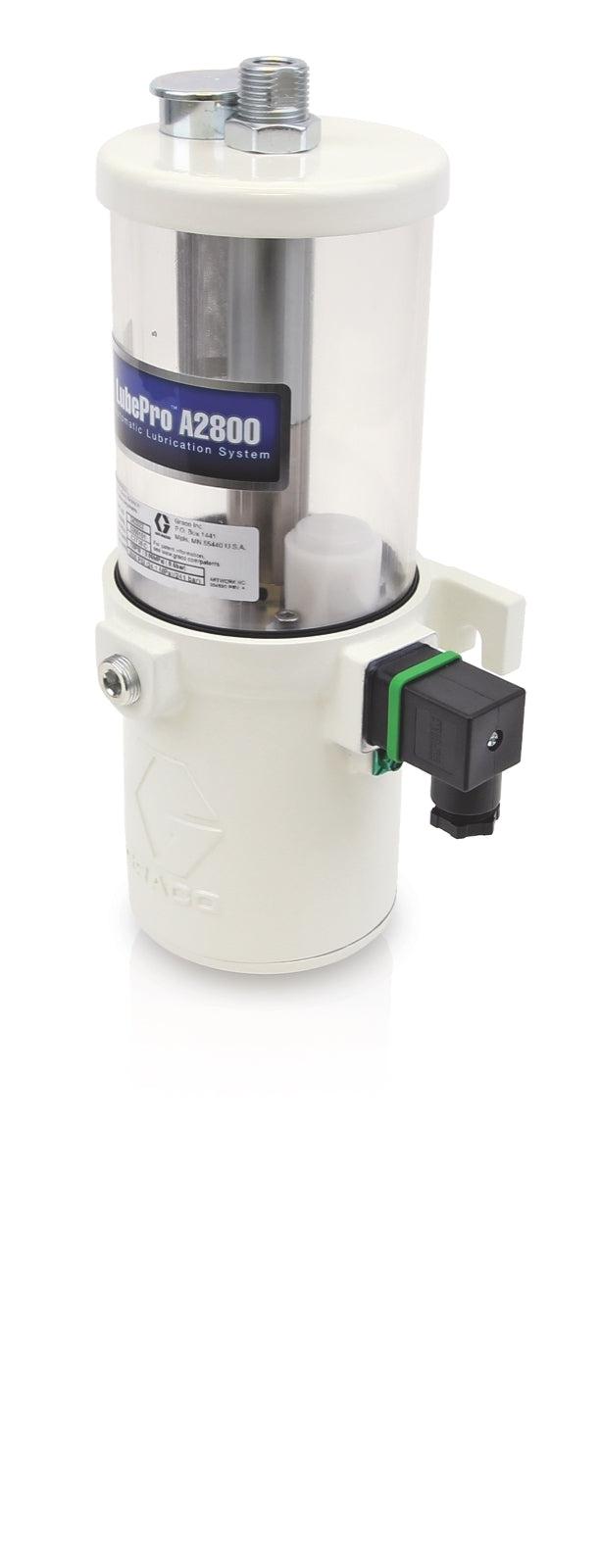

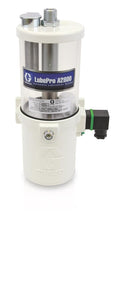

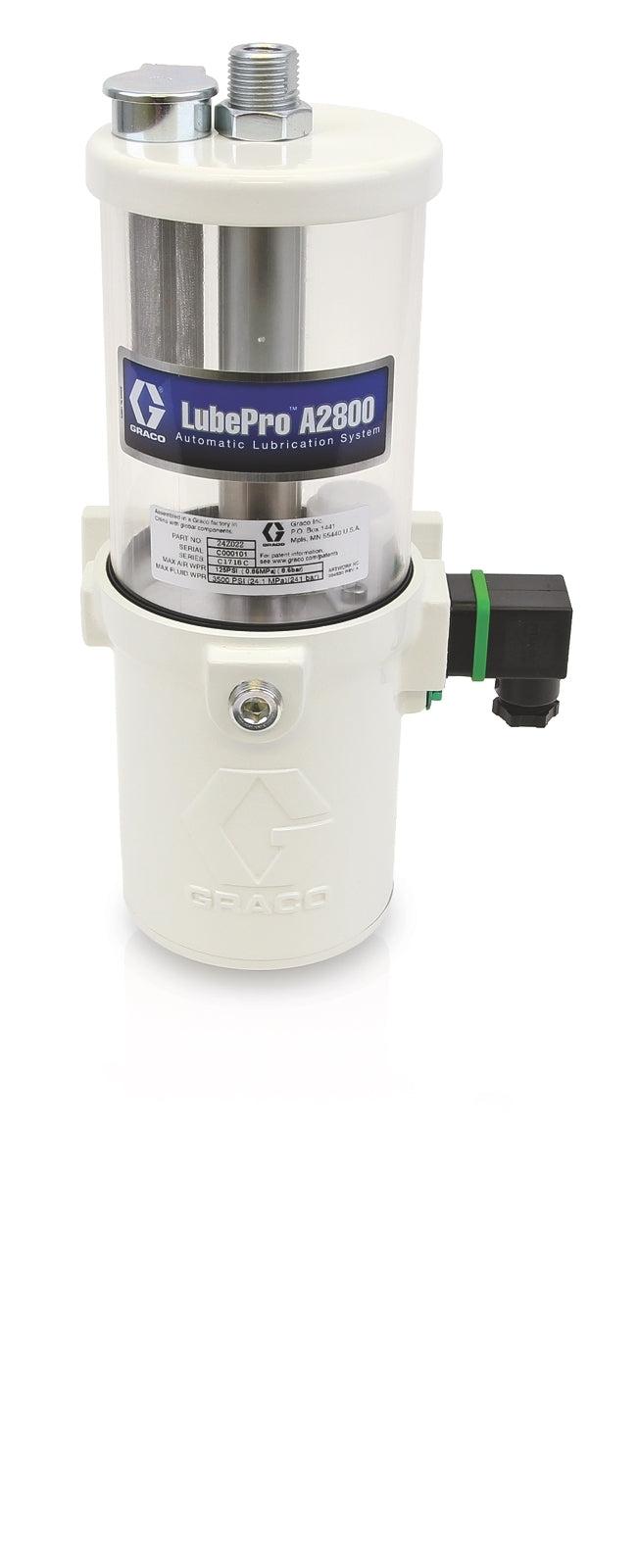

Graco 24Z022 LubeProâ„¢ A2800 Vertical Oil Pumps, 0.6 liter Reservoir, Normally Closed, Low Level - NPT
Graco 24Z022 LubeProâ„¢ A2800 Vertical Oil Pumps, 0.6 liter Reservoir, Normally Closed, Low Level - NPT
Graco 24Z022 LubeProâ„¢ A2800 Vertical Oil Pumps, 0.6 liter Reservoir, Normally Closed, Low Level - NPT

Graco 24Z022 LubeProâ„¢ A2800 Vertical Oil Pumps, 0.6 liter Reservoir, Normally Closed, Low Level - NPT

Regular price
$1,055.00
Sale price
$1,055.00
Quantity must be 1 or more


Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over 50 years.

Single Stroke Oil Pump for Automatic Lubrication

  • LubePro A2800 is compatible with GL-1, GL-32 and GL-33 injectors
  • Pressure Ratio of 28:1
  • Pneumatic power makes it easy to install into existing air line
  • A2800 delivers a greater output than competitive models at 0.56 in³ (9.18 cm³) per stroke
  • Factory installed Low Level Detection available
  • Integrated vent automatically and reliably relieves pressure on return stroke, no pressure switch or wiring required
  • Built with high-quality seals tested to outperform the competition
  • High-strength, shatter resistant, 0.6 liter reservoir
  • Optimally lubricates while your machines are running
  • Provides accurate, reliable lubrication for every lube point
UPC Product: 00755652364764
Family Code: FAMMPM
Unit of Measure: EA
Height: 24.892 CM   |  9.8 IN
Length: 16.5 IN   |  41.91 CM
Width: 10.6 IN   |  26.924 CM
Volume: .992 FT3   |  .028 M3
Chargeable Weight: 10.326 LBS  | 4.682 KG

Technical Specifications

Type Pneumatic Piston Pump
Air Inlet Size (in) 1/4
Air Inlet Size (mm) 6.35
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application In-Plant Machinery
Compatible Material Oil
Fluid Outlet Size (in) 0.25
Fluid Outlet Size (mm) 6.3500
Fluid Outlet Thread Type NPT
Includes 低液位, 低レベル, Low Level, Bajo nivel
Maximum Air Inlet Pressure (bar) 12.07
Maximum Air Inlet Pressure (kPa) 1207
Maximum Air Inlet Pressure (psi) 175
Maximum Working Pressure (bar) 241
Maximum Working Pressure (kPa) 24100
Maximum Working Pressure (psi) 3500
Model LubePro
Power Type Pneumatic
Reservoir Size (gal) 0.159
Reservoir Size (L) 0.6
Series A2800
Weight (lb) 10.58
Wetted Material Zinc-Plated Steel, Casting Aluminum ZL101, Magnet, Plastic POM, Polycarbonate, Buna-N, PTFE, PEEK
Compatible Metering Device Series Progressive, Single Line Parallel
Minimum cST Grade (cST) 40
Overall Depth (cm) 13
Overall Depth (in) 5.1
Overall Depth (mm) 130
Overall Height (cm) 31.8
Overall Height (in) 12.53
Overall Height (mm) 318
Overall Width (cm) 17.3
Overall Width (in) 6.8
Overall Width (mm) 173
Weight (kg) 4.80
Maximum Working Pressure (MPa) 24.1
