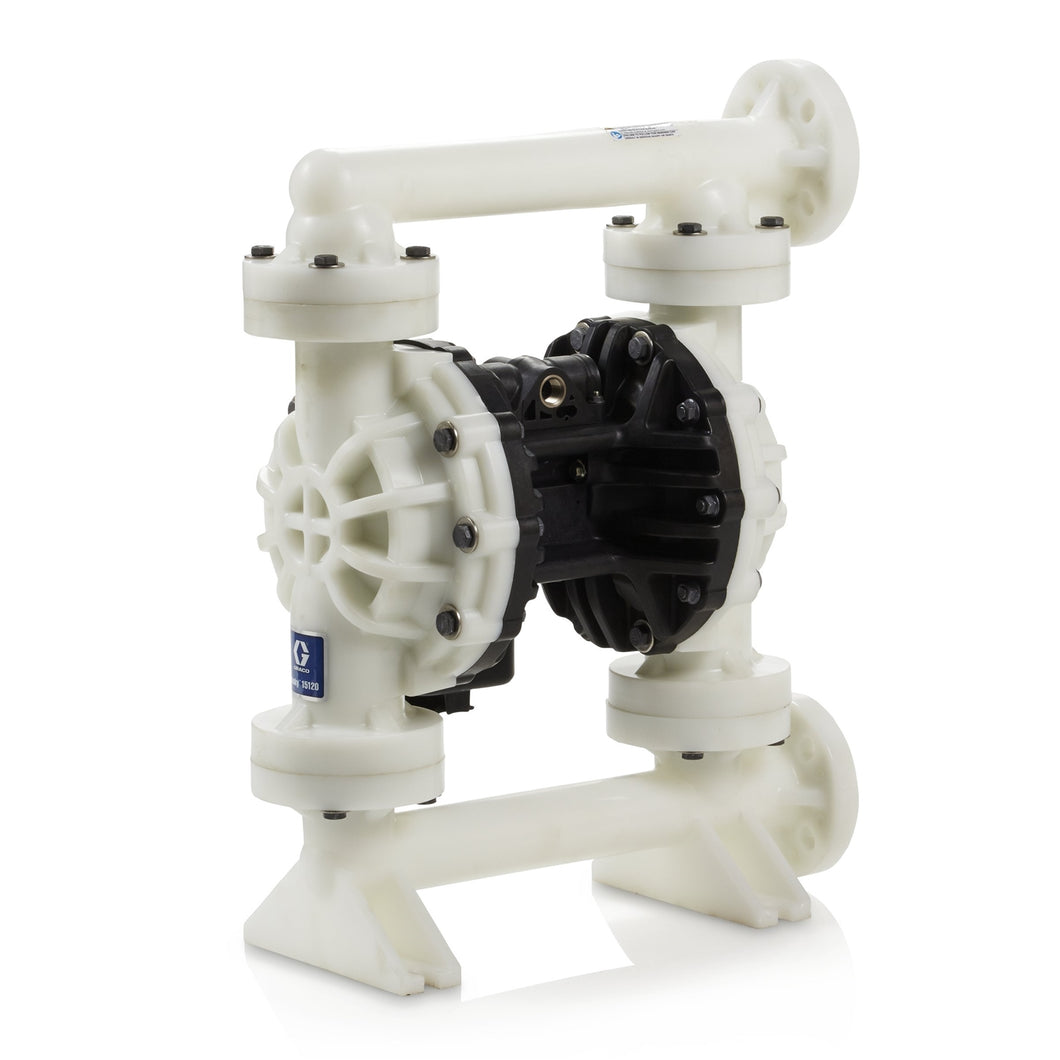

Graco Husky 15120 PP Pump, Center Flange, PP Center Section, PP Seats, PTFE Balls & PO Diaphragm

Graco Husky 15120 PP Pump, Center Flange, PP Center Section, PP Seats, PTFE Balls & PO Diaphragm

Regular price
$6,510.00
Sale price
$6,510.00
Quantity must be 1 or more


The Husky 15120 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

UPC Product: 00633955679443
Family Code: FAMAOD
Unit of Measure: EA
Height: 28.8 IN   |  73.152 CM
Length: 18 IN   |  45.72 CM
Width: 24 IN   |  60.96 CM
Volume: 7.2 FT3   |  .204 M3
Chargeable Weight: 74.95 LBS  | 33.981 KG

Technical Specifications

Type Pneumatic Diaphragm Pump
Air Exhaust Port Size (in) 1
Air Exhaust Port Thread Gender Female
Air Exhaust Port Thread Type NPT
Air Inlet Size (in) 1/2
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Ball Material PTFE
Center Section Material Polypropylene
Compatible Material Antifreeze, Detergents, Windshield Washer Fluid, Diesel Exhaust Fluid, Cutting Oil, Water, Water - Wastewater Treatment, Water, Water - Wastewater Transfer
Diaphragm Material PTFE Overmold
Fluid Inlet Size (cm) 3.81
Fluid Inlet Size (in) 1-1/2
Fluid Inlet Size (mm) 38.1
Fluid Inlet Thread Gender Female
Fluid Outlet Size (cm) 3.81
Fluid Outlet Size (in) 1-1/2
Fluid Outlet Size (mm) 38.1
Fluid Outlet Thread Gender Female
Fluid Section Material Polypropylene
Manifold Configuration Center Port
Manifold O-Ring Material PTFE
Material Polypropylene
Maximum Air Consumption (SCFM) 85
Maximum Air Pressure (bar) 8.6
Maximum Air Pressure (kPa) 860
Maximum Air Pressure (psi) 125
Maximum Cycle Rate (CPM) 183
Maximum Flow Rate (GPM) 120
Maximum Flow Rate (L/min) 454
Maximum Fluid Pressure (bar) 8.6
Maximum Fluid Pressure (kPa) 860
Maximum Fluid Pressure (psi) 125
Maximum Operating Temperature (°C) 66
Maximum Operating Temperature (°F) 150
Maximum Solid Size (cm) 0.635
Maximum Solid Size (in) 0.25
Maximum Solid Size (mm) 6.35
Minimum Operating Temperature (°C) 0
Minimum Operating Temperature (°F) 32
Minimum Storage Temperature (°C) 0
Minimum Storage Temperature (°F) 32
Model Husky
Power Source Air
Seat Material Polypropylene
Series 15120
Standards Met CE
Weight (lb) 57
Maximum Fluid Pressure (MPa) 0.86
Maximum Air Pressure (MPa) 0.86
Connection Type Center Flange ANSI/DIN
diaphragm_compatible_material PTFE
