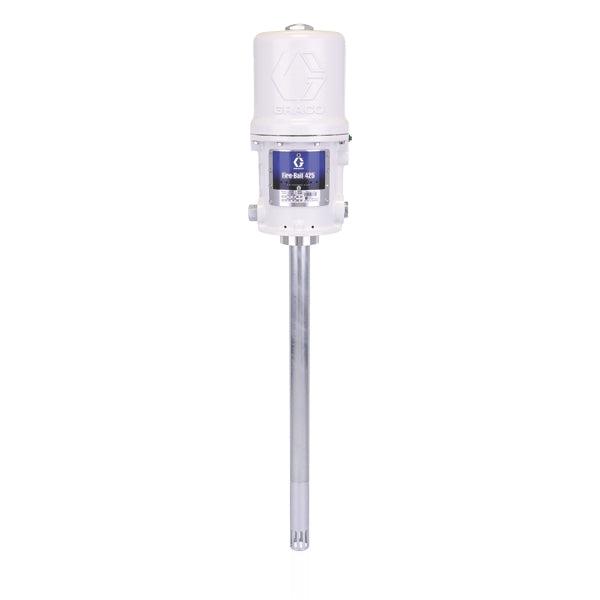

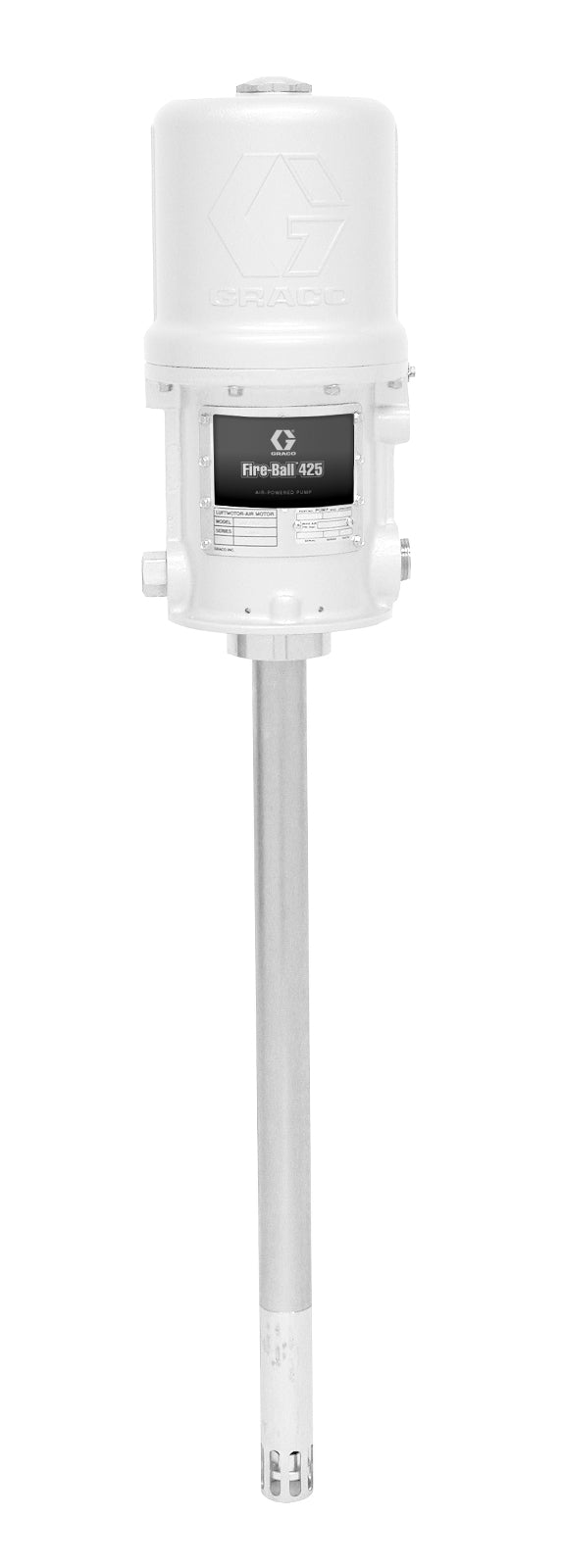

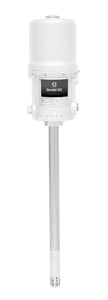

Graco Fire-Ball® 425 Series 55 kg (120 lb). Drum Grease Pump
Graco Fire-Ball® 425 Series 55 kg (120 lb). Drum Grease Pump

Graco Fire-Ball® 425 Series 55 kg (120 lb). Drum Grease Pump

Regular price
$6,940.00
Sale price
$6,940.00
Quantity must be 1 or more


The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

The Fire-Ball 425 is the pump of choice for your most demanding high volume applications.

  • Durable - Thick cast aluminium air motor housing offers unmatched durability.
  • Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
  • Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximise seal life.
  • Corrosion-Resistant - Corrosion-resistant design utilises liquid salt nitriding, nickel plating, stainless steel, aluminium and chrome on key components for longer life.
UPC Product: 00633955774063
Family Code: FAMFR4
Unit of Measure: EA
Height: 10.8 IN   |  27.432 CM
Length: 52.5 IN   |  133.35 CM
Width: 9.6 IN   |  24.384 CM
Volume: 3.15 FT3   |  .089 M3
Chargeable Weight: 46 LBS  | 20.87 KG

Technical Specifications

Type Pneumatic Piston Pump
Air Inlet Size (in) 0.5
Air Inlet Size (mm) 12.7
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Air Motor Effective Diameter (in) 4.25
Application Industrial
Compatible Material Grease
Cycles Per Gallon 165
Fluid Inlet Type 开槽, スロット付き, Slotted, Slotted, Rainuré, Ranurado, 슬롯, Geschlitzt, Gesleufd, Scanalato
Fluid Outlet Size (in) 3/8
Fluid Outlet Size (mm) 9.525
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
For Use With 油脂, グリース, Grease, Grease, Graisse, Grasa, 그리스, Fett, Smeermiddel, Grasso
Maximum Air Inlet Pressure (bar) 6.9
Maximum Air Inlet Pressure (kPa) 690
Maximum Air Inlet Pressure (psi) 100
Maximum Continuous Cycle Rate (CPM) 60
Maximum Flow Rate (GPM) 0.33
Maximum Flow Rate (L/min) 1.25
Maximum Intermittent Cycle Rate (CPM) 60
Maximum Working Pressure (bar) 517
Maximum Working Pressure (kPa) 51700
Maximum Working Pressure (psi) 7500
Model Fire-Ball
Power Type Pneumatic
Pump Ratio 75:1
Seal Material Nitrile Rubber
Series 425
Sound Power Level (dB(A)) 94.62
Sound Pressure Level (dB(A)) 80.85
Throat Seal Type 刮环, ワイパー, Wiper, Wiper, Racleur, Rascador, 와이퍼, Abstreifer, Afstrijker, Braccio
Weight (lb) 30
Wetted Material CS, Steel, Brass, Aluminum, Leather
Weight (kg) 1.3620
Maximum Working Pressure (MPa) 51.7
