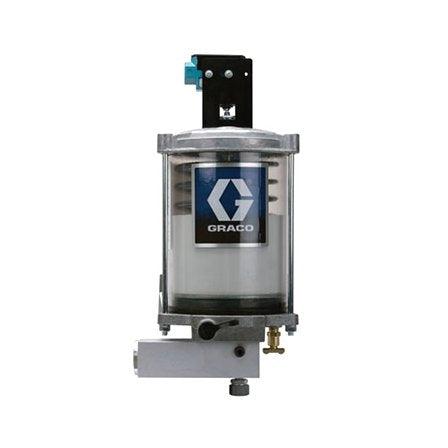

Graco E-Series™ Pump and Reservoir Assembly - 6 lb. (2.72 kg) Plastic Grease, 1/4 in. NPSF

Graco E-Series™ Pump and Reservoir Assembly - 6 lb. (2.72 kg) Plastic Grease, 1/4 in. NPSF

Regular price
$1,775.00
Sale price
$1,775.00
Quantity must be 1 or more


The E-Series pump is a great, minimum cost, entry level alternative to standard pneumatic pump products. This all-in-one pump package comes complete with no assembly required and is easy to install. All pump packages include high-pressure rupture disc assembly and lube outlet check valve. Great for any application where price is a concern and installation time is at a premium.

  • Easy field installation of accessories without disturbing existing plumbing
  • Smart pump design with few moving parts ensures long-lasting dependability
  • Lubriquip part number 521-301-035
UPC Product: 00633955351363
Family Code: FAMMPM
Unit of Measure: EA
Height: 13.2 IN   |  33.528 CM
Length: 12 IN   |  30.48 CM
Width: 12 IN   |  30.48 CM
Volume: 1.1 FT3   |  .031 M3
Chargeable Weight: 15 LBS  | 6.8 KG

Technical Specifications

Type Pneumatic Piston Pump
Application In-Plant Machinery
Compatible Material Grease
Maximum Working Pressure (bar) 137.9
Maximum Working Pressure (kPa) 13790
Maximum Working Pressure (psi) 2000
Model E-Series
Power Type Pneumatic
Reservoir Size (lb) 6
Maximum Working Pressure (MPa) 13.8
