Graco 563200 Single Ball Check Valve

Graco 563200 Single Ball Check Valve

Regular price
$52.00
Sale price
$52.00
Quantity must be 1 or more


Feel free to call or chat with us for recommendations.

📦 Ships in 6-10 days, shipping times may vary
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

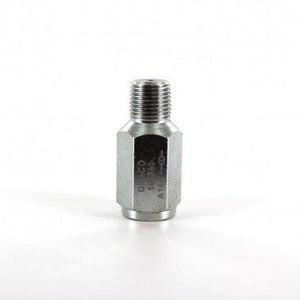

Single Ball Check Valve - 35 psi Nominal Cracking Pressure, 1/8 in NPSF (F) x 1/8 in NPTF (M), Steel, 5,000 psi

Single Ball Steel Check Valves are designed for use in hydraulic or lubrication systems with pressures up to 5000 PSI. Available in two models for use as inlet or outlet check valves. A symbol stamped on the body indicates flow direction. The standard type ball and spring principle is used.

Features
• Positive seal prevents leakage and backflow
• Compact and easy to install

Application Compressor Equipment
Ball Material Steel
Body Material Steel
Compatible Material Oil, Grease
Inlet Size (in) 1/8
Inlet Thread Gender Female
Inlet Thread Type NPT
Maximum Working Pressure (MPa) 34.5
Maximum Working Pressure (psi) 5000
Number of Balls Single Ball
Outlet Size (in) 1/8
Outlet Thread Gender Female
Outlet Thread Type NPS
Type Check Valve
