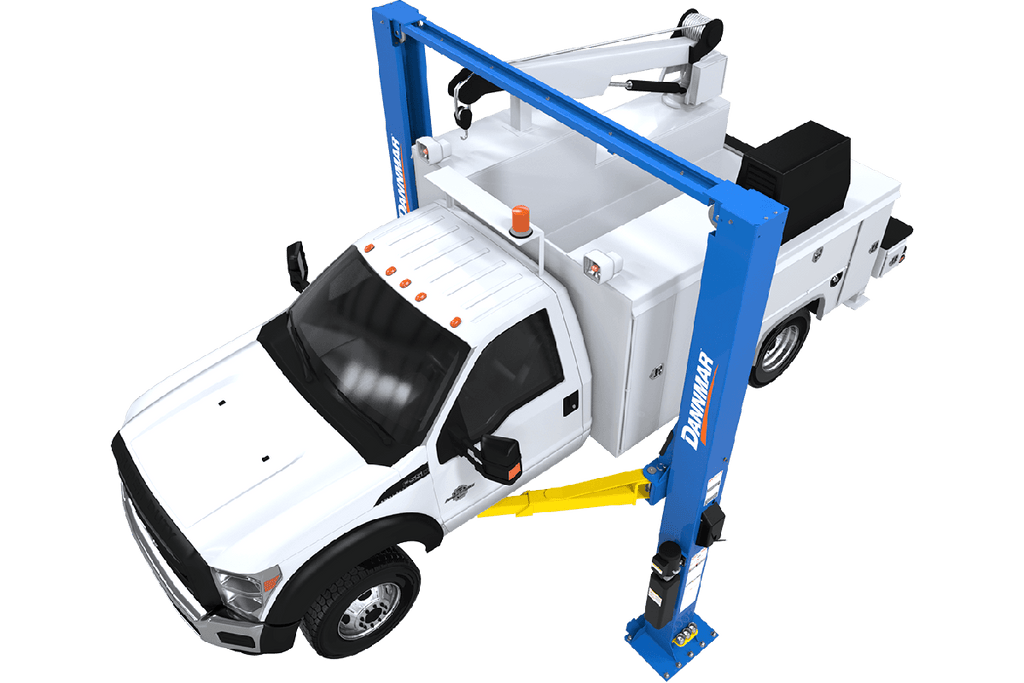

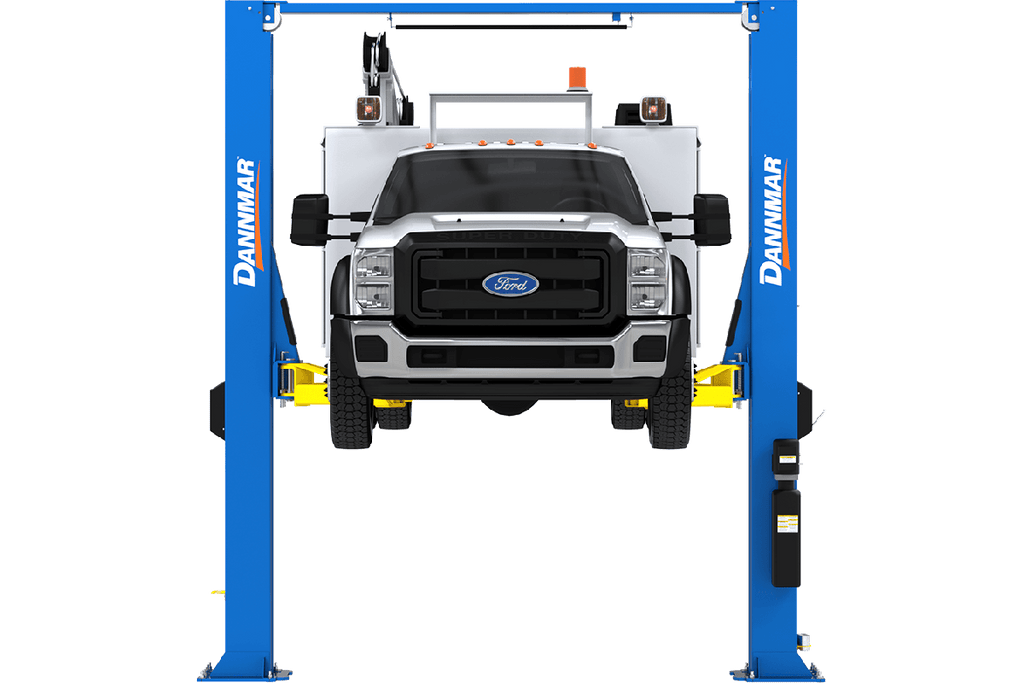

Dannmar D2-15C Symmetric Heavy-Duty Two-Post Lift
Dannmar D2-15C Symmetric Heavy-Duty Two-Post Lift
Dannmar D2-15C Symmetric Heavy-Duty Two-Post Lift

Dannmar D2-15C Symmetric Heavy-Duty Two-Post Lift

$9,449.90

SKU: 5175311

Contact us for more information

5175311 D2-15C 15K Capacity 2-Post / Clearfloor / Triple-Telescoping Arms / Incl Deluxe Adapter Kit

Dannmar has the two-post lift you need with large-by-huge lifting power. If many of your truck customers have a variety of 1-ton diesels (or larger) with 4-wheel drive and extra equipment, you might want to consider Dannmar’s two-post D2-15C. This lift is capable of raising a 15,000 lb. vehicle and is well suited for heavy-duty lifting. Plus the two columns are placed farther apart to clear far-reaching towing mirrors. And the good news is that of course this lift also works well on many passenger cars.

Features

  • 15,000-lb. lifting capacity
  • Padded overhead safety shutoff bar
  • Extended height top-beam provides greater clearance
  • Single-point safety release
  • Dual direct-drive hydraulic cylinders
  • Dual-synchro equalization system for equal lifting
  • Oversized 53” tall carriage for superior strength
  • Electric / hydraulic power system
  • Oversized A36 steel base plates
  • Self-lubricating Dura-glide UHMW polyethylene bearings
  • Safety locks in each column spaced every 3”
  • Automatic arm restraints
  • Heavy-duty 1/2” aircraft-quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue
  • Durable, rubber lift pads with stackable adapters
  • Multi-piece adapter set includes four 6” stackable adapters, four 3” stackable adapters, four polyurethane contact pads and four frame cradle pads. Ideal for trucks and vans with running boards or auxiliary fuel tanks.
  • Convenient storage is included for truck and van adapters
  • Versatile drop-in contact pads with stackable adapters
Style Asymmetric
SKU# 5175313
Lifting Capacity 15,000 lbs. (6,804 kg)
A - Lowered Height + Pad 6.5" (108 mm)
B - Max. Lift Height (Top Lock) 83" (2,032 mm)
C - Max. Rise 69" (1,753 mm)
D - Height Overall 168.75" (4,286 mm)
E - Width Overall 155.25" (3,943 mm)
F - Width Outside Columns 142.5" (3,620 mm)
G - Width Inside Columns 119.5" (3,035 mm)
H - Drive-Thru Clearance 105” (2,663 mm)
I - Floor to Top Switch 162.75” (4,131 mm)
J - Arm Reach 37.25" (946 mm) - 58” (1,473 mm)
Max. Load per Arm 3,750 lbs. (1,701 kg)
Time to Full Rise 55 seconds
Noise 45 dB
Motor 220 VAC / 60 Hz / 1 Ph
Shipping Weight 2,684 lbs. (1,217 kgs)
Shipping Dimensions
177" x 29" x 42" (4,495 mm x 736 mm x 1,066 mm)
