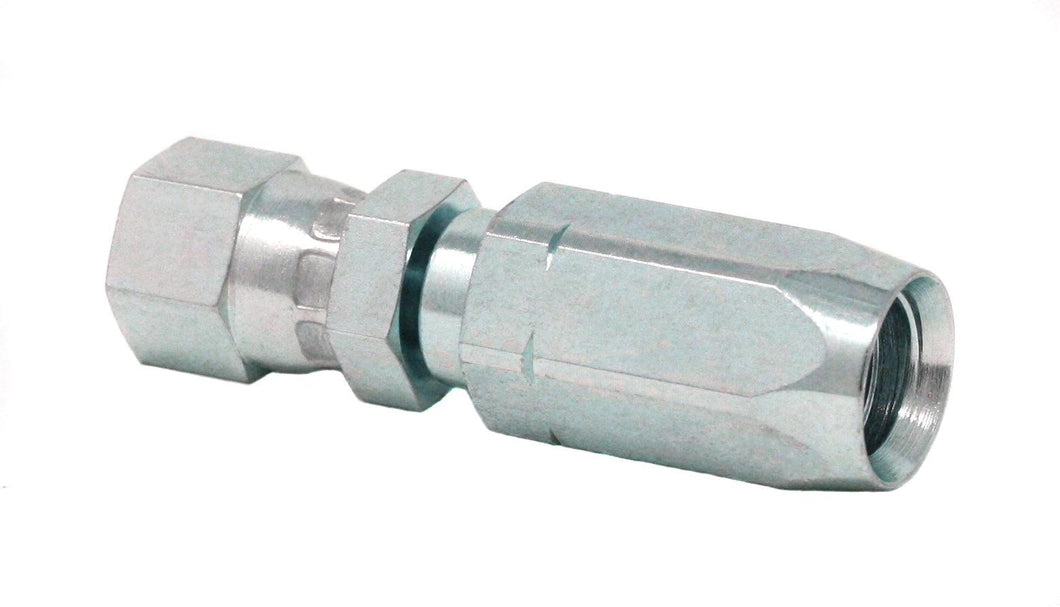

Field-Installable Swivel Hose End Fitting - 1/4 in. ID Hose, #4 JIC, SAE 7/16-20 female

Field-Installable Swivel Hose End Fitting - 1/4 in. ID Hose, #4 JIC, SAE 7/16-20 female

Regular price
$14.90
Sale price
$14.90
Quantity must be 1 or more


  • Field-Installable Swivel Hose End Fitting

  • 1/4" ID Hose

  • #4 JIC, SAE 7/16-20 female

UPC Product: 00755652319566
Family Code: FAMCPT
Unit of Measure: EA
Height: .65 IN   |  1.651 CM
Length: 2.25 IN   |  5.715 CM
Width: .65 IN   |  1.651 CM
Volume: .001 FT3   |  0 M3
Chargeable Weight: .12 LBS  | .05 KG

Technical Specifications

Connection Type Threaded
Hose Inside Diameter (in) 0.25
Hose Inside Diameter (mm) 6
Maximum Working Pressure (bar) 189
Maximum Working Pressure (kPa) 18948
Maximum Working Pressure (psi) 2750
Overall Length (cm) 6
Overall Length (in) 2.2
Overall Length (mm) 56
System of Measurement Imperial
Thread Gender Female
Thread Size (cm) 1.0986
Thread Size (in) 0.4325
Thread Size (mm) 10.9855
Thread Type UNF
Maximum Working Pressure (MPa) 18.9
