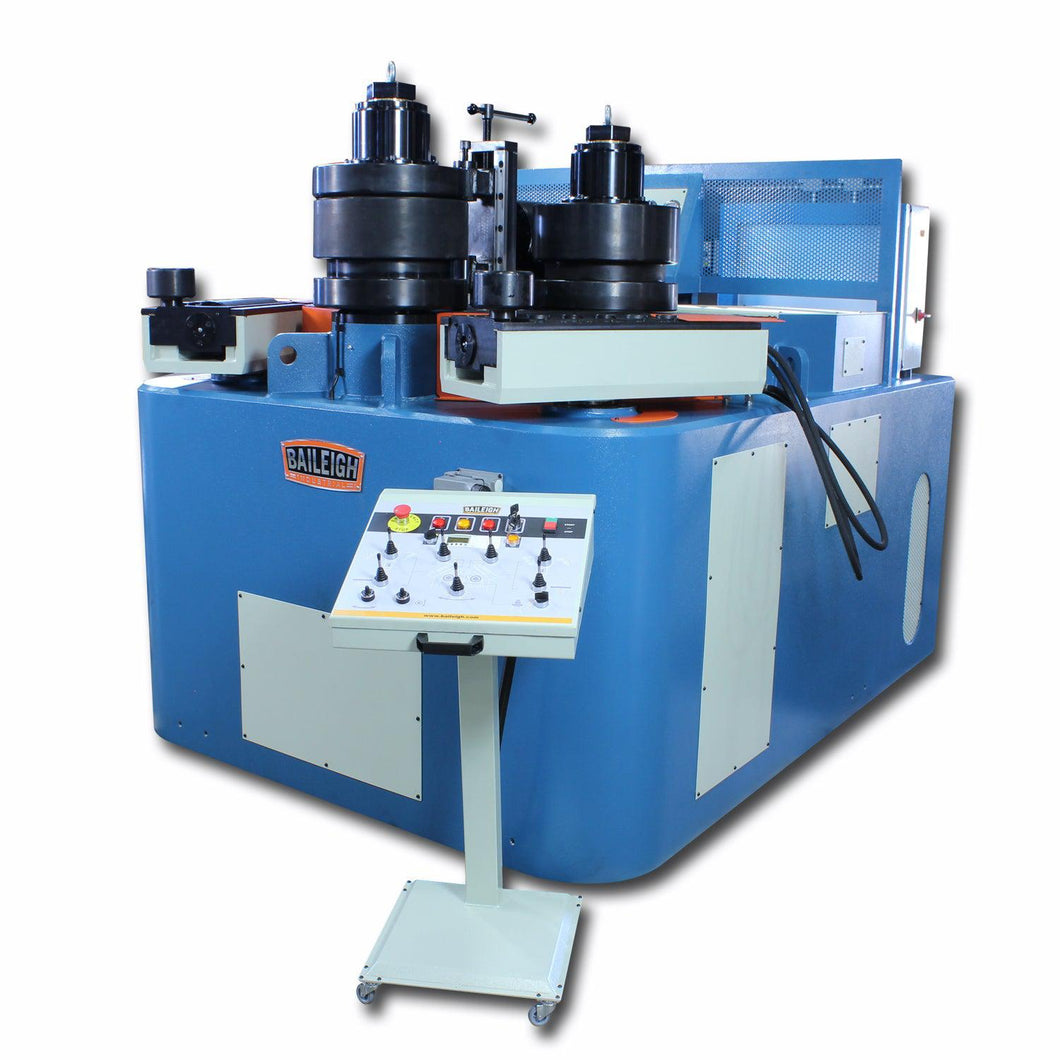

Thisfully-horizontal hydraulic roll benderdraws on the strength of aheavy steel frameto tackle extended production runs of difficult segments in large ODs.
Requires220-volt 3-phase power.
3 variable-speed, driven rollslet you choose the right settings for a given part and material.
Digital readouttakes the hassle out of making repeatable parts.
Movable operator podiumallows you to control every function of the machine at once.
Baileigh covers this angle roller with a1-year parts warrantyas well aslifetime technical support by phone.
Use this roll bender machine for:Structural applications, playgrounds, shipyard building, or any high-production, low-waste project.
Why choose the R-H170 over similar machines?
We use thehighest-grade steelto build this unit’s frame—unlike many other competing roll benders. Why settle for anything less than an upper-shaft diameter of just under 7.5”?

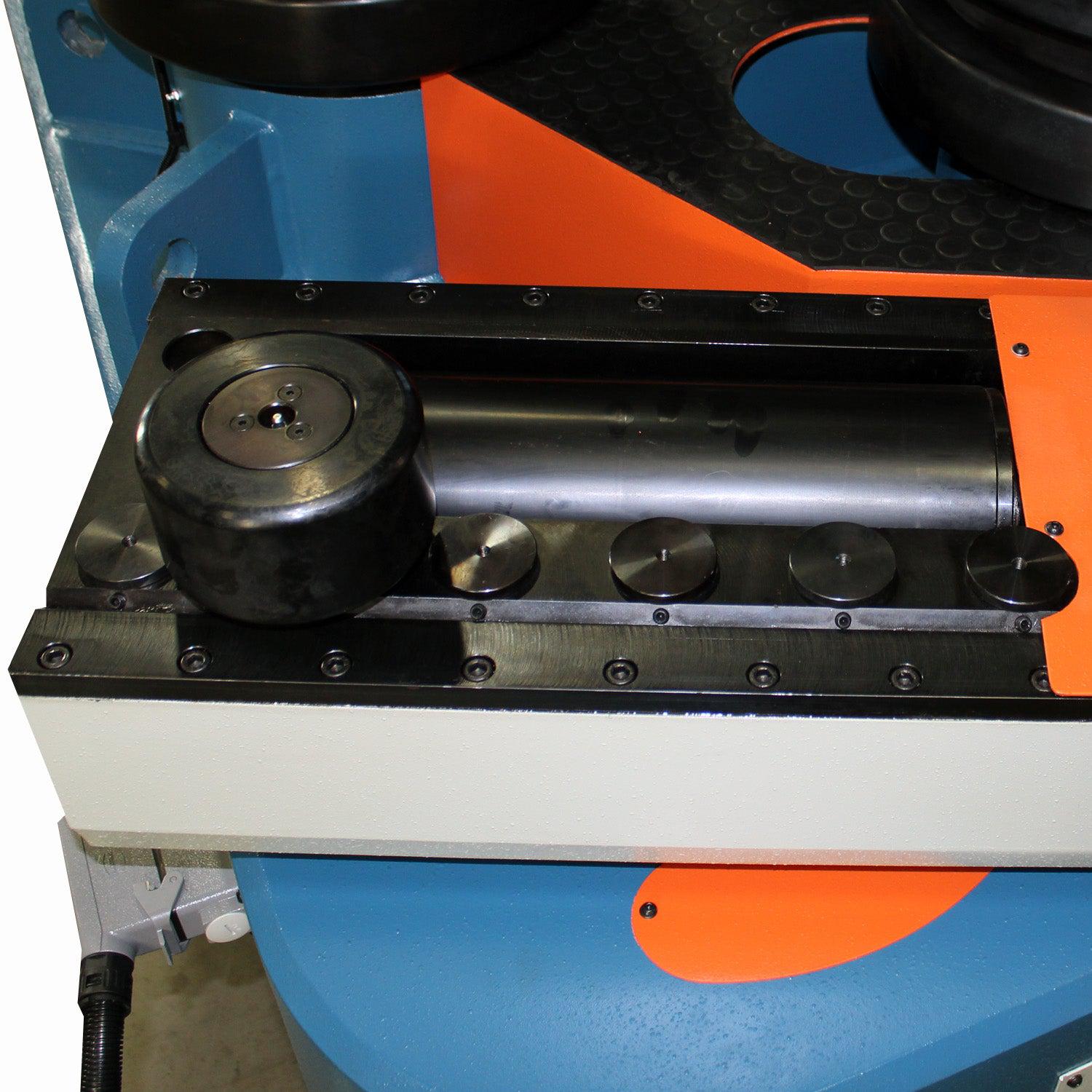

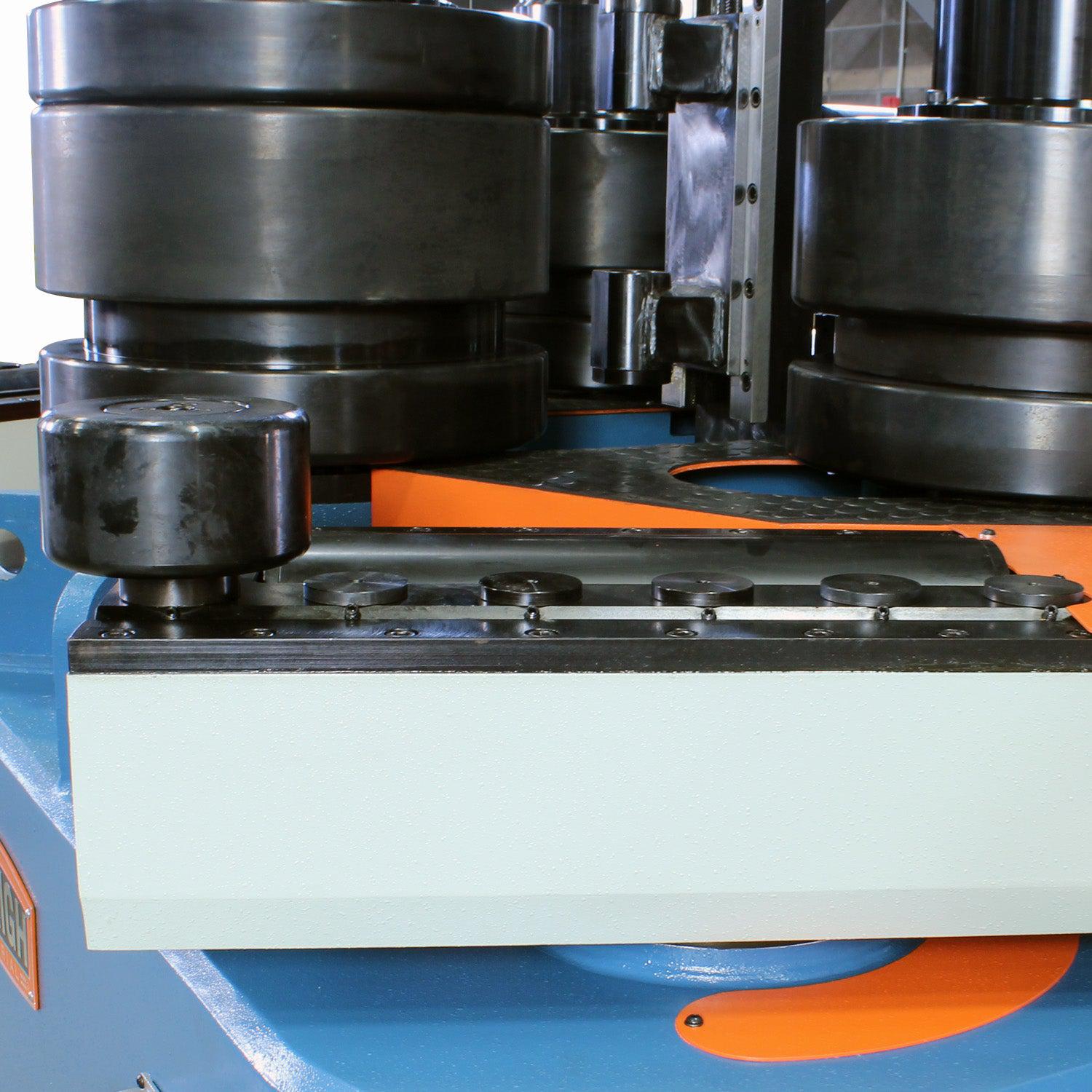

Independently-controlledlateral roll guides and lower bending rollscome standard on a Baileigh machine, whereas other manufacturers might consider these features as upgrades.
Intuitive controls and readouts make programming single-radius bendsvirtually effortless.
We’ll collaborate with you tobuild a custom solutionfor your roll bending needs and applications.
Baileigh’s team of knowledgeable team of reps will providelimitless project advice and machine troubleshooting by phone.
SPECIFICATIONS
Item Number
R-H170
Roll Adjustment
Hydraulic
Pipe Capacity
Size: 6" (sch. 40) / Min. Dia.: 98"
Square Tube Capacity
Size: 4.7" (.315")
Solid Round Capacity
Size: 4" / Min. Dia. 40"
Flat Bar Easy Way
Size: 9.75" (1.5") / Min. Dia. 40"
Flat Bar Hard Way
Size: 5.875" (1.375")/ Min. Dia.: 40"
Lower Shaft Dia.
6.69"
Upper Shaft Dia.
7.48"
Control
DRO
Motor
5.3 hp
Pinch
Double
Power
220V 3- phase
Shipping Weight
21500lbs
Material Type
All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional Tooling
Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Dimensions L x W x H
94.5" x 146" x 69"
* specifications subject to change without notice.
