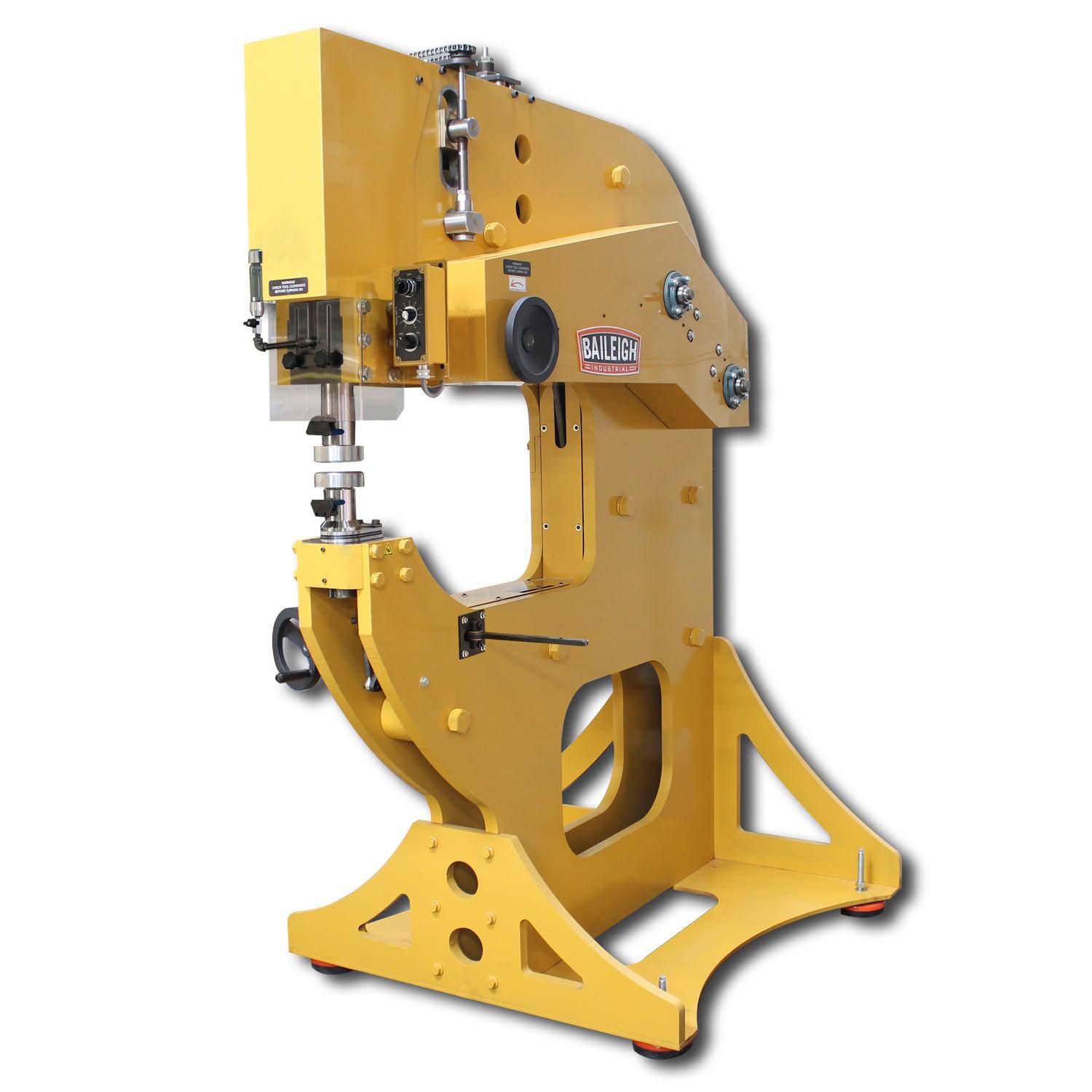

Our largest power hammer, the MH-37HD can shape4 or 5 pieces of metal at oncefor fast production of multiple parts. A1½”-thick steel plate framekeeps the machine rigid.
37” throat depthcan handle large or pre-bent panels.
0 to 1,500 beatsper minute (inverter-driven variable speed).

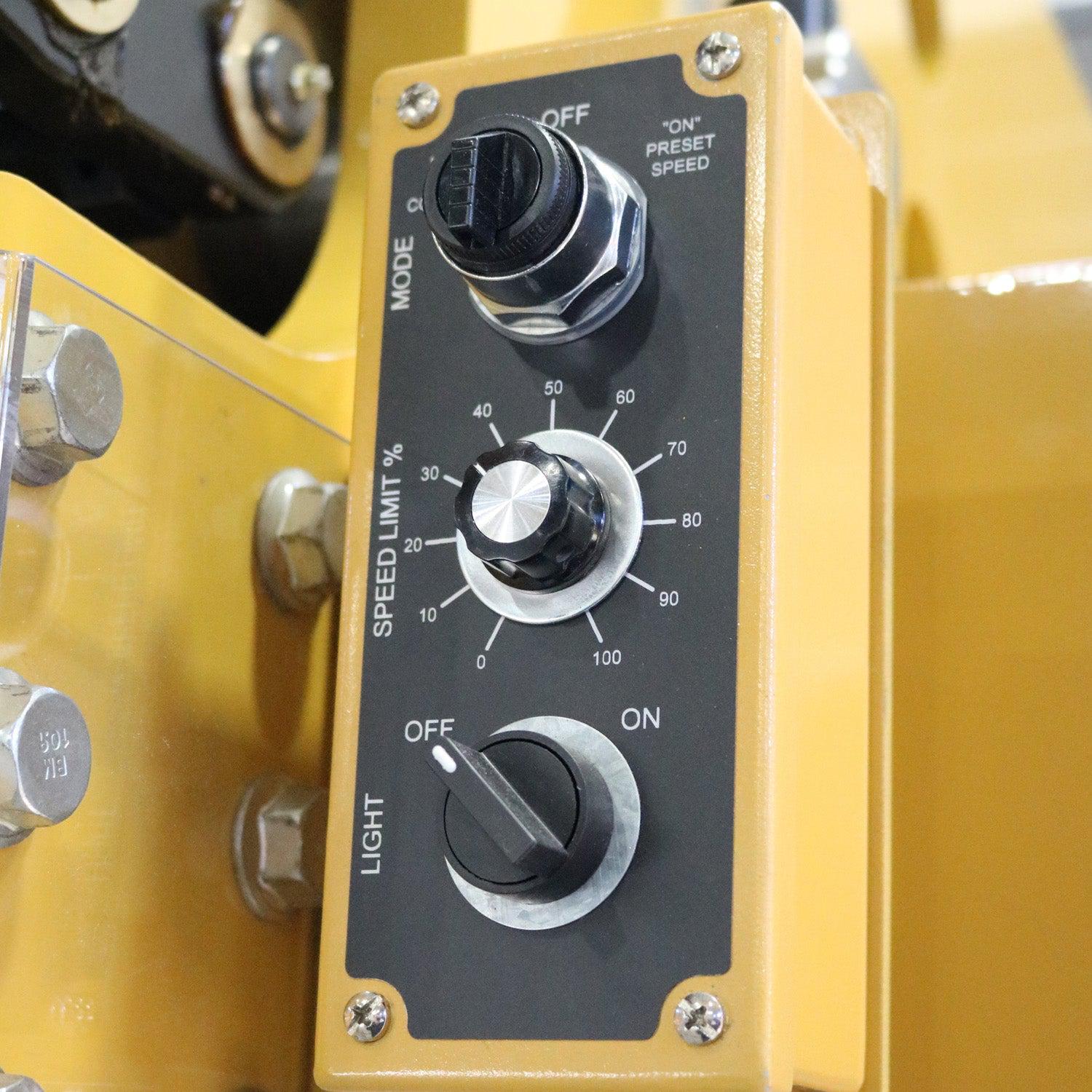

Adjust the speed via thefoot pedalor operator panel.

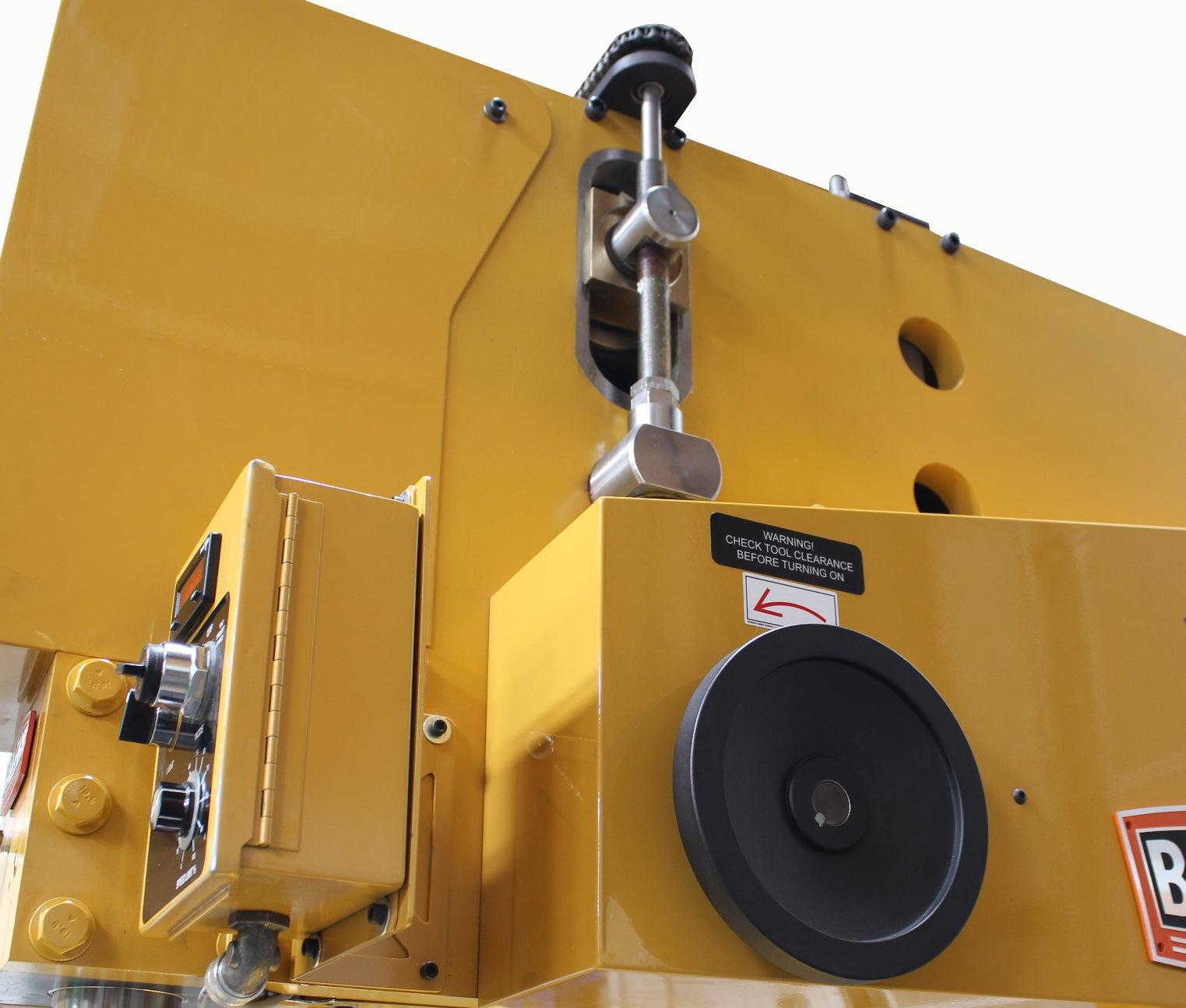

On-the-fly stroke adjustments range from 0.1” to .750”.
⅛” steeland ¼” soft aluminum shrinking capacity.
Runs on220-volt 3-phasepower.
Switch between rigidPullmax®-style modeand spring-slappingYoder® style mode, depending on your project.
Use rigid mode for short stroke shaping and flanging. No "give" between die heads.
Non-rigid mode creates a dead blow hammering effect, suitable for aggressive shrinking and planishing.
Tooling changes take only a few seconds. Release the die, pull out the pin, switch, and replace the pin.
Includes7 die sets:
Large shrink die set.
Flat top master die.
Linear stretch die.
12”, 24”, and 36” radius dies.
1” x 6” planish die.
Other large radius dies and shrinking and stretching dies are available.

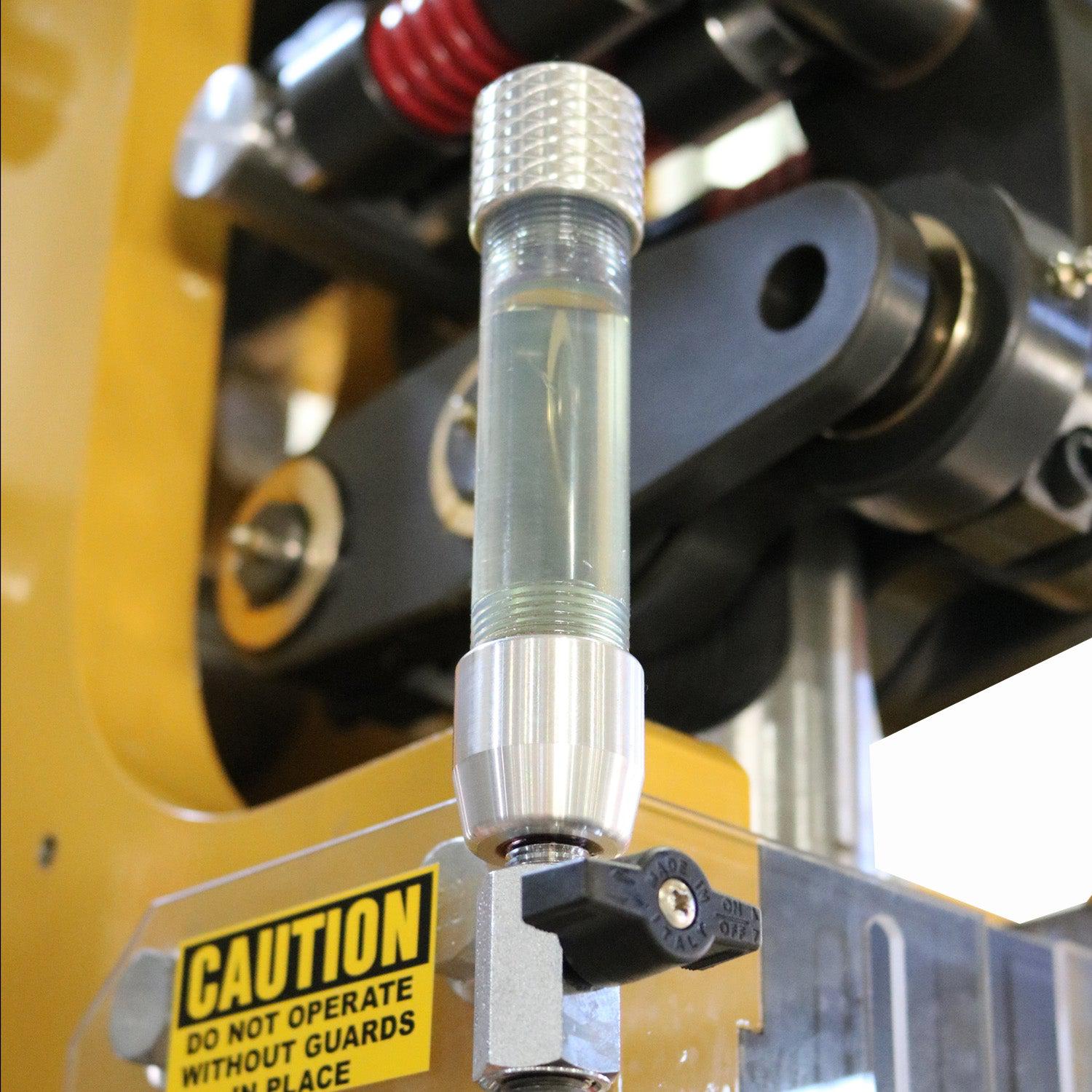

Convenient maintenance withgrease zerks, exposed and easy to reach.
Main hammeringsprings are replaceable, so the power hammer lasts longer.
Comes standard with a work light.
Massive steel plate frameprevents deflection and allows this power hammer to deliver maximum force for fast, high-quality shaping.
Covered by a1-year parts warranty.
We offerlifetime technical supportby phone, provided by a team of experienced metalworkers.
Recommended for:Large automotive shops making off-road vehicles.
SPECIFICATIONS
Item Number
MH-37HD
Country of Manufacture
United States
Motor Hp
5 HP
Speed
0 – 1500 beats / minute
Mild Steel Capacity
1/8"
Tooling Height Adjustment
2"
Throat Depth
37"
Capacity (Mild Steel)
.125"
Aluminum Capacity
.250" Soft
Length Of Stroke Adj
0.1" - 0.75"
Power
220V / 3-phase
Shipping Weight
6000lbs
Shipping Dimensions (Inches)
79x60x100
* specifications subject to change without notice.
