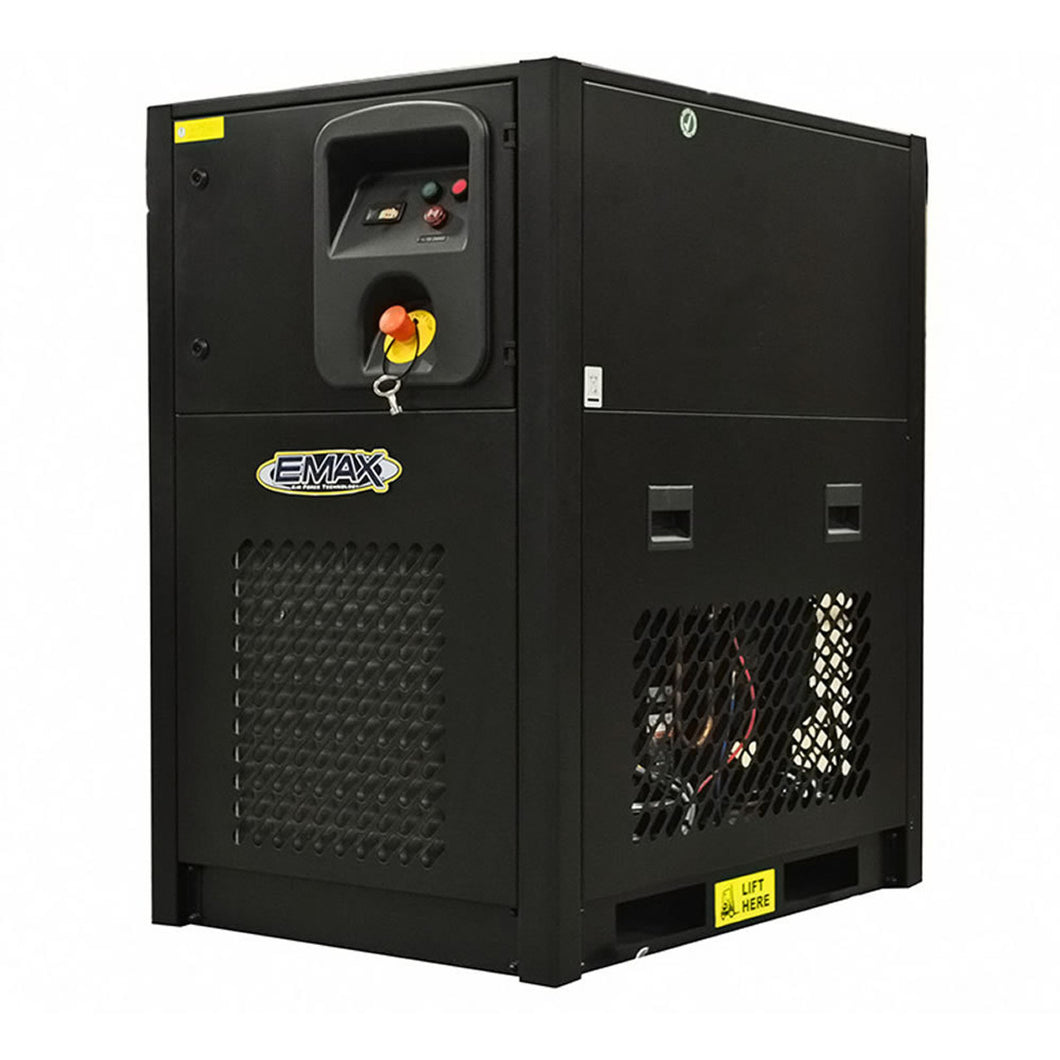

EMAX EDRCF4600575 575CFM 3 PHASE 460 VOLT Refrigerated Air Dryer w/ Built in Coalescing Filter and Auto drain

EMAX EDRCF4600575 575CFM 3 PHASE 460 VOLT Refrigerated Air Dryer w/ Built in Coalescing Filter and Auto drain

Regular price
$16,271.00
Sale price
$16,271.00
Quantity must be 1 or more




Features




Premium Industrial 575 CFM Refrigerated Air Dryer

·         Chills the air to condense & remove moisture; runs on 460 Volt, 3-phase

·         230 PSI max; max inlet temp: 150°F; 37°F - 50°F dewpoint; designed for 3" pipe

·         Max ambient temperature: 120°F; for use with compressors that do not have aftercoolers

·         5 Micron Pre-Filter

·         Removes larger dust & dirt particles from the air supply so the dryer can work more efficiently

·         1 Micron Active Coalescing Filter

·         Removes oil & water particles from the air; cleaner, drier air improves tool life & project results

·         Refrigerated Air Inlet Inner Cooler

·         Trouble-free high temperature cooling for consistent, dry air

·         Automatic Drain System

·         Eliminates the need for daily maintenance

·         Outlet Air Baffle Heater

·         Prevents condensation on outlet air piping

·         Side Mounted Condenser & Fan Motor

·         Easy to reach & service through the cabinet doors - no screws to slow you down

·         Uses environmentally friendly R134A refrigerant

·         Heavy Duty Steel Cabinet & Safety Shut-Off Valve

·         Meets the demands of industrial use; valve shuts the compressor down if it gets over or below a safe temperature

·         2 Year Limited Factory Warranty; 5 Years On Heat Exchanger



Air Compressor Accessories Specifications
Specification Value
Product Category Air Compressor Accessories
Air Dryer Voltage 460V 3-Phase
Air Dryer CFM 575
Max PSI 230
Max Inlet Temp. Rating 150
Max Ambient Temp. Rating 120
Non-Cycling Yes
Inlet Fittings 3"
Outlet Fittings 3"
Aftercooler No
Pre-Filter Yes
Post-Filter Yes
Wall Mountable No
Alarm Lights No
Auto Drain Yes
Regenerative No
Rated HP 125
Dryer Magnetic Starter Yes
Dry Amp Draw 10
Weight 500 Pounds
Consumer Warranty 2 Years
Commercial Warranty 2 Years
Product Length 27 Inches
Product Width 31 Inches
Product Height 55 Inches
Power Type Electric
UPC 815002013855
