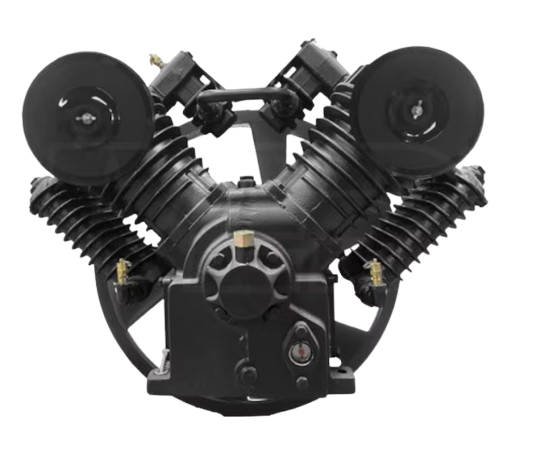

EMAX APP4V1043TR2 10HP 43CFM Displacement 2 Stage Reciprocating Splash Lubricated Bare Pump w/ flywheel

EMAX APP4V1043TR2 10HP 43CFM Displacement 2 Stage Reciprocating Splash Lubricated Bare Pump w/ flywheel

Regular price
$1,471.00
Sale price
$1,471.00
Quantity must be 1 or more


Features

·         Solid Cast Iron Two-Stage 4-Cylinder Piston Pump

·         Rated at up to 60,000 hours* (Based on B-10 Bearing Life Rating)

·         All solid cast-iron - cylinders, crankcase, flywheel, crankshaft & valve plates

·         43 CFM Displacement @ 0 PSI & 36 CFM @ 100 PSI

·         Splash lubricated pumps maximize life and energy savings

·         Designed large with low RPM for long life and quiet operation

·         Ram-Tek - Solid Steel, Heavy Gauge Rods

·         Delivers maximum performance and durability

·         Replaceable bearing on crank journal and on the wrist pin journal

·         Cool-Tek - The Coolest Running Compressors In The Industry

·         Air Stream Technology provides 35% lower operating temperature

·         Reduces moisture build up to increase life span

·         Industrial Grade Ball Bearings

·         For maximum performance and extended pump life

·         High Quality & Reliable Features

·         Oversized site glass and large steel automotive type filters

·         Aftercooler for maximum cooling and twin B-section belt drive

·         Built-in head unloaders designed for continuous run applications

·         Specifications:

·         Maximum PSI of 175

·         Bolt Pattern: 9.25" D x 9.25" W

·         Includes break-in oil; Holds 2.2 quarts of oil

·         1-Year Standard Limited Manufacturer Warranty

·         Extends to 5-years with purchase of Maintenance Kit Model: EFKIT008WB



Specifications
Engine
HP 10
Pump
CFM 43
CFM Rated @ 0 PSI
Pump Material Solid Cast Iron
Max PSI 175 PSI
Oil Sight Glass Yes
Pump Type Two-Stage
After Cooler Yes
Pump Drive Belt Drive
Oil Type Oil Lubricated
Oil System Splash Lubricated
Pump Low Oil Shut-off No
Overview
Product Category Air Compressor Parts
Weight 285 Pounds
Consumer Warranty 1 Year
Product Length 17 Inches
Product Width 29 Inches
Product Height 21 Inches
UPC 810070052294
