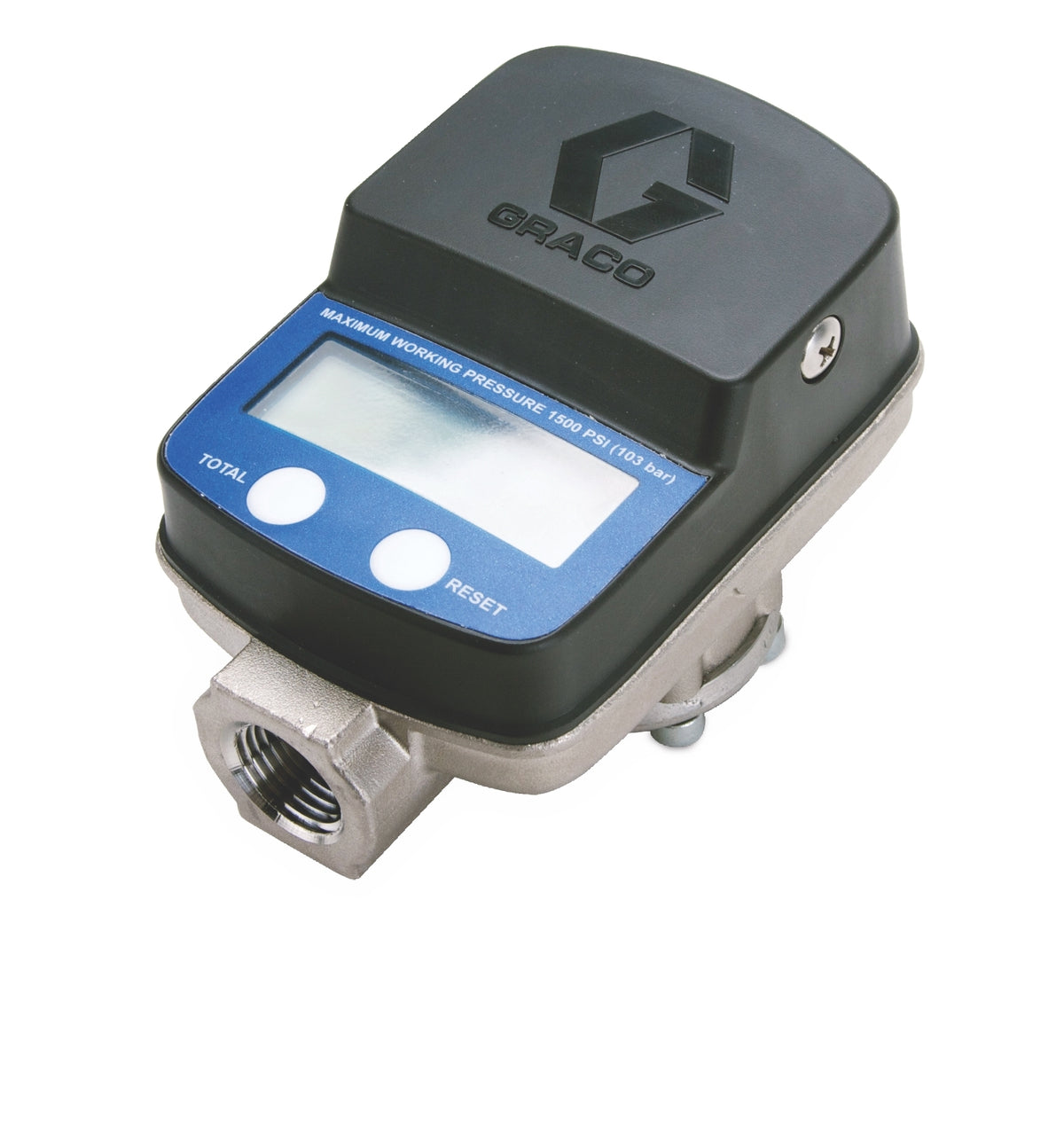

SDI15 Series Medium/High Pressure – Medium/High Flow In-Line Meter for Diesel Exhaust Fluid Applications - BSPP

SDI15 Series Medium/High Pressure – Medium/High Flow In-Line Meter for Diesel Exhaust Fluid Applications - BSPP

Regular price
$629.00
Sale price
$629.00
Quantity must be 1 or more


Tracks totals in two modes – reset for periodic history and

Typical applications include automotive and heavy-duty dealerships, service and fast lube centers, fleet service facilities and in-plant.

  • Durable design for rugged, indoor use
  • Easy to use – dispenses pints, quarts, liters or gallons
  • 0.5 gpm to 15 gpm (1.9 lpm to 57 lpm) flow rate
  • 1500 psi (103 bar) maximum pressure, 1/2 in NPT inlet
UPC Product: 00633955600300
Family Code: FAMDEF
Unit of Measure: EA
Height: 9.6 IN   |  24.384 CM
Length: 8.4 IN   |  21.336 CM
Width: 4.8 IN   |  12.192 CM
Volume: .224 FT3   |  .006 M3
Chargeable Weight: 2.8 LBS  | 1.27 KG

Technical Specifications

Battery Chemistry Alkaline
Battery Size AA
For Use With Diesel Exhaust Fluid, Fluido de escape diésel
Inlet Size (cm) 1.27
Inlet Size (in) 0.5
Inlet Size (mm) 12.7
Inlet Thread Type BSPP
Maximum Flow Rate (GPM) 15
Maximum Flow Rate (L/min) 57
Maximum Operating Temperature (°C) 50
Maximum Operating Temperature (°F) 122
Maximum Working Pressure (bar) 105
Maximum Working Pressure (kPa) 10500
Maximum Working Pressure (psi) 1500
Meter Accuracy (%) ±0.5
Meter Repeatability (%) ±0.15
Minimum Operating Temperature (°C) -20
Minimum Operating Temperature (°F) -4
Unit of Measure Quart, Liter, Gallon, Pint
Weight (kg) 0.82
Weight (lb) 1.8
Wetted Material Stainless Steel, Fluoroelastomer, PBT
Type Electronic In-Line Meter
Compatible Material Diesel Exhaust Fluid
Maximum Working Pressure (MPa) 10.5

;
