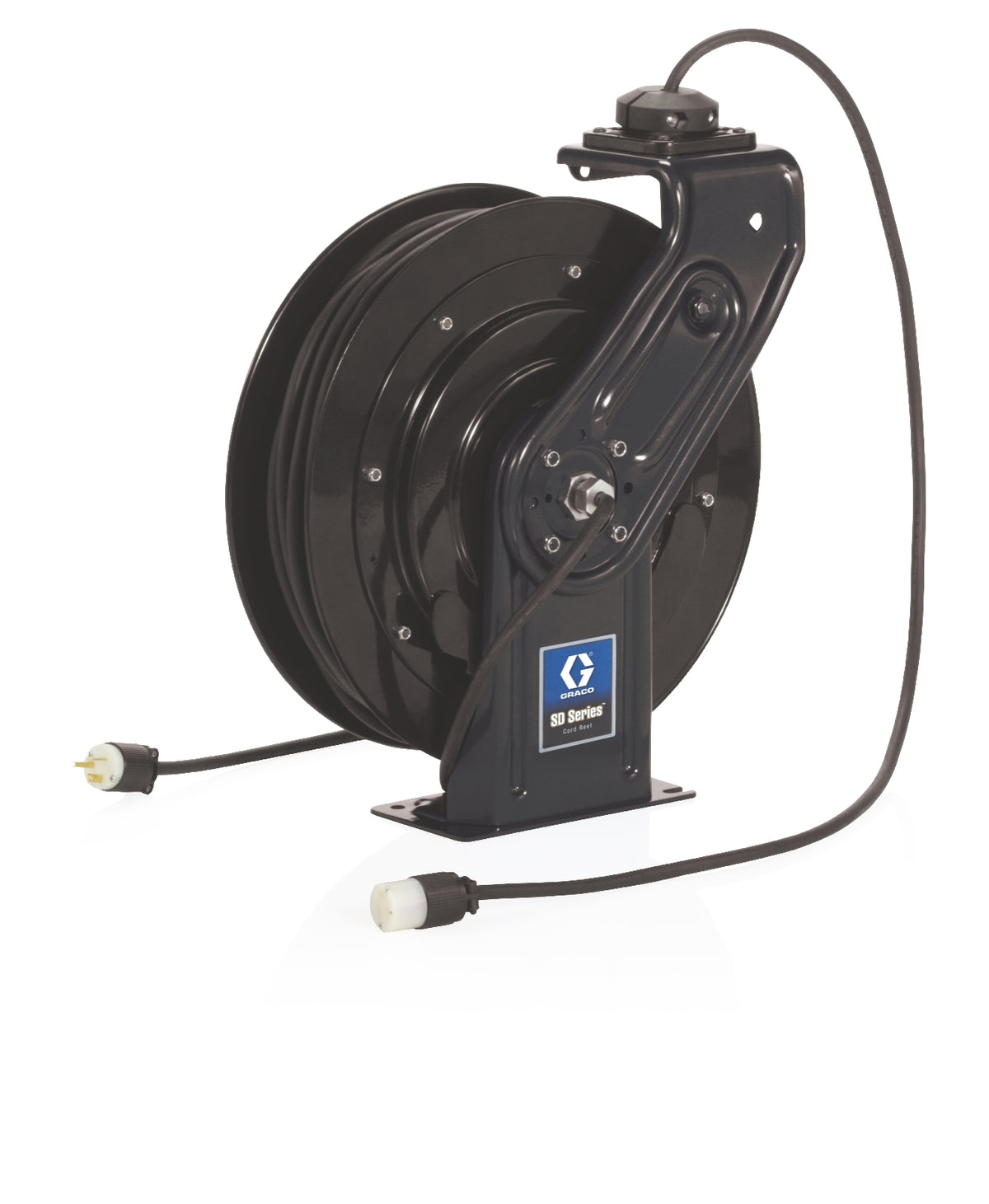

- Heavy-duty steel construction, SD Series size 5.
- 50 foot cord and features a 5 foot lead-in cable.
- Single industrial receptacle
Adjustable Arm - Easily change the arm position to fit more applications. Works on walls, ceilings or bench mounts.
Heavy-Duty Pedestal - High-strength steel construction with rolled edges and ribbed stress points that won't flex or twist.
UPC Product: 00755652331865
Family Code: FAMCRD
Unit of Measure: EA
Height:
21.5 IN
| 54.61 CM
Length:
16.5 IN
| 41.91 CM
Width:
10 IN
| 25.4 CM
Volume:
2.053 FT3
| .058 M3
Chargeable Weight:
38 LBS
| 17.24 KG
Technical Specifications
| Type | Cord Reel |
|---|---|
| Cord Length (ft) | 50 |
| Cord Length (m) | 15 |
| Includes | 单工业插座, Single Industrial Receptacle, Un receptáculo industrial |
| Insulation Type | 承包商, SJOOW, SJOOW |
| Maximum Current (A) | 20 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Overall Height (cm) | 37.59 |
| Overall Height (in) | 14.8 |
| Overall Height (mm) | 375.9 |
| Overall Length (cm) | 35.2 |
| Overall Length (in) | 13.84 |
| Overall Length (mm) | 352 |
| Overall Width (cm) | 11.938 |
| Overall Width (in) | 4.7 |
| Overall Width (mm) | 119.38 |
| Power Cord Connect Type | NEMA 5-20P |
| Reel Color | 黑色, Black, Negro |
| Series | 5 |
| Sound Power Level (dB(A)) | 87 |
| Sound Pressure Level (dB) | 80 |
| Voltage (V ac) | 120 |
| Weight (kg) | 14.5 |
| Weight (lb) | 32 |
| Wire Gauge (AWG) | 12, 12, ¡12 |
| Model | SD |
