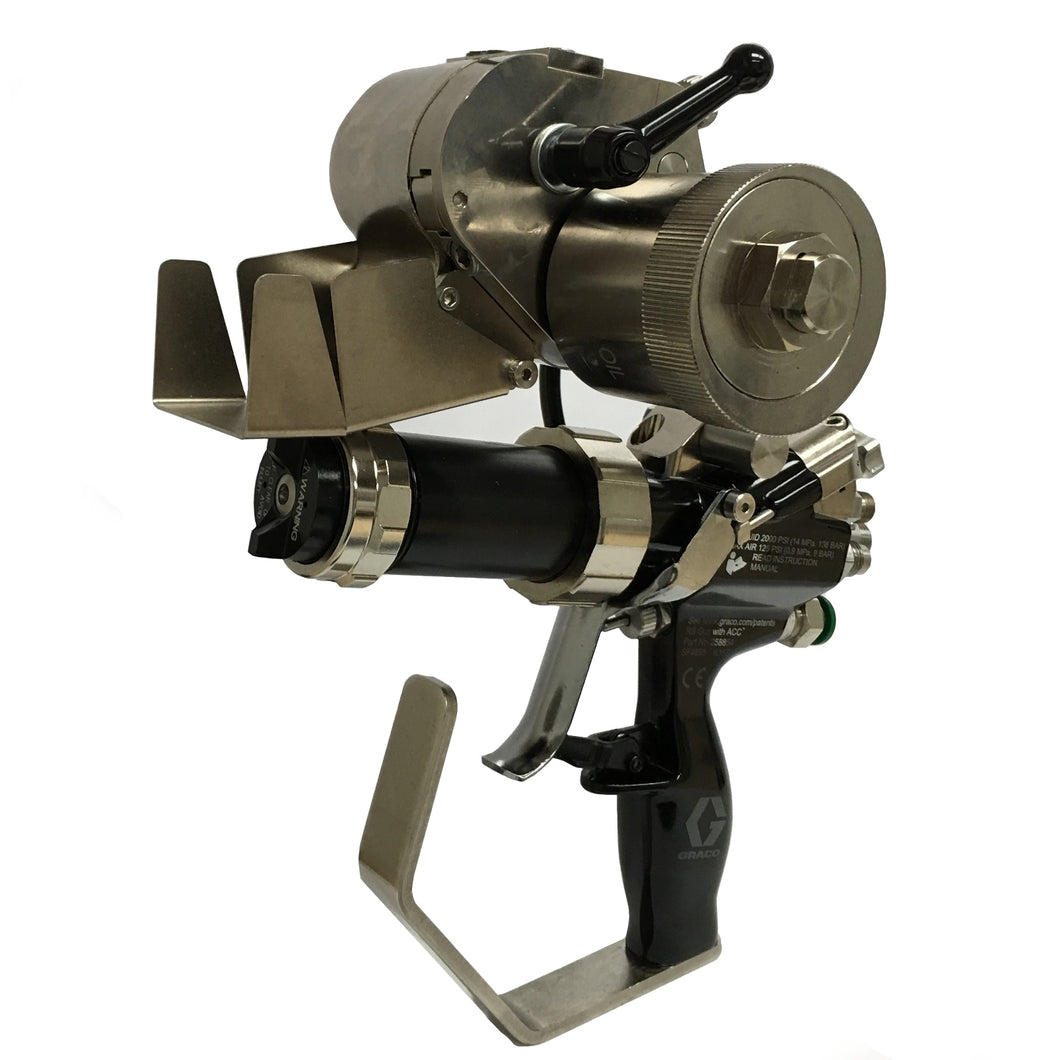

RS Internal Mix High-Flow Chop Gun with Cutter and Tip

RS Internal Mix High-Flow Chop Gun with Cutter and Tip

Regular price
$4,670.00
Sale price
$4,670.00
Quantity must be 1 or more


With the new Graco RS Chop Gun, workers can change the unique "no-cut" blade cartridges in a matter of seconds – compared to 15 minutes with traditional cutter designs. In addition, blades and anvils can be changed right on the production line, resulting in more uptime for your fiberglass reinforced plastics operation.

  • Makes production easier

    • Simple, quick start up and shut down
    • Quick tool-less blade change
    • No need to adjust needle settings after maintenance
  • Improves product quality

    • Lightweight cutter gives better chopping control
    • Easy one-hand cutter speed control
    • Superior spray pattern
  • Improves operator comfort for increased job satisfaction

    • Lighter, ergonomic gun reduces fatigue
    • Lets you quickly adjust anvil tension to correct cut variations due to anvil and blade wear
    • No problems soaking the RS Gun in solvents overnight
  • Saves material costs

    • Air Assist Containment (AAC®) standard on all RS Guns
    • Lower pressure reduces overspray
  • Magnetic Cutter Drum

    • Quick and easy blade changes
    • Magnet in cutter head holds blades in place
  • Constant Control

    • Adjust glass cutting tension output on the production floor in seconds
    • No tools needed to make many adjustments
  • Swivel Feature (Where the fluid line connects to the gun)

    • Allows smooth movement
    • Operator can easily pivot in different directions without kinking the hose
  • Ergonomic Handle

    • Less operator fatigue
  • Lightweight, High-Output Cutter

    • Allows you to get the glass output you need with fewer strands of roving
    • Fewer strands of roving means less chance of tangling, easier handling and more uptime
    • External anvil adjustment lets you quickly and easily adjust anvil tension
UPC Product: 00633955390331
Family Code: FAMGCA
Unit of Measure: EA
Height: 4.8 IN   |  12.192 CM
Length: 16.8 IN   |  42.672 CM
Width: 13.2 IN   |  33.528 CM
Volume: .62 FT3   |  .018 M3
Chargeable Weight: 7.67 LBS  | 3.48 KG

Technical Specifications

Compatible Material Polyester Resin, Gel-Coat
For Use With FRP 系统, FRP システム, FRP System, Sistema FRP
Gun Type Chop Gun
Gun Weight (g) 1116
Gun Weight (kg) 1.12
Gun Weight (lb) 2.46
Gun Weight (oz) 39.36
Includes CST561 喷嘴, CST561 チップ, CST561 Tip, Boquilla CST561, 刀具, カッター, Cutter, cortador
Maximum Air Pressure (bar) 8.6
Maximum Air Pressure (kg/cm²) 9
Maximum Air Pressure (kPa) 860
Maximum Air Pressure (psi) 125
Maximum Fluid Pressure (bar) 138
Maximum Fluid Pressure (kg/cm²) 141
Maximum Fluid Pressure (kPa) 13800
Maximum Fluid Pressure (psi) 2000
Maximum Fluid Temperature (°C) 38
Maximum Fluid Temperature (°F) 100
Minimum Air Inlet Pressure (bar) 5.5
Minimum Air Inlet Pressure (kPa) 550
Minimum Air Inlet Pressure (psi) 80
Model RS
Type Chop Gun
Chop Gun Type With Cutter
Mix Type Internal Mix
