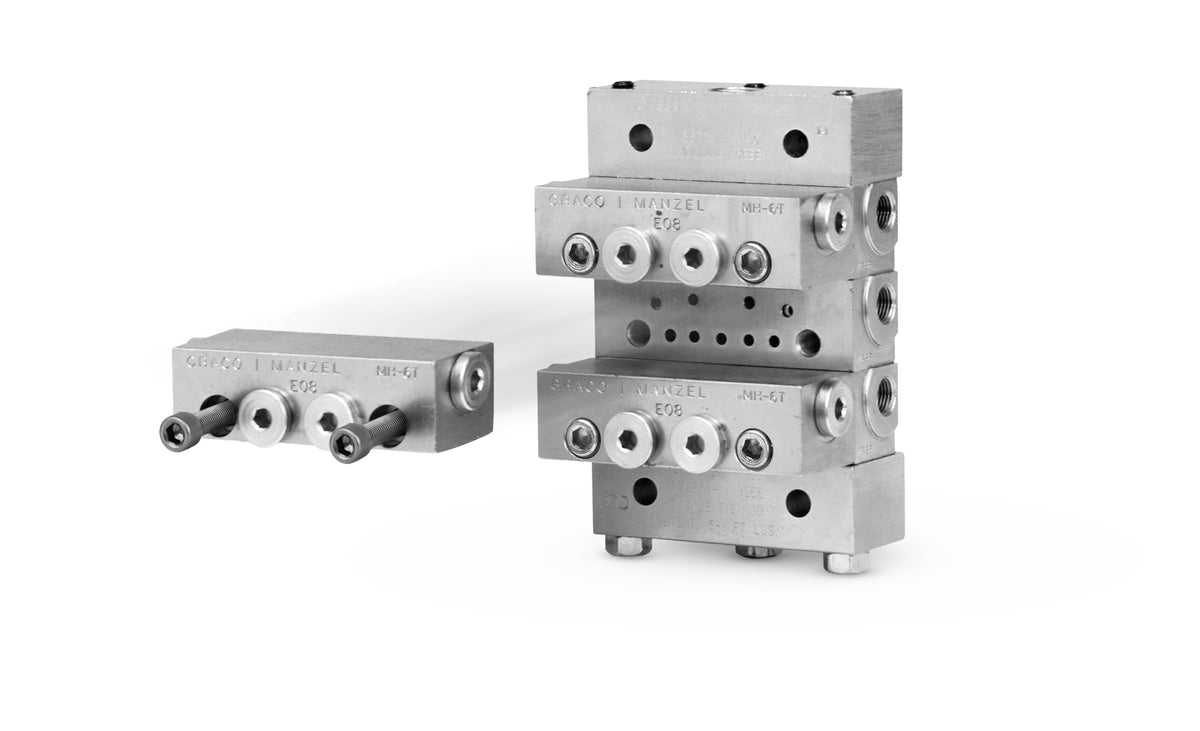

Manzel® MHH Divider Valve - 5 Section Base Plate Assemblies - NPSF

Manzel® MHH Divider Valve - 5 Section Base Plate Assemblies - NPSF

Regular price
$309.00
Sale price
$309.00
Quantity must be 1 or more


Same capable design as the Trabon MSP Series, with even tighter and more exacting tolerances. The Manzel MHH Series delivers highly accurate lube delivery for demanding high pressure grease and oil applications.

For compressors, industrial equipment, and where high-pressure lubrication in required.

  • Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimizing labor cost and maximizing your machine uptime.
  • Can be easily accessorized with magnetic and electronic proximity switch cycle indicators to provide positive assurance of a successful lube event.
  • Built-in outlet check valves ensure accurate lube delivery every time
  • Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting.
UPC Product: 00633955578807
Family Code: FAMCPT
Unit of Measure: EA
Height: 1.2 IN   |  3.048 CM
Length: 3.25 IN   |  8.255 CM
Width: 6.75 IN   |  17.145 CM
Volume: .015 FT3   |  0 M3
Chargeable Weight: 4.73 LBS  | 2.14 KG

Technical Specifications

Maximum Working Pressure (psi) 7500
Inlet Thread Type NPSF
Number of Outlets 10
Maximum Working Pressure (bar) 517
Outlet Thread Type NPSF
Maximum Working Pressure (kPa) 51700
Maximum NLGI Grade #2
Material Steel
Compatible Material Oil, Grease
Type Divider Valve
Divider Valve Series MHH
Application In-Plant Machinery, Compressor Equipment
Model Manzel
Series MHH
Discharge Per Piston Stroke (in³) N/A
