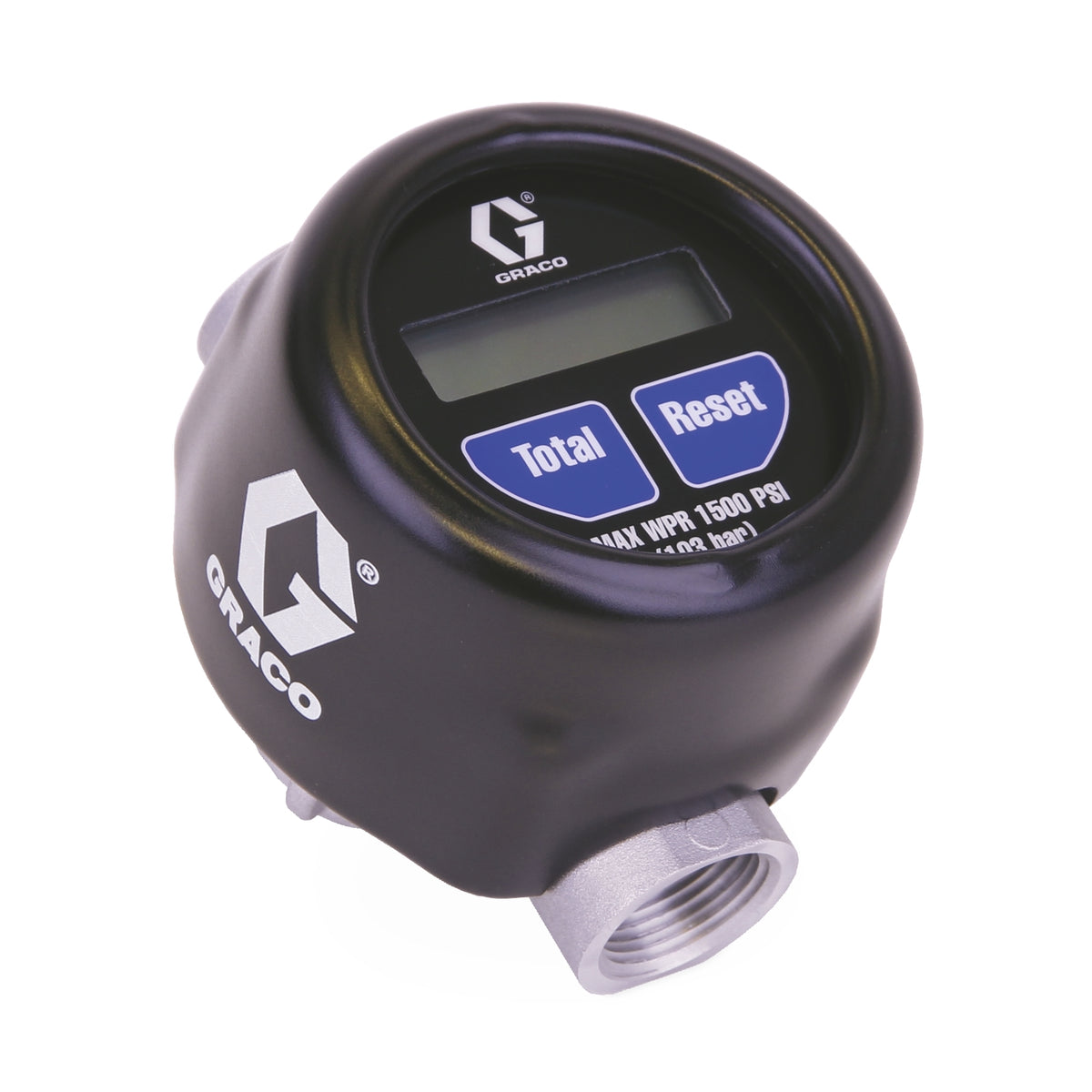

Graco's IM20 in-line meter is designed to last and is capable of measuring a variety of fluids up to 20 gpm (75.7 lpm) flow rates. The IM20 is backed by our robust warranty and features upgraded electronics and an easy-to-read LCD screen with simple operator controls that measures in quarts, gallons, pints and liters.
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
- High-Flow Rates - Capable of up to 20 gpm (75.7 lpm).
- Proven in Harsh Conditions - IP69K-rated meter. Electronics are safe from pressure washing and dusty environments.
- Long Battery Life - Features upgraded electronics and easily replaceable AAA batteries.
- Easy-to-Read LCD - Simple operator control. Measures in quarts, gallons, pints and liters.
UPC Product: 00755652701941
Family Code: FAMMXD
Unit of Measure: EA
Height:
5.5 IN
| 13.97 CM
Length:
14.5 IN
| 36.83 CM
Width:
5 IN
| 12.7 CM
Volume:
.231 FT3
| .007 M3
Chargeable Weight:
2.403 LBS
| 1.09 KG
Technical Specifications
| For Use With | 石油；合成油；防冻剂, Petroleum-Based Oils, Aceites a base de petróleo, Synthetic-Based Oils, Aceites sintéticos, Antifreeze, Anticongelante |
|---|---|
| Inlet Size (cm) | 1.905 |
| Inlet Size (in) | 3/4 |
| Inlet Size (mm) | 19.05 |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 20 |
| Minimum Flow Rate (GPM) | 0.25 |
| Type | Electronic In-Line Meter |
| Maximum Working Pressure (MPa) | 10.3 |
| Maximum Working Pressure (psi) | 1500 |
| Maximum Working Pressure (kPa) | 10300 |
| Maximum Working Pressure (bar) | 103 |
| Outlet Size (cm) | 1.905 |
| Outlet Size (in) | 3/4 |
| Outlet Size (mm) | 19.05 |
| Outlet Thread Type | NPT |
| Weight (lb) | 1.25 |
| Model | IM20 |
