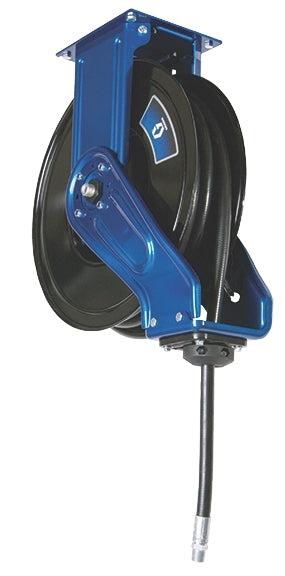

Graco XDH55D XDXâ„¢ 20, Grease, 1/2 in (13 mm) Inlet, 3/8 in X 50 ft (10 mm X 15 m) Hose, NPT, Truck/Bench Mount, Black
Graco XDH55D XDXâ„¢ 20, Grease, 1/2 in (13 mm) Inlet, 3/8 in X 50 ft (10 mm X 15 m) Hose, NPT, Truck/Bench Mount, Black

Graco XDH55D XDXâ„¢ 20, Grease, 1/2 in (13 mm) Inlet, 3/8 in X 50 ft (10 mm X 15 m) Hose, NPT, Truck/Bench Mount, Black

Regular price
$1,605.00
Sale price
$1,605.00
Quantity must be 1 or more


The high-performance and heavy-duty XD10 and XD20 Series Hose Reels feature high-strength dual pedestals for reliable performance in extreme applications. The compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, air, water, grease, antifreeze and windshield washer fluid.

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

  • Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models)
  • Durable Finish - Baked-on enamel finish protects reel from corrosion
  • Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications
UPC Product: 00633955547995
Family Code: FAMXD1
Unit of Measure: EA
Height: 0 IN   |  0 CM
Length: 0 IN   |  0 CM
Width: 0 IN   |  0 CM
Volume: 0 FT3   |  0 M3
Chargeable Weight: 60 LBS  | 27.22 KG

Technical Specifications

Color Yellow
Dry Weight (lb) 64
Hose Inside Diameter (in) 3/8
Hose Inside Diameter (mm) 9.525
Hose Length (ft) 50
Hose Length (m) 15
Inlet Size (in) 3/8
Inlet Size (mm) 9.525
Inlet Thread Type NPSM
Maximum Working Pressure (psi) 4800
Outlet Size (in) 1/4
Outlet Size (mm) 6.35
Overall Height (in) 25.2
Overall Height (mm) 640
Overall Length (in) 21
Overall Length (mm) 533
Overall Width (in) 7.5
Overall Width (mm) 191
Series 20
Application Grease
Type Spring-Rewind Reel
Recommended Environment Indoor, Outdoor
Frame Type Box Frame
Reel Thread Type NPT
Inlet Thread Gender Male
Outlet Thread Gender Male
Recommended Fluid Type Grease
Hose Reel Type Reel with Hose
Model XD
includes_hose Yes
