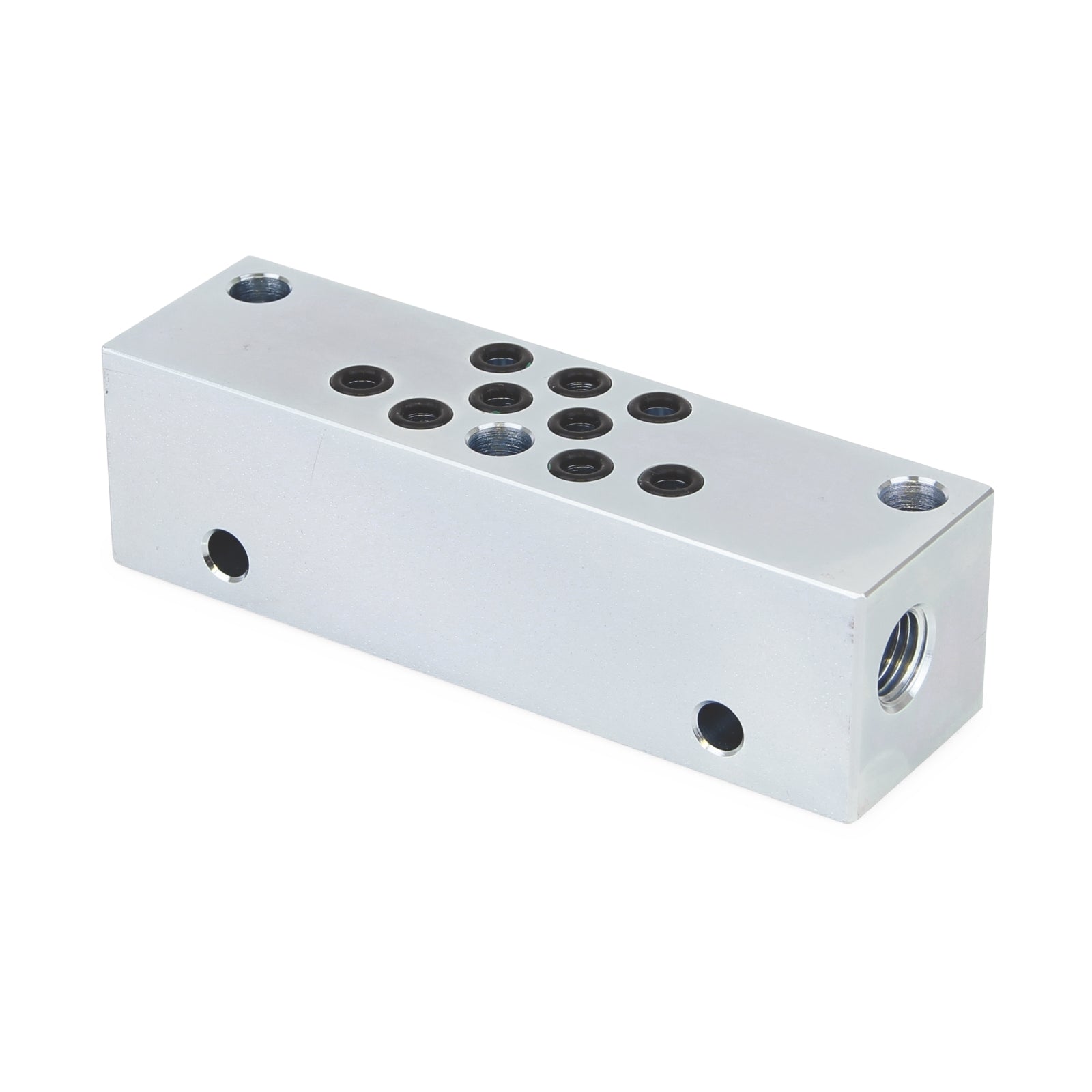

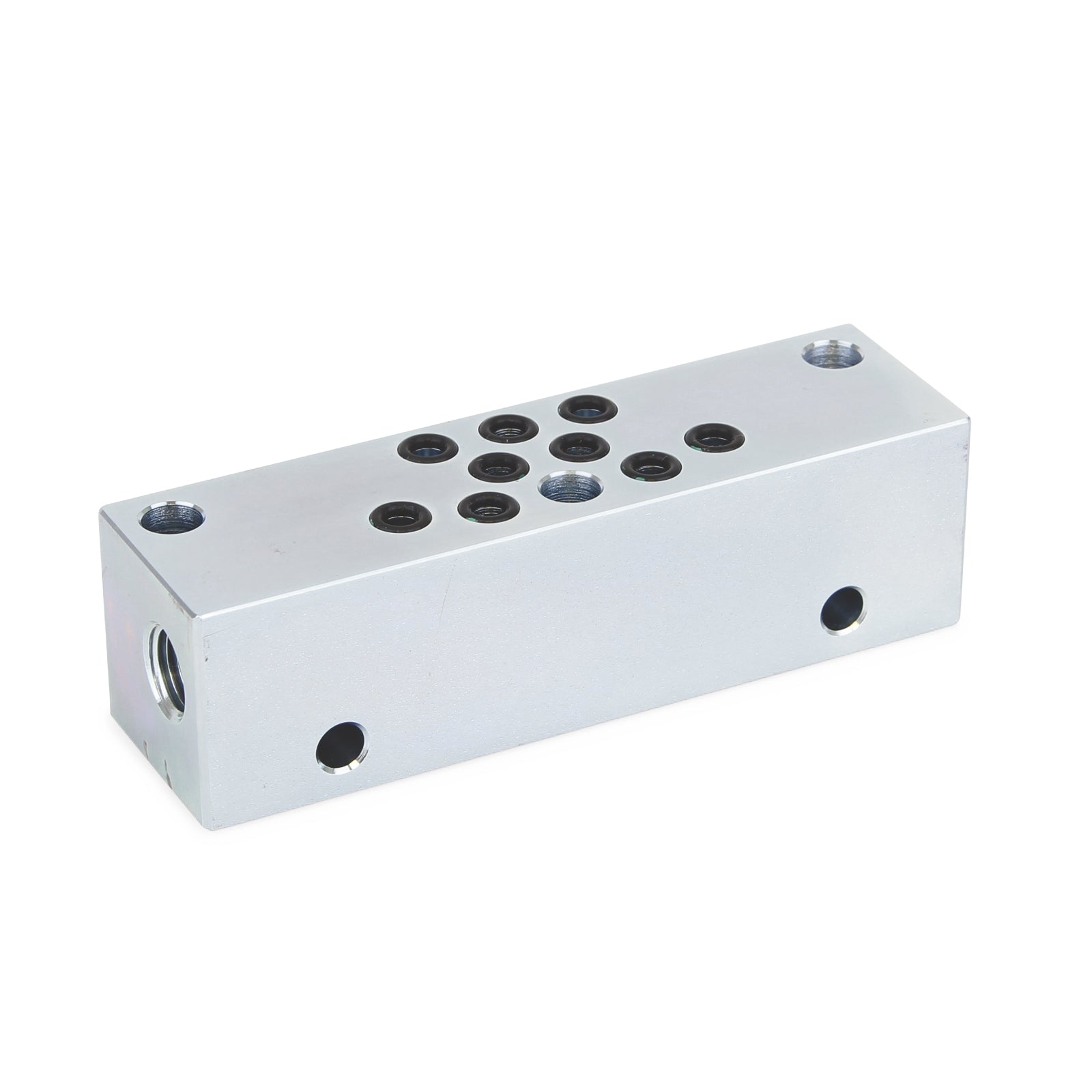

Graco Trabon® MXP Divider Valve - Intermediate Base Plate - NPSF
Graco Trabon® MXP Divider Valve - Intermediate Base Plate - NPSF
Graco Trabon® MXP Divider Valve - Intermediate Base Plate - NPSF

Graco Trabon® MXP Divider Valve - Intermediate Base Plate - NPSF

Regular price
$225.00
Sale price
$225.00
Quantity must be 1 or more

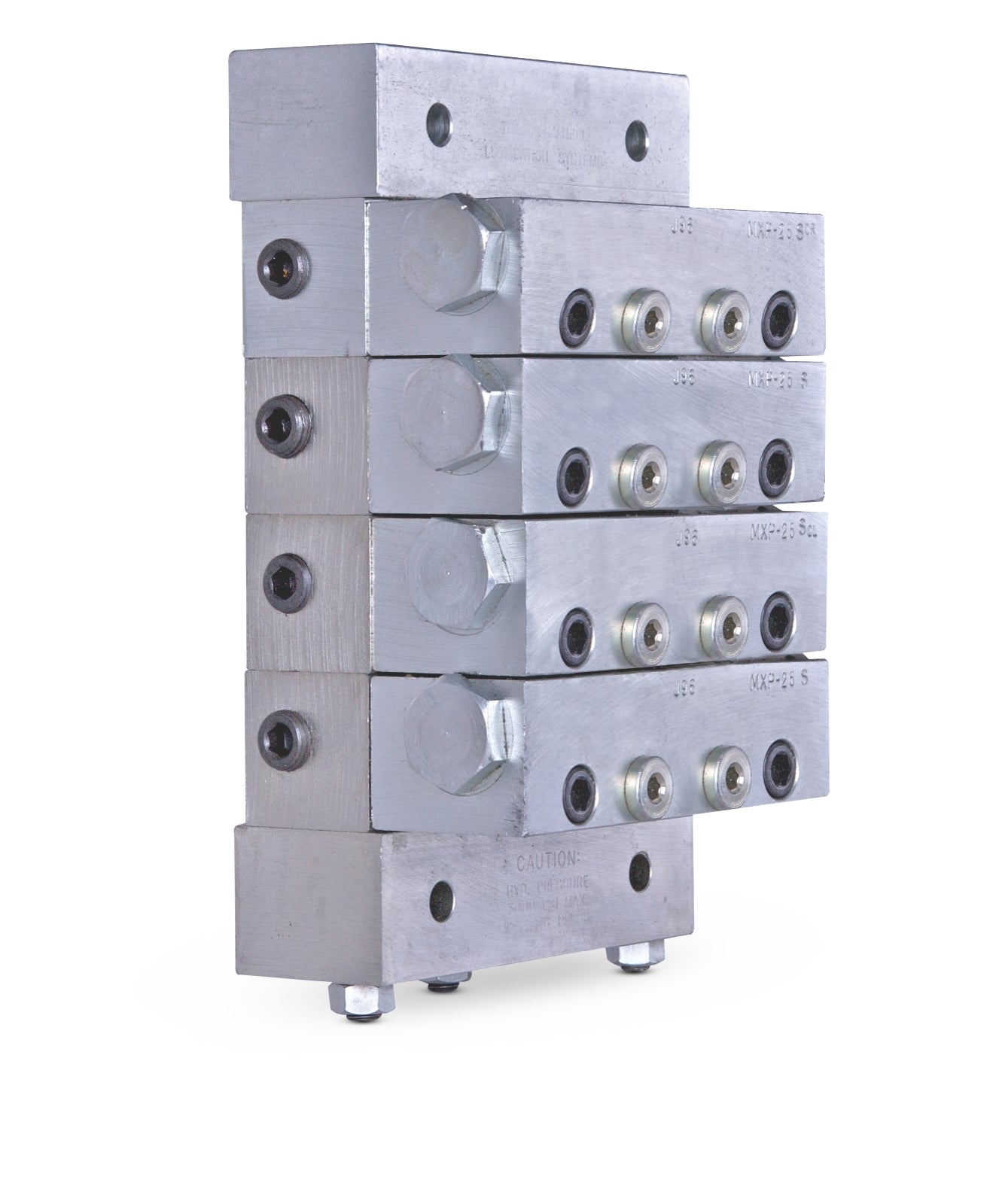

For use with Trabon® MXP Divider Valves.

  • Intermediate Base
  • Must be ordered in multiples of two
  • 1/4-18 NPSF
  • Lubriquip part number 527-300-100
UPC Product: 00633955333239
Family Code: FAMMPM
Unit of Measure: EA
Height: 1.2 IN   |  3.048 CM
Length: 4.8 IN   |  12.192 CM
Width: 1.2 IN   |  3.048 CM
Volume: .007 FT3   |  0 M3
Chargeable Weight: 2 LBS  | .91 KG

Technical Specifications

Type Base Block
Outlet Size (cm) 0.635
Outlet Size (in) 1/4
Outlet Size (mm) 6.35
Outlet Thread Type NPSF
Inlet Size (cm) 0.635
Inlet Size (in) 1/4
Inlet Size (mm) 6.35
Inlet Thread Type NPSF
Series MXP
Application In-Plant Machinery
Model Trabon
