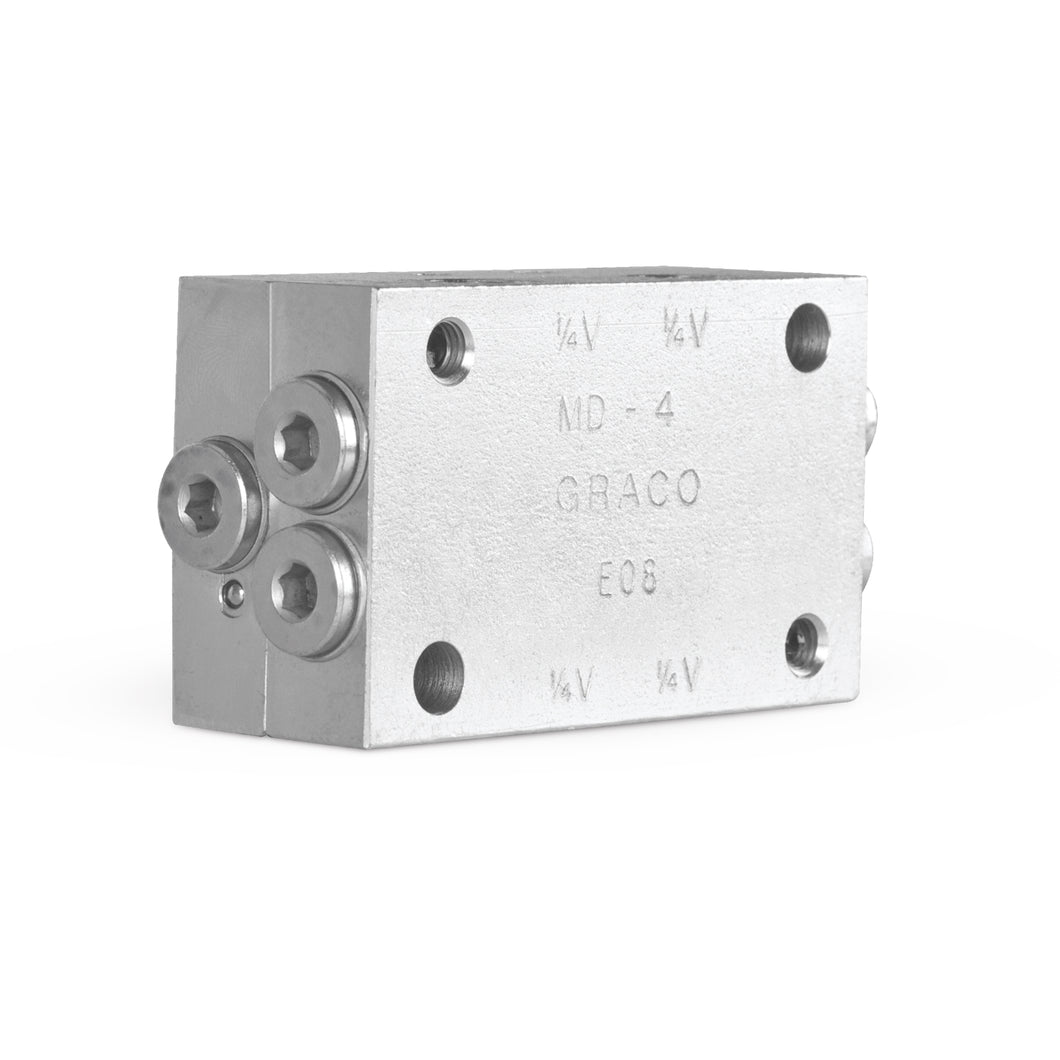

Graco Trabon® MD Mono Block Divider Valve - MD-4

Graco Trabon® MD Mono Block Divider Valve - MD-4

Regular price
$350.00
Sale price
$350.00
Quantity must be 1 or more


The Trabon MD Series is the most compact series progressive solution making it a perfect fit for tight spaced applications

  • 4 outlets
  • Easy to install on new or existing equipment
  • Use our cycle indicator pin models to provide positive assurance of a successful lube event
  • Fluoroelastomer seals for high temperature applications or synthetic lubricants
  • Lubriquip part number 103-000-151
UPC Product: 633955347762
Family Code: FAMMPM
Unit of Measure: EA
Height: 1.5 IN   |  3.81 CM
Length: 3.2 IN   |  8.128 CM
Width: 5 IN   |  12.7 CM
Volume: .014 FT3   |  0 M3
Chargeable Weight: 1.45 LBS  | .66 KG

Technical Specifications

Maximum Cycle Rate (cycles/min) 200
Minimum Working Pressure (bar) 14
Maximum Working Pressure (psi) 3000
Outlet Size (mm) 3.1750
Minimum Working Pressure (psi) 200
Inlet Thread Type NPSF
Inlet Size (in) 1/8
Outlet Size (cm) 0.3175
Number of Outlets 4
Maximum Working Pressure (bar) 207
Maximum Operating Temperature (°F) 350
Inlet Thread Gender Female
Cycle Indicator None
Outlet Thread Type NPSF
Outlet Thread Gender Female
Outlet Size (in) 1/8
Maximum Working Pressure (kPa) 20670
Maximum NLGI Grade #2
Material Carbon Steel
Inlet Size (mm) 3.1750
Compatible Material Oil, Grease
Maximum Operating Temperature (°C) 176
Inlet Size (cm) 0.3175
Type Divider Valve
Divider Valve Series MD
Application On-Road Vehicles, Off-Road Equipment, In-Plant Machinery
Model Trabon
Series MD
Discharge Per Piston Stroke (in³) 0.012
