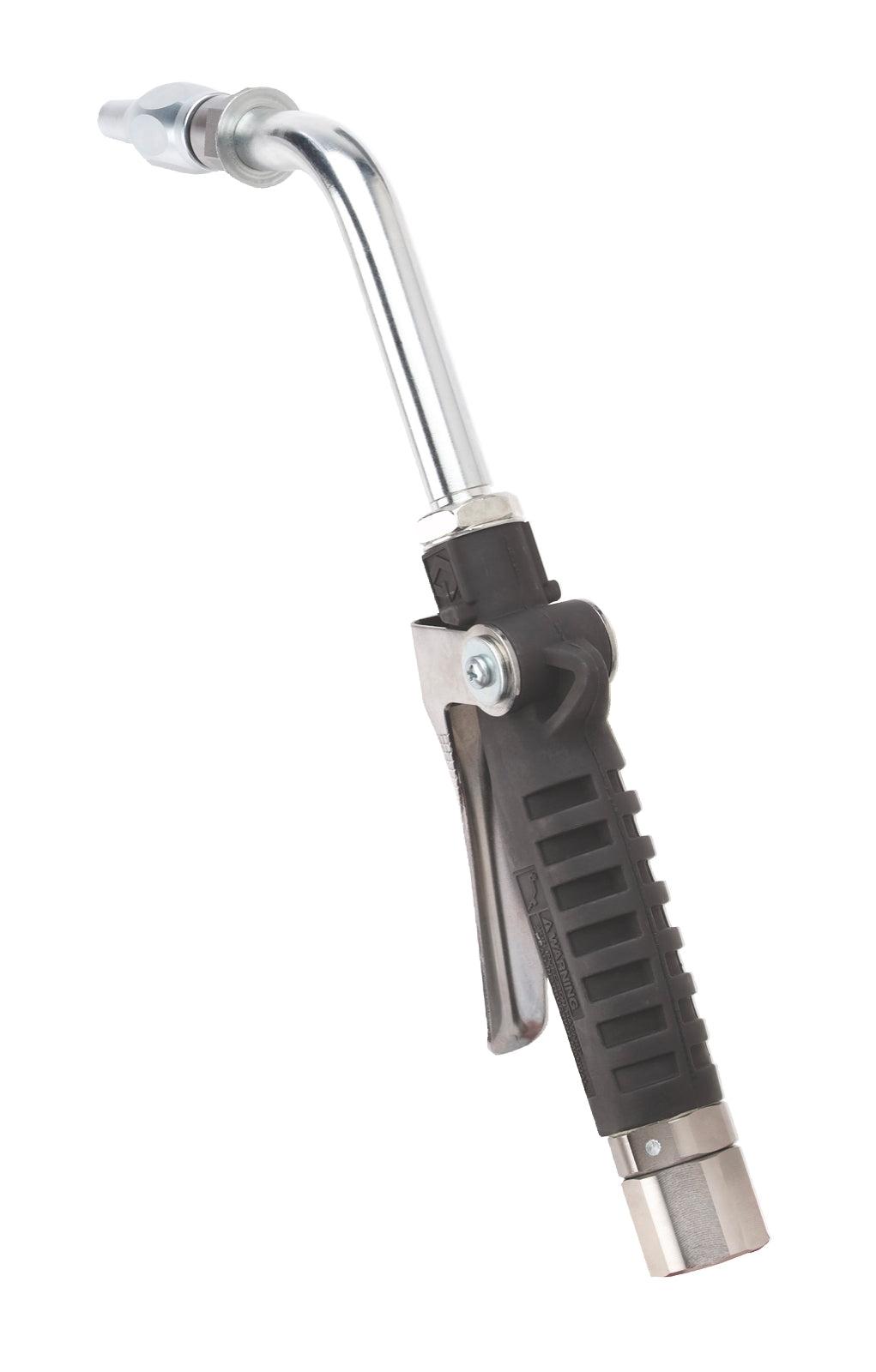

Graco SDV15 Series Oil Control Valve - Rigid Extension - 1/2 in. (13 mm) Inlet - NPT

Graco SDV15 Series Oil Control Valve - Rigid Extension - 1/2 in. (13 mm) Inlet - NPT

Regular price
$451.00
Sale price
$451.00
Quantity must be 1 or more


For standard and heavy-duty applications, both indoor and outdoor, the SDV15 control valves are designed to perform in larger dealerships with longer plumbing runs and greater fluid usage. The control valve is compatible with a wide range of nozzles and fluid extensions and is capable of pumping oil up to 15 gpm (56.8 lpm).

Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, Service shops, In-plant, Lube trucks, and Mining.

  • Lock-on/Lock-off trigger allows hands free operation
  • Sturdy cast body designed for use in tough environments
  • Inlet 1/2 in. NPT with swivel
  • Features rigid extension with oil nozzle
UPC Product: 00633955316423
Family Code: FAMVOL
Unit of Measure: EA
Height: 2.4 IN   |  6.096 CM
Length: 12 IN   |  30.48 CM
Width: 8.4 IN   |  21.336 CM
Volume: .14 FT3   |  .004 M3
Chargeable Weight: 2.7 LBS  | 1.22 KG

Technical Specifications

Compatible Material Oil
Display Type N/A
Extension Type Rigid
Includes 喷嘴,延长件, Nozzle, Extension, Boquilla, extensión
Inlet Size (cm) 1.27
Inlet Size (in) 1/2
Inlet Size (mm) 12.7
Inlet Thread Gender Female
Inlet Thread Type NPT
Maximum Operating Temperature (°C) 82
Maximum Operating Temperature (°F) 180
Minimum Operating Temperature (°F) -40
Minimum Operating Temperature (°C) -40
Maximum Working Pressure (bar) 103.4
Maximum Working Pressure (kPa) 10340
Maximum Working Pressure (psi) 1500
Outlet Size (mm) 19.05
Outlet Size (in) 3/4
Outlet Size (cm) 1.905
Outlet Thread Gender Female
Outlet Thread Type Straight Thread O-Ring Boss
Trigger Lock Locking
Weight (lb) 0.4
Weight (kg) 0.18
Wetted Material Aluminum, Stainless Steel, CS, Acetal, Nitrile Rubber, TPE
Dispense Type Manual
Recommended Environment Indoor, Outdoor
Type Non-Metered Dispense Valve
Valve Type Non-Metered
Model SDV15
