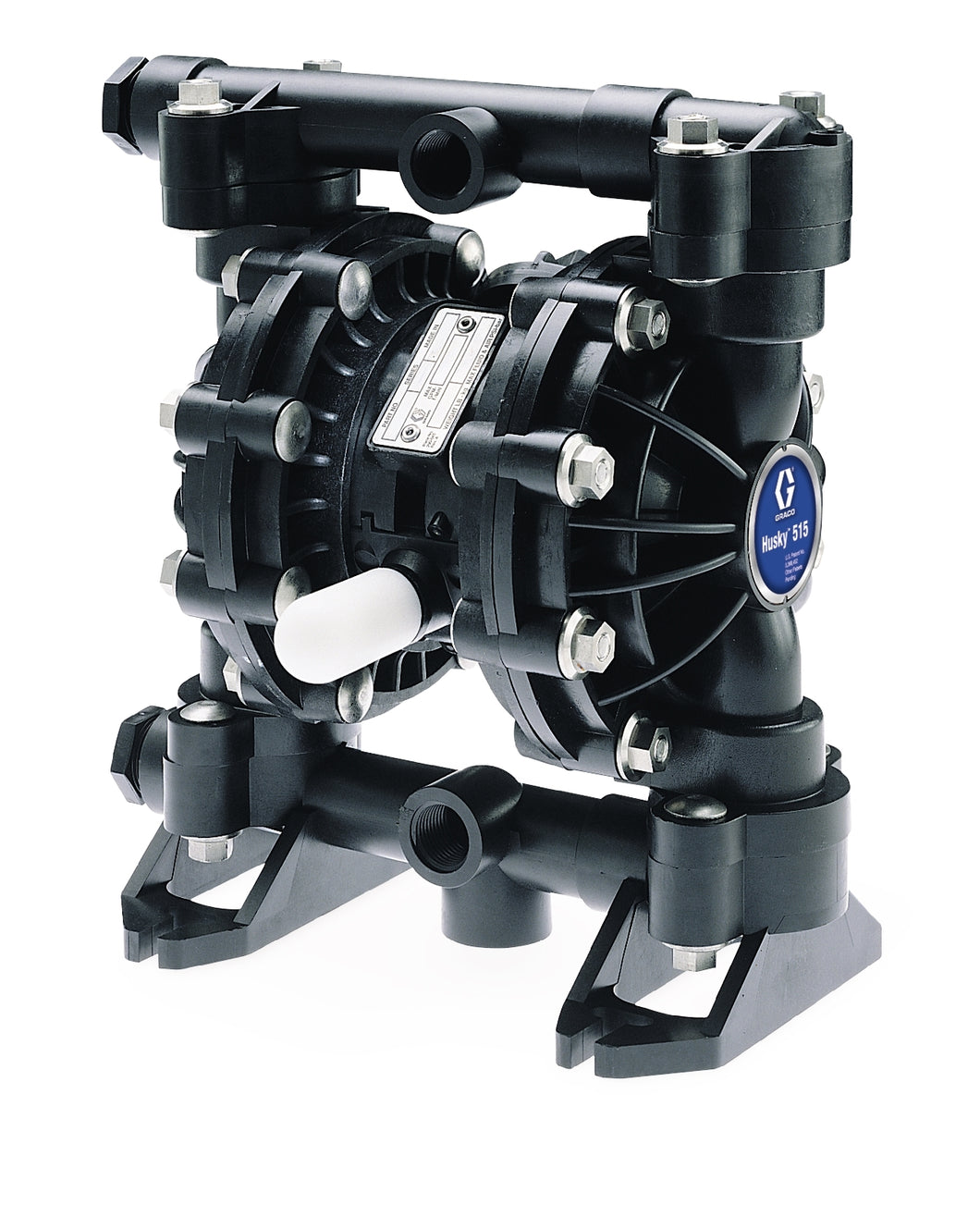

Graco Husky 515 Series Air-Operated Double Diaphragm Transfer Pump for 50/50 Windshield Wash Solution, Water, Antifreeze

Graco Husky 515 Series Air-Operated Double Diaphragm Transfer Pump for 50/50 Windshield Wash Solution, Water, Antifreeze

Regular price
$1,350.00
Sale price
$1,350.00
Quantity must be 1 or more


The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

  • Center and end porting options.
  • No mechanical seals to cause fluid leaks or failures
  • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Easy-to-service air valve and ball checks
  • Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
  • Split manifold option to pump multiple fluids without mixing
  • Delivery up to 15 gpm (56.7 lpm)
  • Easy-to-service air valve and ball checks
  • Reliable air valve for years of dependable performance
UPC Product: 00633955937260
Family Code: FAMPDI
Unit of Measure: EA
Height: 17.78 CM   |  7 IN
Length: 11.5 IN   |  29.21 CM
Width: 29.21 CM   |  11.5 IN
Volume: .536 FT3   |  .015 M3
Chargeable Weight: 10 LBS  | 4.54 KG

Technical Specifications

Type Pneumatic Diaphragm Pump
Air Exhaust Port Size (in) 3/8
Air Exhaust Port Thread Gender Female
Air Exhaust Port Thread Type NPT
Air Inlet Size (in) 1/4
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Ball Material Buna-N
Compatible Material Water, Antifreeze, Windshield Washer Fluid
Diaphragm Material Buna-N
Fluid Section Material Acetal
For Use With 油,水,防冻剂,清洗液, オイル、水、凍結防止剤、洗浄液, Oil, Water, Anti-freeze, Washer Fluid, Aceite, agua, anticongelante, fluido de lavado, 오일, 물, 부동액, 워셔액
Manifold O-Ring Material PTFE
Material Acetal
Maximum Air Consumption (SCFM) 28
Maximum Air Pressure (bar) 7
Maximum Air Pressure (kPa) 700
Maximum Air Pressure (psi) 100
Maximum Cycle Rate (CPM) 400
Maximum Flow Rate (GPM) 15
Maximum Flow Rate (L/min) 56.8
Maximum Fluid Pressure (bar) 7
Maximum Fluid Pressure (kPa) 700
Maximum Fluid Pressure (psi) 100
Maximum Solid Size (cm) 0.2383
Maximum Solid Size (in) 0.09375
Maximum Solid Size (mm) 2.4
Model Husky
Overall Height (in) 10.63
Power Source Air
Pump Ratio 1:1
Series 515
Weight (lb) 7.8
Wetted Material Groundable Acetal, Buna-N, PTFE
Maximum Fluid Pressure (MPa) 0.7
Maximum Air Pressure (MPa) 0.7
