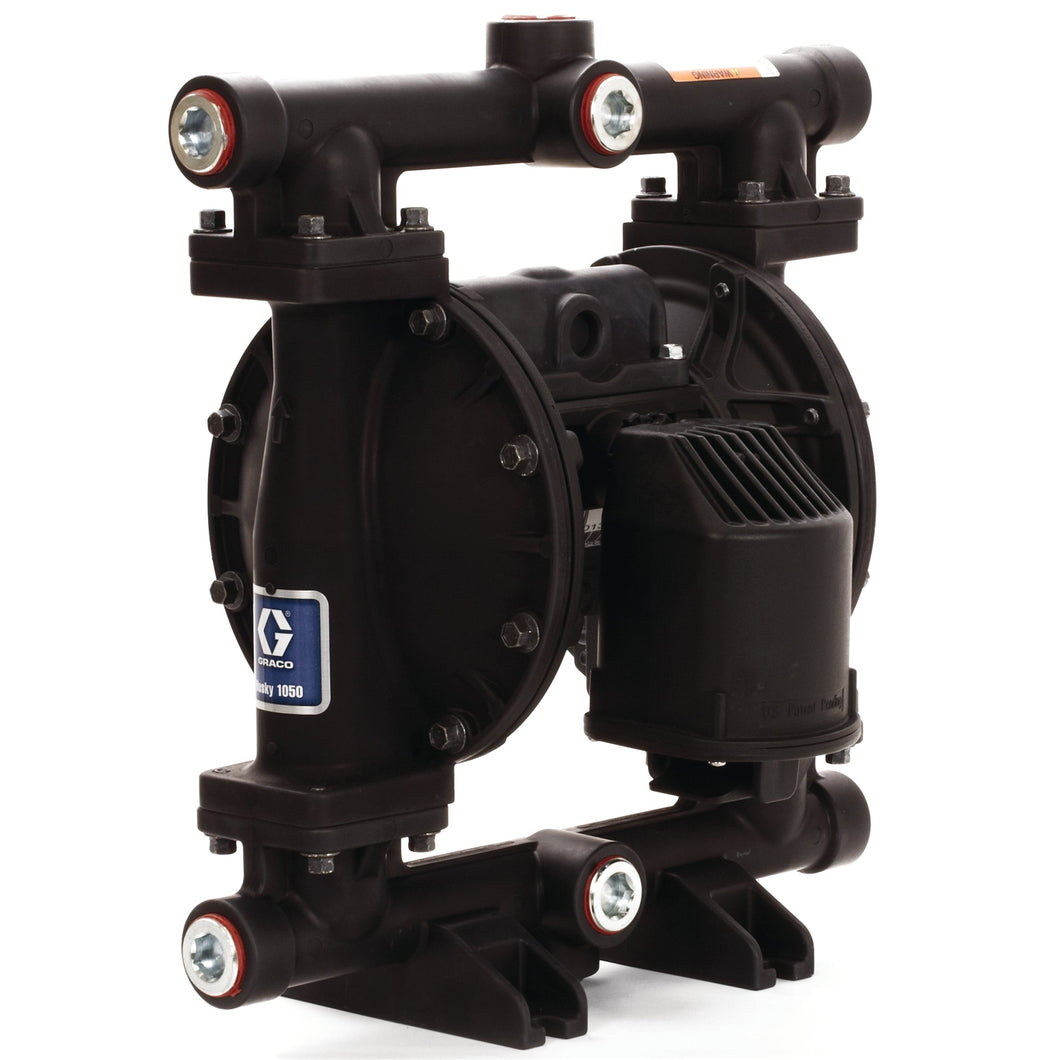

Graco Husky 1050 AL 1 in. (25.4 mm) NPT Pump, AL Center Section, SS Seats, SS Balls & PTFE Diaphragm

Graco Husky 1050 AL 1 in. (25.4 mm) NPT Pump, AL Center Section, SS Seats, SS Balls & PTFE Diaphragm

Regular price
$2,160.00
Sale price
$2,160.00
Quantity must be 1 or more


The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

UPC Product: 00633955135475
Family Code: FAMAOD
Unit of Measure: EA
Height: 45.72 CM   |  18 IN
Length: 39.624 CM   |  15.6 IN
Width: 8.4 IN   |  21.336 CM
Volume: 1.365 FT3   |  .039 M3
Chargeable Weight: 29 LBS  | 13.15 KG

Technical Specifications

Type Pneumatic Diaphragm Pump
Air Exhaust Port Size (in) 3/4
Air Exhaust Port Thread Gender Female
Air Exhaust Port Thread Type NPT
Air Inlet Size (in) 1/2
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Ball Material 316 Stainless Steel
Center Section Material Aluminum
Compatible Material Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
Diaphragm Material PTFE/EPDM 2-Piece
Fluid Inlet Size (cm) 2.54
Fluid Inlet Size (in) 1
Fluid Inlet Size (mm) 25.4
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Outlet Size (cm) 2.54
Fluid Outlet Size (in) 1
Fluid Outlet Size (mm) 25.4
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Fluid Section Material Aluminum
Manifold Configuration Center Port, End Port
Manifold O-Ring Material PTFE
Material Aluminum
Maximum Air Consumption (SCFM) 67
Maximum Air Pressure (bar) 8.6
Maximum Air Pressure (kPa) 860
Maximum Air Pressure (psi) 125
Maximum Cycle Rate (CPM) 280
Maximum Flow Rate (GPM) 50
Maximum Flow Rate (L/min) 189
Maximum Fluid Pressure (bar) 8.6
Maximum Fluid Pressure (kPa) 860
Maximum Fluid Pressure (psi) 125
Maximum Operating Temperature (°C) 104
Maximum Operating Temperature (°F) 220
Maximum Solid Size (cm) 0.3175
Maximum Solid Size (in) 0.125
Maximum Solid Size (mm) 3.175
Model Husky
Overall Height (in) 15.9
Power Source Air
Seat Material Stainless Steel
Series 1050
Standards Met ATEX, CE
Weight (lb) 23
Wetted Material Aluminum, Stainless Steel, PTFE/EPDM
Maximum Fluid Pressure (MPa) 0.86
Maximum Air Pressure (MPa) 0.86
Connection Type Threaded
diaphragm_compatible_material PTFE
