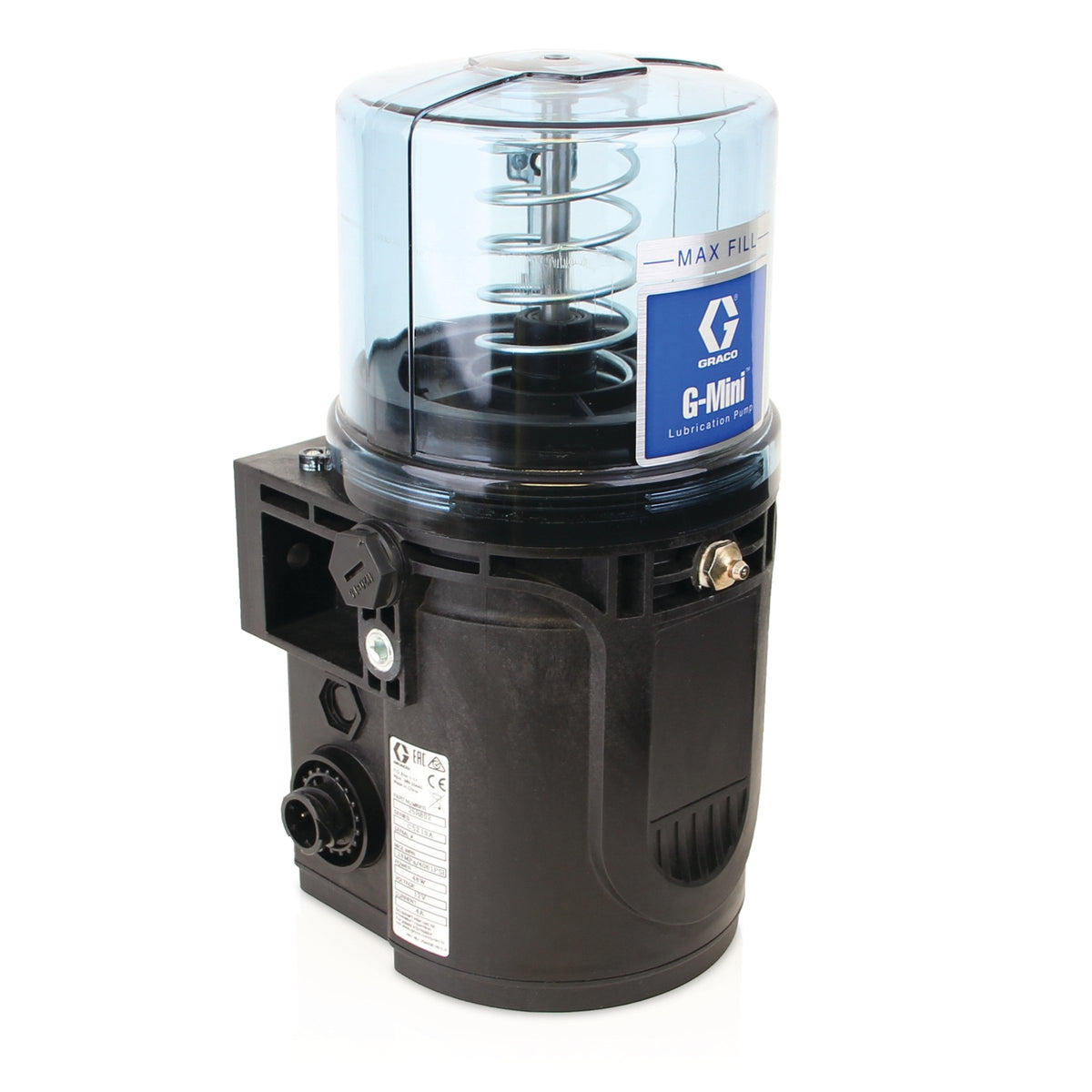

Make the most of your space, budget and machines. The new full-featured G-Mini offers reliable lubrication in a small footprint to fit more types of machines. Use it to simplify everyday maintenance, extend lifecycles and optimize uptime. It’s rugged and tough, perfect for handling the daily, 24/7 rigors of any job, both big and small. Best of all, it comes with a modest price tag – boosting your productivity and profitability.
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
- Follower Plate and Stir Paddle - This unique combination combats oil separation while ensuring the pump element “loading chamber” is always full.
- 5-Wire DIN Power Cable - Multifunction cable supplies power to the pump, pairs with a remote manual run button, and provides low level or cycle fault output.
- 0.5 liter reservoir option
- One Pump Element - 0.18 in3/min (3 cm3/min), 4,100 psi (280 bar)
- No Controller: pair with either an external controller or PLC.
- Rugged Construction - Designed to withstand the harshest of environments; IP69K rated.
UPC Product: 769946074987
Family Code: FAMLPM
Unit of Measure: EA
Height:
15 IN
| 38.1 CM
Length:
12 IN
| 30.48 CM
Width:
11.75 IN
| 29.845 CM
Volume:
1.224 FT3
| .035 M3
Chargeable Weight:
12.741 LBS
| 5.777 KG
Technical Specifications
| Type | Electric Piston Pump |
|---|---|
| Application | Off-Road Equipment, On-Road Vehicles, Industrial, Wind Energy |
| Compatible Material | Grease |
| Fluid Inlet Type | Zerk Fitting to Fill Reservoir, Raccord Zerk au réservoir de remplissage, Schmiernippel zum Befüllen des Schmiermittelbehälters |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPSF |
| Maximum NLGI Grade | #2 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Maximum Working Pressure (bar) | 280 |
| Maximum Working Pressure (psi) | 4061 |
| Minimum Operating Temperature (°C) | -15 |
| Minimum Operating Temperature (°F) | 5 |
| Model | G-Mini |
| Reservoir Size (L) | 0.5 |
| Voltage (V dc) | 24 |
| Weight (lb) | 8.8 |
| Wetted Material | Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Amorphous Polyamide, Nylon |
| Compatible Metering Device | Series Progressive |
| Control Options | External Controller |
| IP Rating | IP69K |
| Maximum Flow Rate (ci/min) | 3 |
| Maximum Voltage (V dc) | 32 |
| Minimum Voltage (V dc) | 18 |
| Number of Pump Elements | Up to 2 |
| Overall Depth (in) | 6.57 |
| Overall Height (in) | 10.9 |
| Overall Width (in) | 6.97 |
| Power Connection Type | DIN |
| Approvals | CE, EAC |
