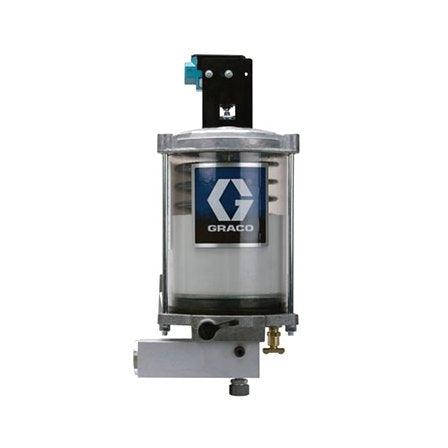

The E-Series pump is a great, minimum cost, entry level alternative to standard pneumatic pump products. This all-in-one pump package comes complete with no assembly required and is easy to install. All pump packages include high-pressure rupture disc assembly and lube outlet check valve. Great for any application where price is a concern and installation time is at a premium.
Feel free to call or chat with us for recommendations.
📦
Ships in 6-10 days, shipping times may vary
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
- Easy field installation of accessories without disturbing existing plumbing
- Smart pump design with few moving parts ensures long-lasting dependability
- Lubriquip part number 521-300-180
UPC Product: 00633955351349
Family Code: FAMMPM
Unit of Measure: EA
Height:
5 IN
| 12.7 CM
Length:
16.256 CM
| 6.4 IN
Width:
6.2 IN
| 15.748 CM
Volume:
.115 FT3
| .003 M3
Chargeable Weight:
2.15 LBS
| .98 KG
Technical Specifications
| Type | Pneumatic Piston Pump |
|---|---|
| Application | In-Plant Machinery |
| Compatible Material | Oil, Grease |
| Fluid Outlet Size (in) | 0.5 |
| Fluid Outlet Size (mm) | 12.7000 |
| Fluid Outlet Thread Type | NPSF |
| Includes | E-Series 泵, E シリーズポンプ, E-Series Pump, Bomba de la serie E, 安全膜, ラプチャーディスク, Rupture Disc, disco de ruptura |
| Material | Aluminum, Plastic |
| Maximum Air Inlet Pressure (bar) | 10.34 |
| Maximum Air Inlet Pressure (kPa) | 1034 |
| Maximum Air Inlet Pressure (psi) | 150 |
| Maximum Cycle Rate (CPM) | 10 |
| Maximum Fluid Output Pressure (psi) | 2000 |
| Maximum NLGI Grade | #2 |
| Maximum Working Pressure (bar) | 137.9 |
| Maximum Working Pressure (kPa) | 13790 |
| Maximum Working Pressure (psi) | 2000 |
| Model | E-Series |
| Power Type | Pneumatic |
| Compatible Metering Device | Series Progressive |
| Maximum cST Grade (cST) | 30000 |
| Maximum Working Pressure (MPa) | 13.8 |
| maximum_fluid_output_pressure_bar | 138 |
