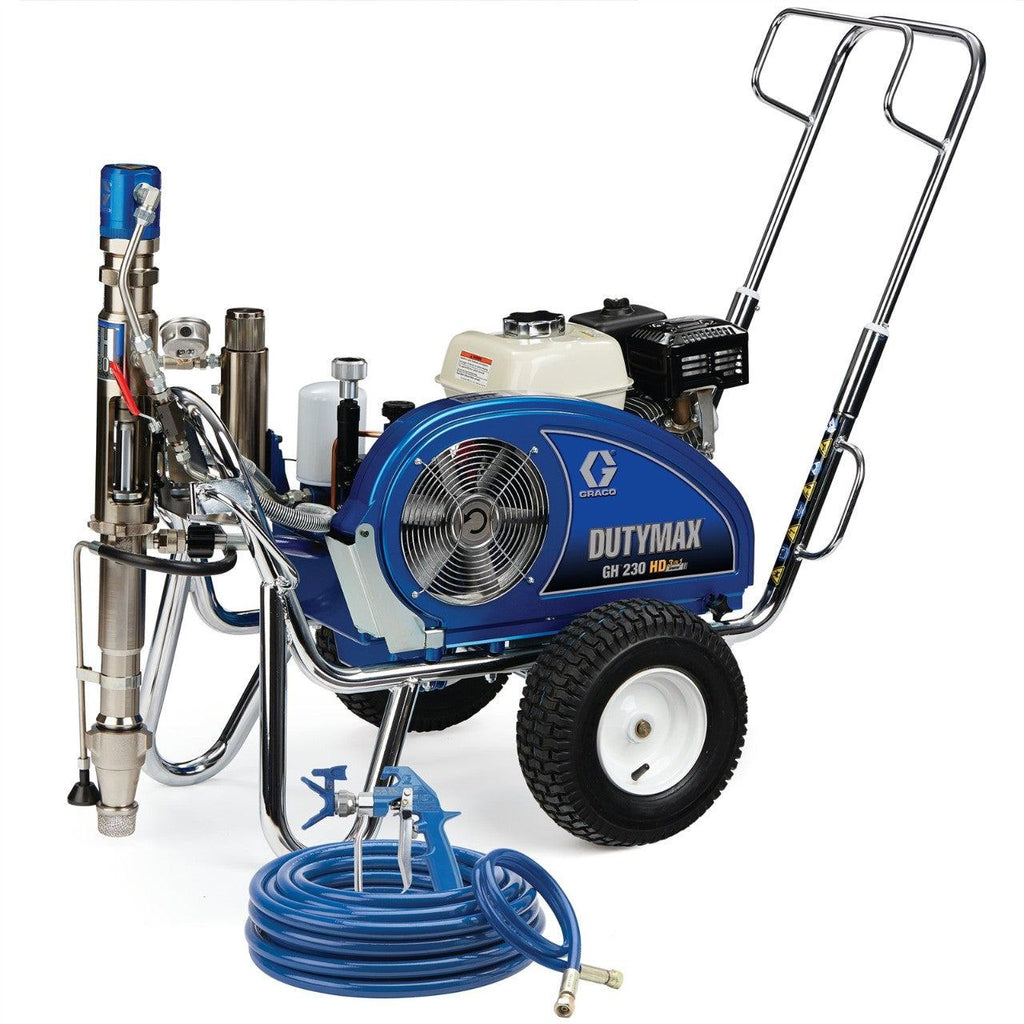

Graco DutyMax GH 230 HD 3-in-1 Standard Series Convertible Gas Hydraulic Airless Sprayer

Graco DutyMax GH 230 HD 3-in-1 Standard Series Convertible Gas Hydraulic Airless Sprayer

$8,619.00
See Lower Price in Cart

SKU: 24W943

Contact us for more information
When your job requires maximum productivity and versatility, turn to the DutyMax GH 230 HD sprayer to get the job done—fast! Equipped with a long stroke, direct immersion pump, this hydraulic workhorse is built for the biggest, most demanding jobs and materials.

Graco’s Standard Series of DutyMax HD gas hydraulic direct-immersion sprayers deliver everyday reliability and performance while easily handling the widest range of tip sizes, longer hose lengths more heavy duty materials such as plasters, elastomerics, fire retardants and liquid roofing solutions.

  • Endurance Pump
    • The Most Reliable Pump
    • Lasts 2X longer than the next brand
    • Better spraying performance and fast cleaning
    • Long Life ceramic and stainless steel balls included for maximum versatility
  • MaxFlo 2 with Pack-Out Protection
    • Less Pack-Out, More Productivity
    • Self-cleaning Vibra-Seal Technology eliminates material build-up
    • Continuous spraying with True Pack-Out Protection for more productivity
    • Optimized fluid passageways for the heaviest coatings
  • High-Efficiency Hydraulic Motor
    • Finish Jobs Faster
    • Fast, responsive changeover
    • Less maintenance and longer life with fewer moving parts
    • 100% O-ring sealed fittings prevent leaks
  • High-Capacity Cooling System
    • Reduced Downtime
    • Innovative design allows the pump to run cooler and more efficiently with extremely quiet operation
    • Easier and more thorough fluid changes
    • Reservoir cooling fins deflect more heat
  • Honda® GX Engine
    • Reliable, Powerful & Easy-to-Start
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • Easy Out Pump Filter
    • Easy Maintenance & Less Clogging
    • Large filtering area for easier cleaning & fewer tip clogs ensure a quality finish
    • Won’t collapse or get stuck with inside out filtering process
  • Heavy-Duty Prime Valve
    • High-Pressure Dumping Capability
    • Maintenance-free design
  • Durable Cart Design
    • Rugged and Easy-to-Maneuver
    • Withstands the tough jobsite conditions while absorbing impacts and vibrations
    • Retractable handle doubles as coiled hose storage
  • Electric Motor Capability
    • Indoor & Outdoor Use
    • Quickly swap the gas engine for an electric motor in seconds, without tools
    • Electric motor sold separately
Compatible Electric Motor Kits 248949, 248950 (CSA)
Compatible Material Primer, Water-Based Paint, Acrylics, Latex, Solventborne Paints, Block Filler, Drywall Mud, Elastomeric Coating
Convertible Yes
Engine Brand Honda
Engine Size (HP) 6.5
Engine Size (kW) 4.8
Features Endurance Pump, MaxFlo 2, High-Capacity Cooling System, Honda Engine, Easy Out Filter, Heavy-Duty Prime Valve, Durable Cart Design, Convertible
Fluid Inlet Size (in) 1-5/16
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPT
Frame Configuration Cart
Hose Inlet Diameter (in) 3/8
Includes Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose, TSL 4 oz
Material Application Paints, Primers
Maximum Flow Rate (GPM) 2.35
Maximum Hose Length (ft) 50
Maximum Sound Pressure Level (dB(A)) 80
Maximum Tip Size (in) 0.053
Maximum Working Pressure (psi) 3300
Model DutyMax HD
Number of Guns 1
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Overall Height (in) 35.5
Overall Length (in) 47.7
Overall Width (in) 26.5
Power Rating (HP) 6.5
Power Rating (kW) 4.8
Power Source Gas Hydraulic
Product Series Standard
Pump Mount Type QuikChange
Pump Rod Type Hard Chrome
Pump Sleeve Material Hardened Stainless Steel
Pump Type Endurance
Recommended Annual Usage 100-200 gallons per week
Series GH 230
Type Airless Sprayer
Weight (lb) 203
