Industry leading feature for your lube system needs.

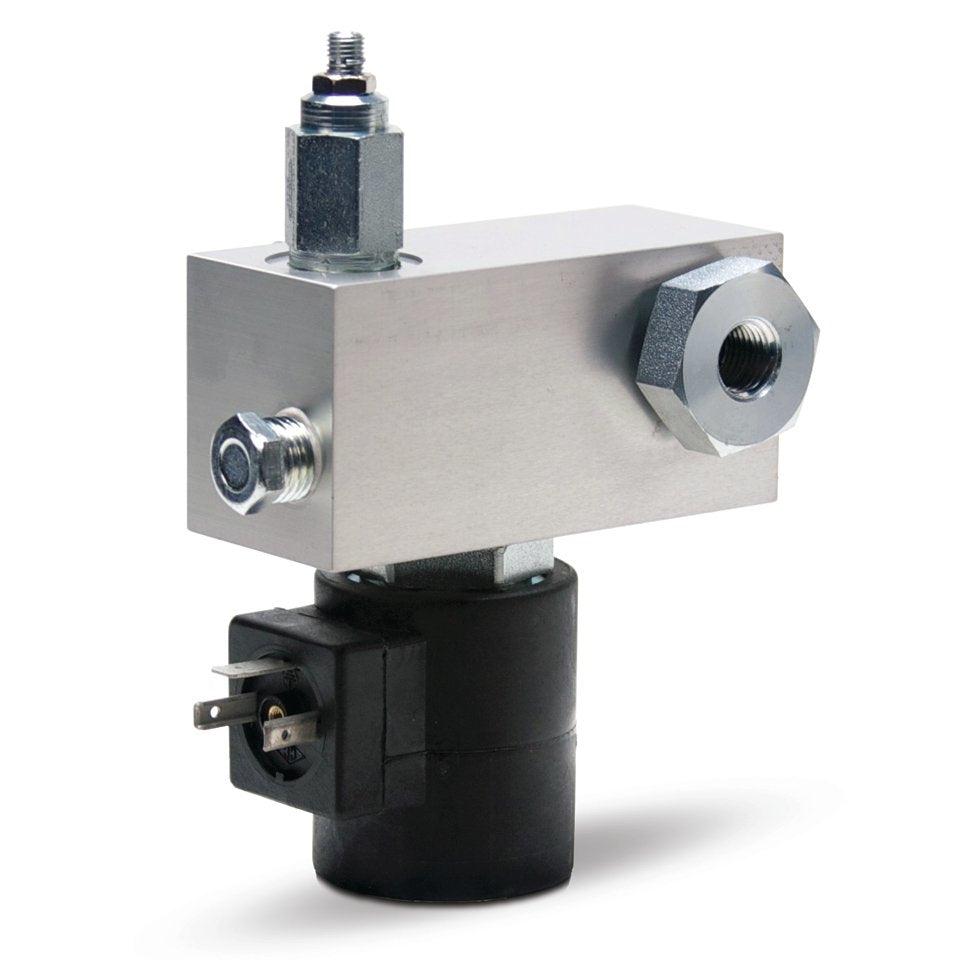

Vent valves are designed to be mounted to the G3 Electric Lubrication Pump to make it simple to install your injector based lube systems.
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
- Easily mounts to your G3 pump.
- Eliminates time and material costs associated with remote mounted vent valves.
- 230 VAC
- Normally Open
- The normally open valve works with the G3 Standard no control pump. With an external control just add power to the pump and valve to run a lube cycle, and remove power from both to vent pressure.
- Adjustable pressure relief is integrated into the valve, no need to purchase an additional relief valve.
- DIN Power Connection
UPC Product: 00633955133013
Family Code: FAMMPM
Unit of Measure: EA
Height:
4.8 IN
| 12.192 CM
Length:
6 IN
| 15.24 CM
Width:
6 IN
| 15.24 CM
Volume:
.1 FT3
| .003 M3
Chargeable Weight:
1.22 KG
| 2.7 LBS
Technical Specifications
| Application | On-Road Vehicles, Off-Road Equipment |
|---|---|
| Compatible Material | Grease |
| Factory Set Pressure (bar) | 280 |
| Factory Set Pressure (kPa) | 28000 |
| Factory Set Pressure (psi) | 4000 |
| For Use With | G3 泵, G3 Pumps, G3 Pumps, Pompes G3, Bombas G3, G3-Pumpen, G3-pompen, Pompe G3 |
| Inlet Thread Type | BSPP |
| Maximum Flow Rate (GPM) | 5 |
| Maximum Flow Rate (L/min) | 19 |
| Maximum Working Pressure (bar) | 241 |
| Maximum Working Pressure (kPa) | 24100 |
| Maximum Working Pressure (psi) | 3500 |
| Outlet Thread Type | BSPP |
| Relief Rate (GPS) | 0.13 |
| Type | Vent Valve |
| Maximum Working Pressure (MPa) | 24 |
| Model | Trabon |
