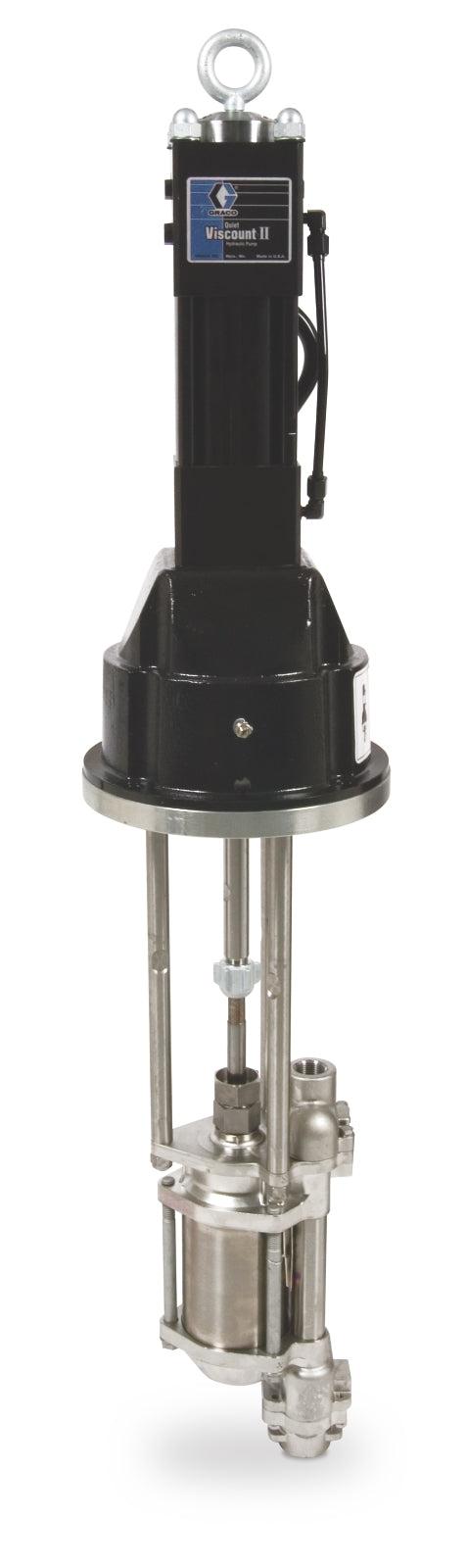

Graco's Viscount II is field proven to be a reliable and efficient pump in demanding applications.
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
UPC Product: 00633955643888
Family Code: FAMHYD
Unit of Measure: EA
Height:
0 IN
| 0 CM
Length:
0 IN
| 0 CM
Width:
0 IN
| 0 CM
Volume:
0 FT3
| 0 M3
Chargeable Weight:
360.56 LBS
| 163.55 KG
Technical Specifications
| Application | On-Road Vehicles, Off-Road Equipment |
|---|---|
| Compatible Material | Grease |
| Fluid Inlet Size (cm) | 1.9050 |
| Fluid Inlet Size (in) | 0.75 |
| Fluid Inlet Size (mm) | 19.0500 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (cm) | 3.81 |
| Fluid Outlet Size (in) | 1-1/2 |
| Fluid Outlet Size (mm) | 38.1 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| Includes | Viscount 2.4:1 II Pump, Bomba Viscount 2.4:1 II, Fluid Hose, manguera de fluido, Fluid Shutoff Valve, válvula de cierre de fluido, Mounting Kit, kit de montaje, Ball Valve, válvula de bola, Hydraulic Fluid Control Manifold, colector de control de fluido hidráulico |
| Maximum Flow Rate (GPM) | 7.5 |
| Maximum Working Pressure (bar) | 159 |
| Maximum Working Pressure (kPa) | 15900 |
| Maximum Working Pressure (psi) | 2300 |
| Motor Type | Hydraulic Motor |
| Mount Location | Stand Mount |
| Series | II |
| Air Inlet Thread Gender | Female |
| Wetted Material | Carbon Steel, Chrome, Zinc, Electroless Nickel Plating, 304 Stainless Steel, 17-4 PH Stainless Steel, E52100 Alloy Steel, Ductile Iron, Acetal, PTFE, UHMWPE |
| Maximum Fluid Working Pressure (psi) | 2300 |
| Pump Weight (lb) | 196 |
| Type | Piston Pump Package |
| Power Type | Hydraulic |
| Maximum Working Pressure (MPa) | 15.9 |
| Model | Viscount |
