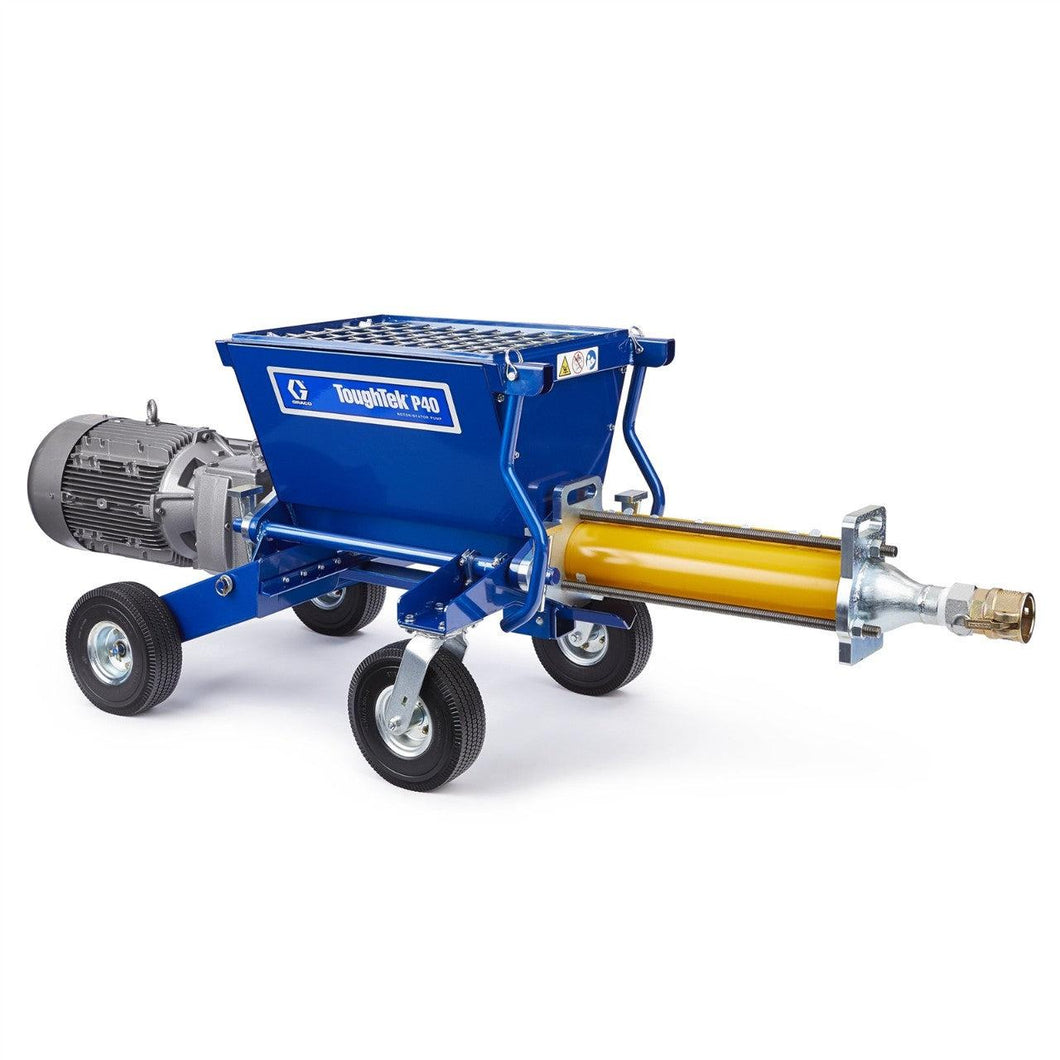

ToughTek P40 Bare Rotor Stator System, 230V, 25A, 3Ph

ToughTek P40 Bare Rotor Stator System, 230V, 25A, 3Ph

Regular price
$30,300.00
Sale price
$30,300.00
Quantity must be 1 or more




Known as the workhorse because of its 600 psi (42 bar) output pressure, the ToughTek P40 is built for high volume applications. The high flow rate and high pressure allows contractors to pump stucco and EIFS up a tall building while keeping the pump on the ground, saving your operation time.

Built for high-volume applications

  • Easy to use, easy to move

  • Variable pump output lets you adjust material flow

  • Flow rate: 18.7 gpm (71 lpm)

  • Output (underlayment): 300 bags per hour (based on 50-lb/22.6 kg bags)

  • Pumping distance: 400 feet + (122 m)

  • Pumping height: 150 feet (46 m)

  • Reversible pump direction

  • Hopper capacity: 16 Gal (60.6 L)

  • Power requirements: 230V, 30A, 3-ph

  • Easy to take apart for quick clean-up and transport

Compatible Material Repair Mortar, Stucco, EIFS, Self-Leveling Underlayment, Cementitious Fireproofing
Fluid Inlet Size (in) 4.22
Fluid Outlet Size (in) 2.0
Fluid Outlet Thread Gender Male
Fluid Outlet Thread Type NPT
Material Output (bags/hr) 300
Maximum Flow Rate (GPM) 18.7
Maximum Working Pressure (MPa) 4.1
Maximum Working Pressure (psi) 600
Model ToughTek
Motor Type Electric
Overall Height (ft) 2.58
Overall Height (in) 31
Overall Length (ft) 7
Overall Length (in) 84
Overall Width (ft) 2.42
Overall Width (in) 29
Power Rating (HP) 15
Power Rating (W) 11186
Power Rating (kW) 11.19
Series P40
Type Electric Rotor Stator Pump
Weight (lb) 530
Wetted Parts Tool Steel, Painted Steel, Plated Steel, PORON
