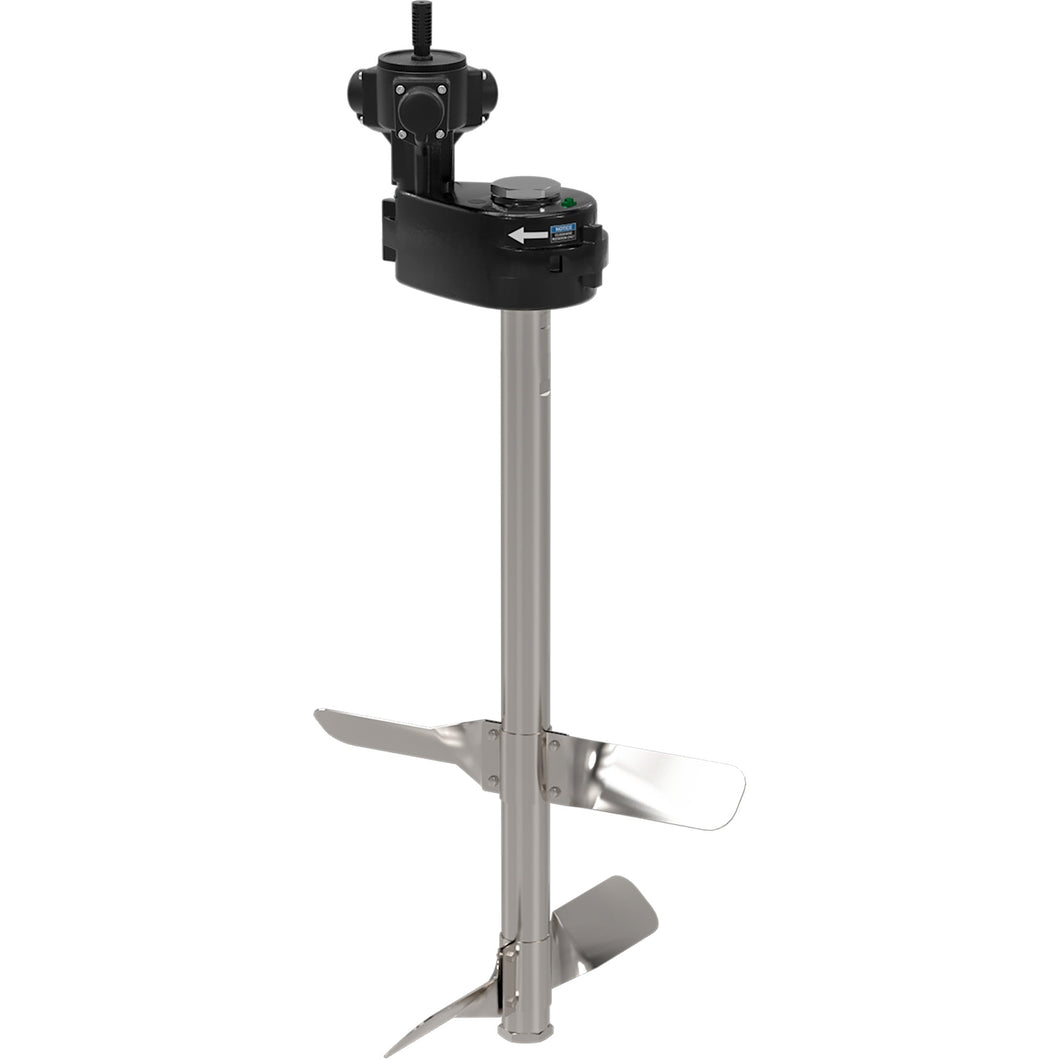

Radial piston air motor retrofit kit for back-geared agitators

Radial piston air motor retrofit kit for back-geared agitators

Regular price
$3,220.00
Sale price
$3,220.00
Quantity must be 1 or more


By upgrading back-geared agitators with radial piston air motors, factory paint mix rooms can cut compressed air costs by up to 85 percent.

For agitating high viscosity (500 to 3000 cP) material

  • Installs quickly for immediate cost savings
  • Needs no air line lubrication needed to keep running well
  • Operates more quietly than comparable rotary vane agitator air motors
  • Connect with Graco’s Intelligent Paint Kitchen (IPK) to monitor and the control agitator speed.
UPC Product: 00769946181616
Family Code: FAMQFP
Unit of Measure: EA
Height: 15.25 IN   |  38.735 CM
Length: 15.25 IN   |  38.735 CM
Width: 12.5 IN   |  31.75 CM
Volume: 1.682 FT3   |  .048 M3
Chargeable Weight: 20.4 LBS  | 9.25 KG

Technical Specifications

Air Inlet Size (cm) 0.635
Air Inlet Size (in) 1/4
Air Inlet Size (mm) 6.35
Air Inlet Thread Type NPT
For Use With 55 加仑(208 升)料桶, 55 Gallon (208 Liter) Drum, 208 litre (55 gallon) drum, Fût de 208 litres (55 gallons), Bidón de 55 galones (208 litros), Fass mit 208 Litern (55 Gallonen), 55 gallon (208 liter) vat
Maximum Air Inlet Pressure (bar) 5
Maximum Air Inlet Pressure (kPa) 500
Maximum Air Inlet Pressure (psi) 70
Maximum Speed (RPM) 83
Maximum Viscosity (cP) 3000
Maximum Working Pressure (bar) 5
Maximum Working Pressure (kPa) 500
Maximum Working Pressure (psi) 70
Motor Type Pneumatic - Radial Piston
Power Rating (HP) 0.16
Weight (kg) 14.1
Weight (lb) 31.1
Wetted Material Stainless Steel, Acetal, AF, Nylon, PTFE
Type Conversion Kit
